883-M10X1-20-B-MS GN 883 Soupapes de reniflard

883-M10X1-20-B-MS

GN 883 Soupapes de reniflard

Laiton
  • Icons/__logo__g20030__.png
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de GN 883

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 883-M10x1-20-B-MS
d1
M 10 x 1
Opening pressure
in mbar
min.
20
Opening pressure
in mbar
max.
80
d3
12.5
e2
18.5
l3
8
l4
7
l5
16
A/F
17
Ca. air passage
l/min.
18
19
883-M10X1-20-B-MS drawing

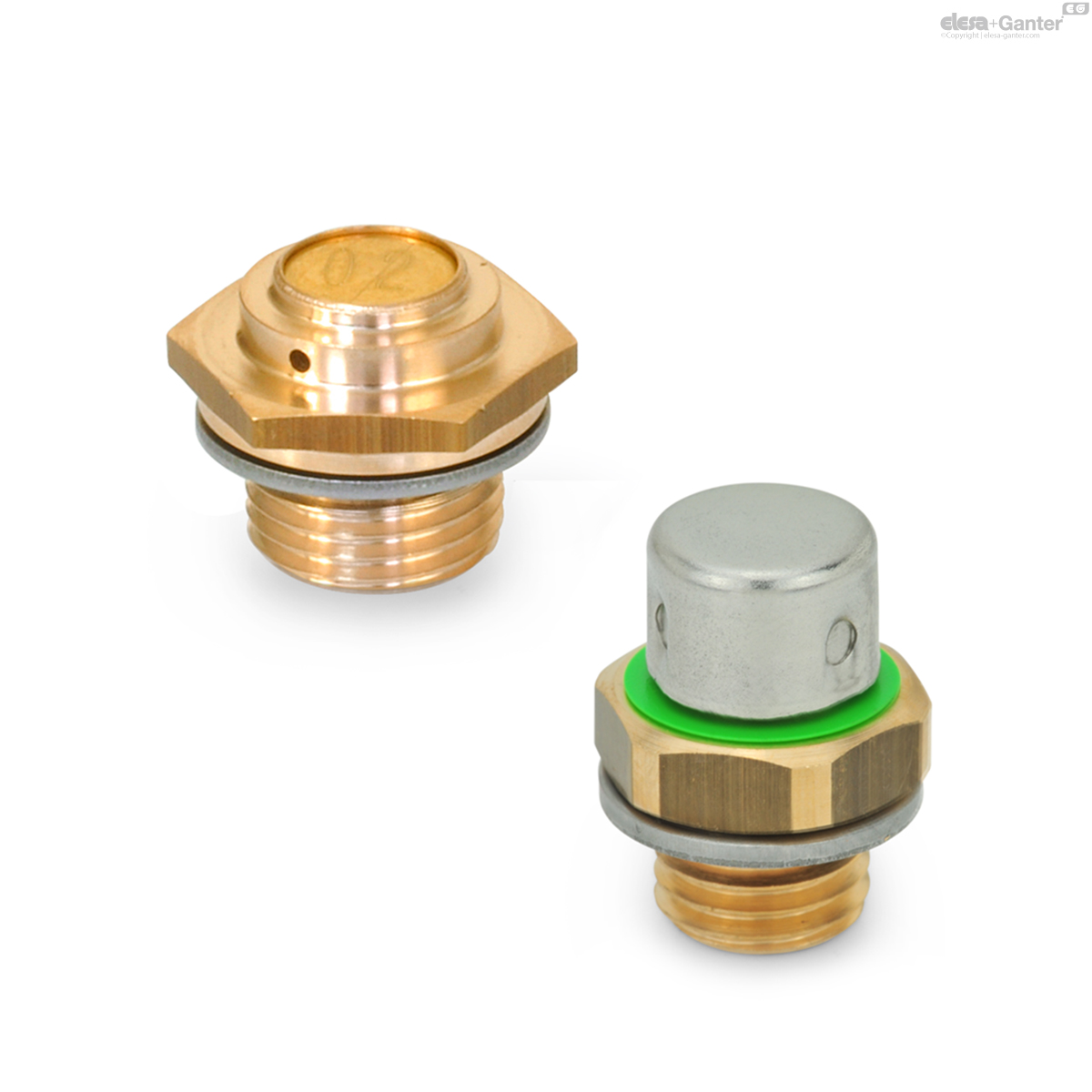

Types

  • Type A: Low design
  • Type B: High design, with stainless steel cap

Valve body

Brass MS

Ball

Steel AISI 5210

Spring

Stainless Steel AISI 301

Seal DIN 7603 A

Soft iron 1.0338

(for d1 = M10 x 1:PA6)

Breather cap (Type B)

Stainless steel AISI 304

Temperature resistant from -30 °C to +200 °C

Once the opening pressure given in the table is exceeded, GN 883 breather valves will vent into a container and so protect against excessive inside container pressure. They also feature highly compact dimensions.

A coding (Type A) or a color ring (Type B) in yellow (20 - 80 mbar) or green (160 - 240 mbar) indicates the different opening pressure ratings.

The simple function principle (pressure spring / ball) ensures long and trouble-free use of the valve acting to one side. The installation position is vertical to the top.
