826-50-B12-S-ELS GN 826-S Vis de serrage avec hexagone interne

826-50-B12-S-ELS

GN 826-S Vis de serrage avec hexagone interne

pour broches réglables
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de GN 826

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 826-50-B12-S-ELS
d1
50
d2 H9
B 12
d3
5.3
b
16
m
36
l1
30
l2 max.
56
l3 max.
32
83

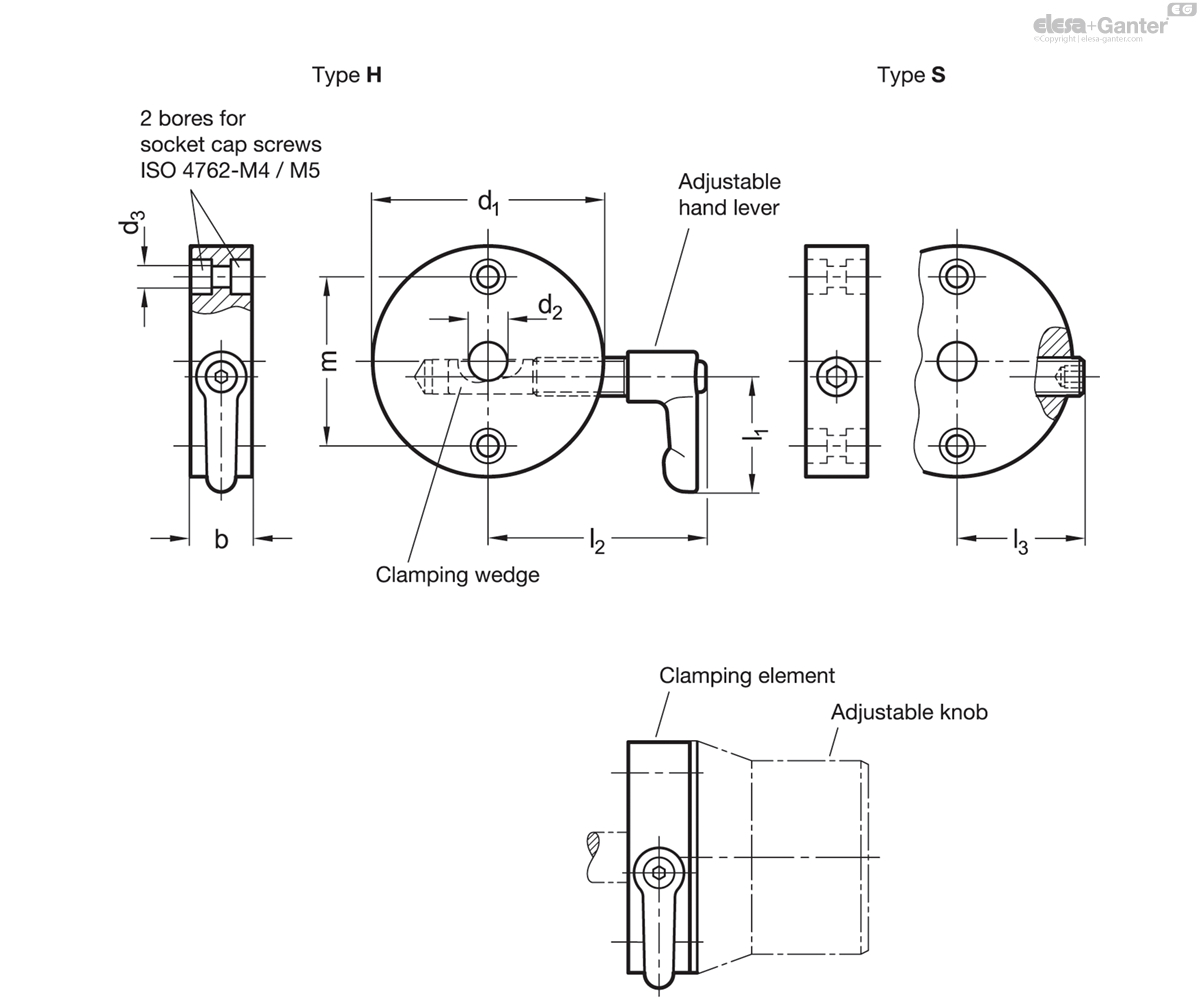

826-50-B12-S-ELS drawing

Types

  • Type H: Clamping screw with adjustable handle
  • Type S: Clamping screw with internal hex

Clamping Element

Aluminum

Anodized, black ELS

Wedge

Brass

Adjustable hand lever for type H

Zinc die casting

  • Powder coated
  • Black, RAL 9005, textured finish
  • With setting screw
  • Stainless steel AISI 303

Clamping screw for type S

Stainless steel AISI 303

Clamping elements GN 826 are normally used in connection with control knobs and smaller handwheels.

Spindles can so be clamped gently and easily and without much construction and installation effort. The clamping wedge stiffens the spindle, e.g., to prevent maladjustments caused by vibrations or to secure the spindle after adjustment.

This clamping element can also be used to store the spindle.

The clamping element may be mounted such that the clamping lever / the clamping screw is positioned either on the left or the right hand side.

Indicator arrows which can be attached to the circumference of the clamping element are found under GN 711.1.

  • GN 711.1 Indicator Arrows (self-adhesive)
