50.5-ND-63
GN 50.5 Aimants de retenue
Délai: 1-2 semaines Toutes les tailles et variantes de GN 50.5
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 50.5-ND-63
- d1
- 63 ±0,1
- d2
- M 10
- d3
- 11.7
- h
- 14 ±0,2
- t
- 8.5
- Nominal adhesive forces in N
- 1100
- 330
Housing
Steel, zinc plated
Material of the magnet
NdFeB ND
Neodymium, iron, boron
Temperature resistant up to 80 °C
Plastic cover
Technopolymer (Polyamide PA)

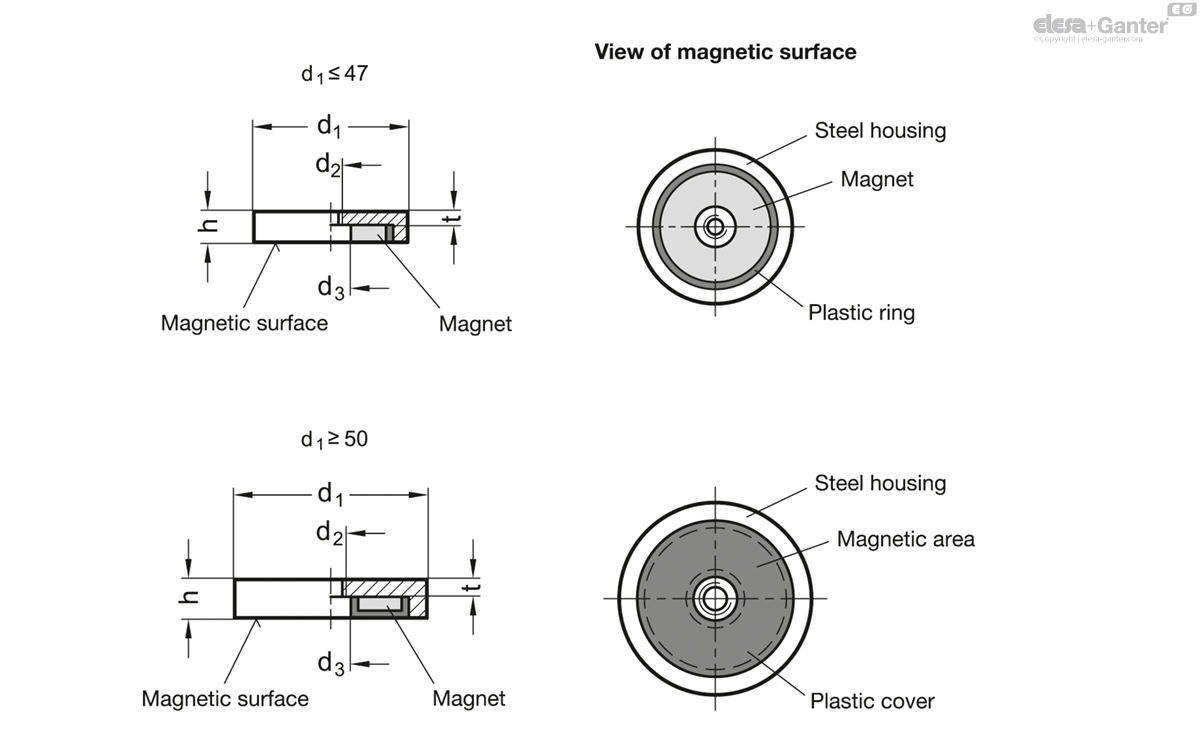

Retaining magnets GN 50.5 are combined with a steel housing and a plastic ring and the plastic cover into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
For diameter d1 ≥ 50 the adhesive surface is lagged with an all over plastic cover.
To ensure that the magnetic properties are not impaired negatively, the fixing screws should be made of non-magnetic material , like for example stainless steel, brass or plastic.
