GN 214.3 Broches de centrage en inox
Délai: 1-2 semaines Toutes les tailles et variantes de GN 214.3
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 214.3-12-35
- d1 -0.1
- 12
- l1 +0.4
- 35
- a
- 3.8
- b
- 1
- d2
- 14 +1
- d3
- 11.9
- d4
- 16
- d5
- 28
- l2
- 11.3
- l3
- 42
- Load in kN ≈
(Double sided
shear force)
see information - 75
- 58
Pin
Stainless Steel AISI 303
Slide / Push button
Plastic
temperature resistant up to 80 °C
red
Pawl
Stainless Steel sheet metal AISI 304
Lifting ring
Stainless Steel AISI 301
Spring
Stainless Steel AISI 301

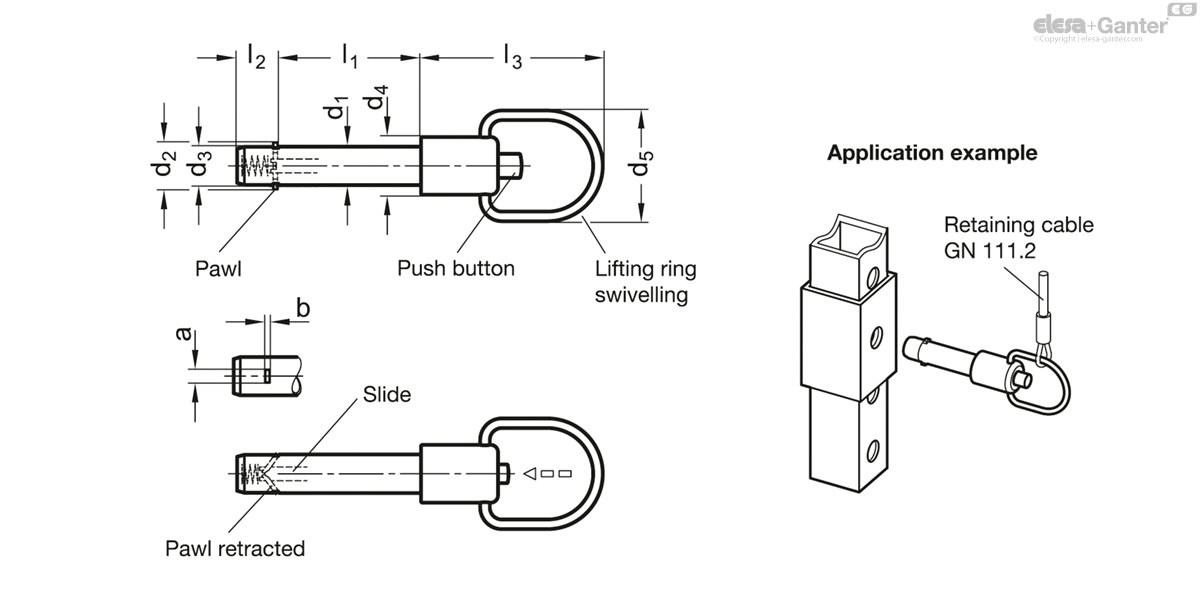

Stainless Steel-Locking pins with axial lock GN 214.3 are used for quick fixing, connecting and locking of various jig and fixture systems. A typical application is location pins which have to be often removed and re-placed again.
The rectangular pawls made of Stainless Steel sheet metal keep the locking pin in an axial position in the bore. It can be retracted by pressing the button, once released it returns the pressure spring into its locking position.
The version with swivelling lifting ring is ideal for the use in confined spaces.
The load values given in the above table at shear stress are theoretically obtained and indicative only. They are non-binding recommended values and rule our any liability. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.
