51.6-ND-43-27-M5

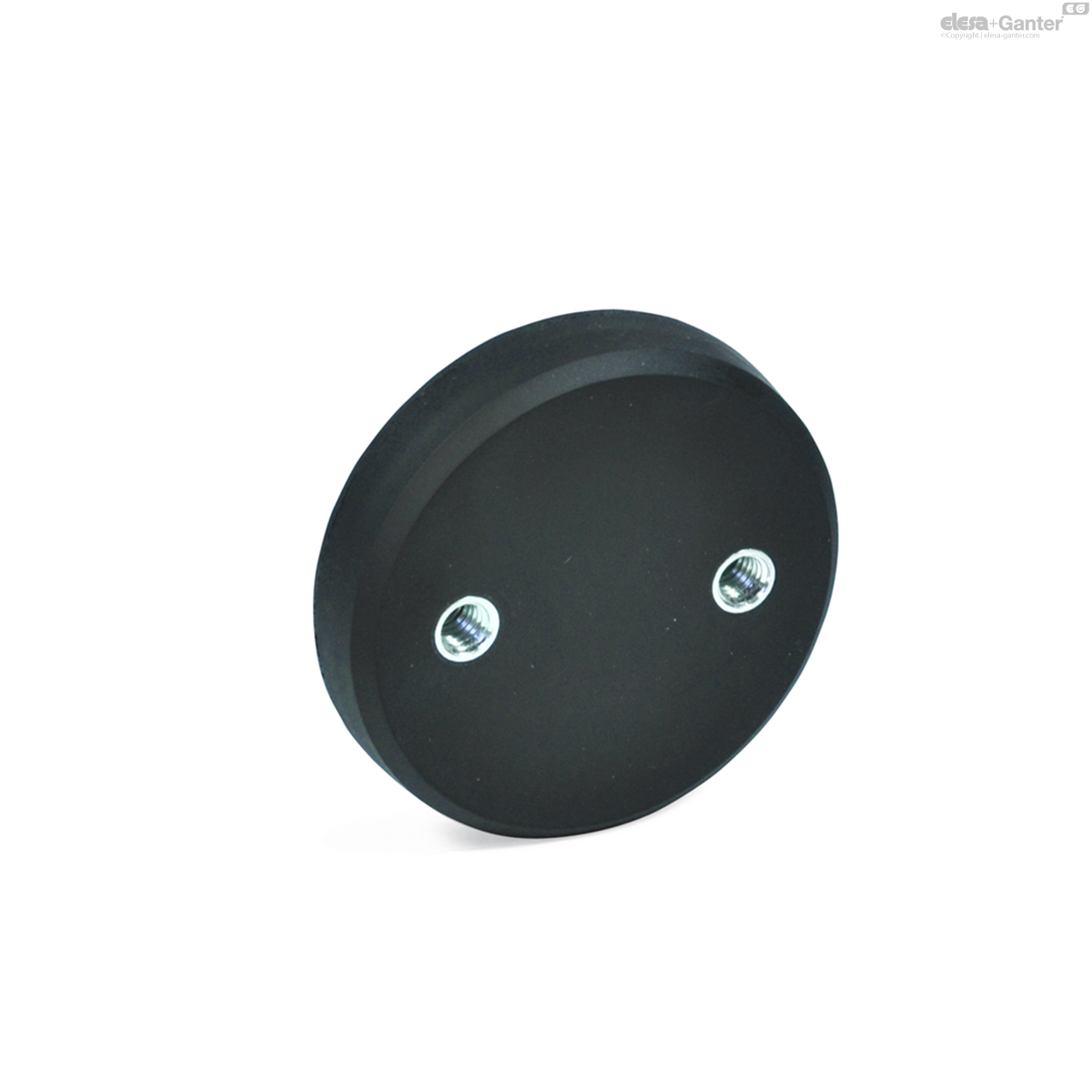

GN 51.6 Aimants de retenue
Délai: 1-2 semaines Toutes les tailles et variantes de GN 51.6
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

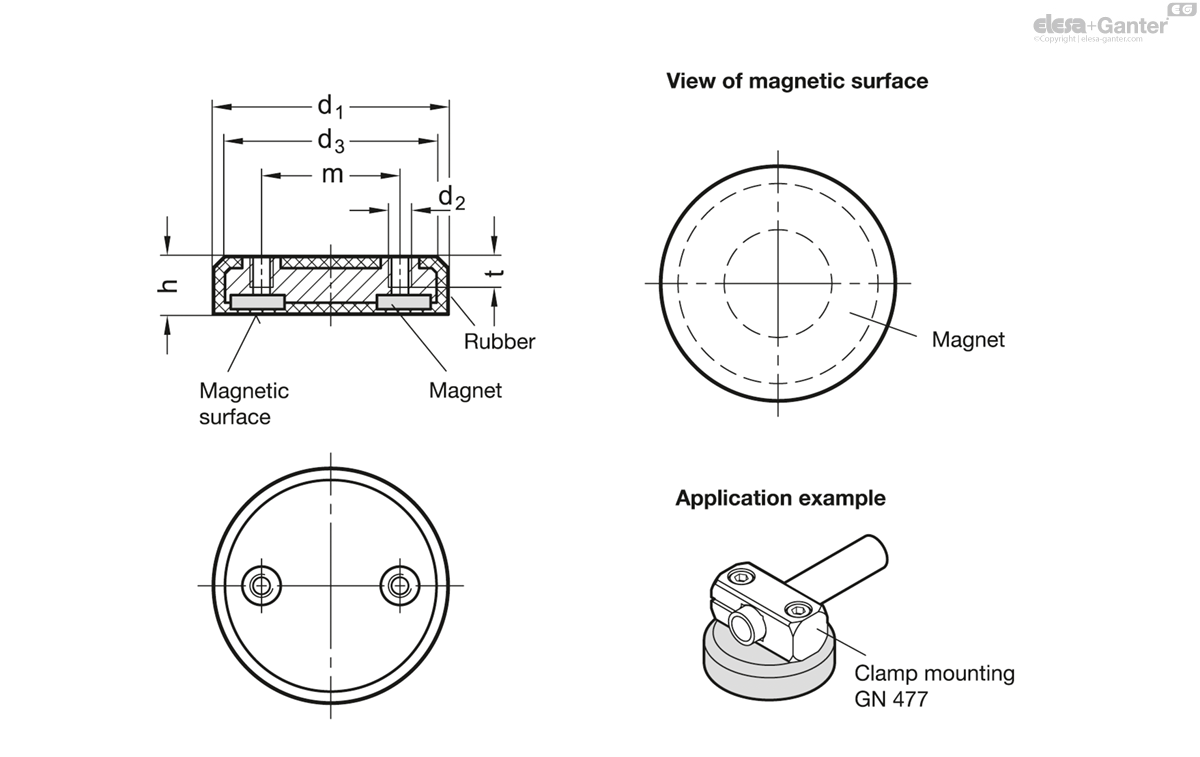

Caractéristiques techniques
- Code
- GN 51.6-ND-43-27-M5
- d1
- 43
- m
- 27
- d2
- M 5
- d3
- 39
- h
- 10.3
- t min.
- 7
- Nominal adhesive forces in N
- 85
- 37
Steel part
zinc plated
Material of the magnet
NdFeB ND
Neodymium, iron, boron
temperature resistant up to 80 °C
Rubber jacket
Elastomer (TPE)
80 shore A ≈
black
Retaining magnets GN 51.6 are a shielded magnetic system with rubber jacket.
The rubber jacket protects sensitive surfaces from being damaged by the magnet and also delivers a higher friction coefficient, resulting in high lateral adhesion forces.
Its dimensions, especially the drill hole spacing m and the thread d2, match the clamp mountings GN 473, GN 477 and GN 480.
