350.3-105-ST
GN 350.3-ST Acier
Acier / Acier inoxydable
Délai: 1-2 semaines Toutes les tailles et variantes de GN 350.3
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 350.3-105-ST

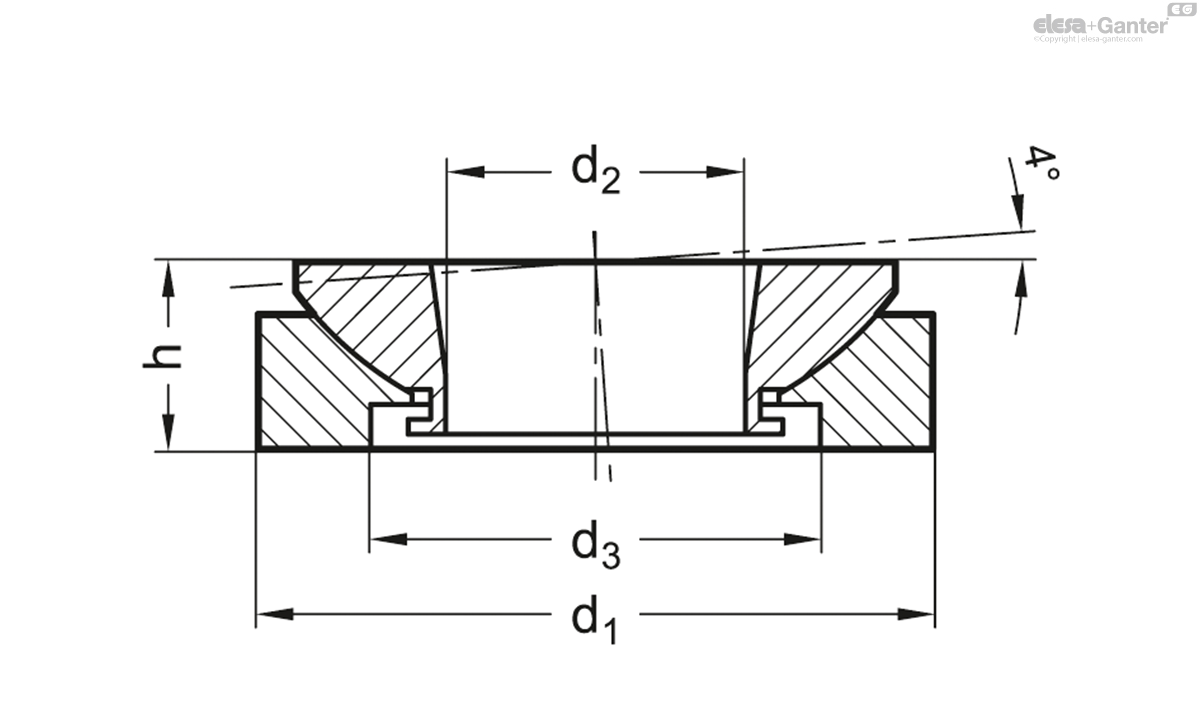

- d1
- 105
- d2
- 58
- d3
- 78
- h ±0.5
- 25
- for thread
up to max. - M 48
- Static load
in kN - 920
- 940
Steel 1.7225 (42 CrMo 4 V) ST
Zinc plated, blue passivated
Stainless steel AISI 303 (X 10 CrNiS 18-9) NI
Spherical leveling washers GN 350.3 have been designed to match the leveling sets GN 350, GN 350.1, GN 350.2and GN 350.5.
The two spherical washers are used together „undetachably“.
The load bearing capacity of these spherical washers is relatively high. This is not only due to the material quality but also to the matched sphere of the concave „pan“.
Furthermore it is recommended using high-strength washers for bridging d2.
