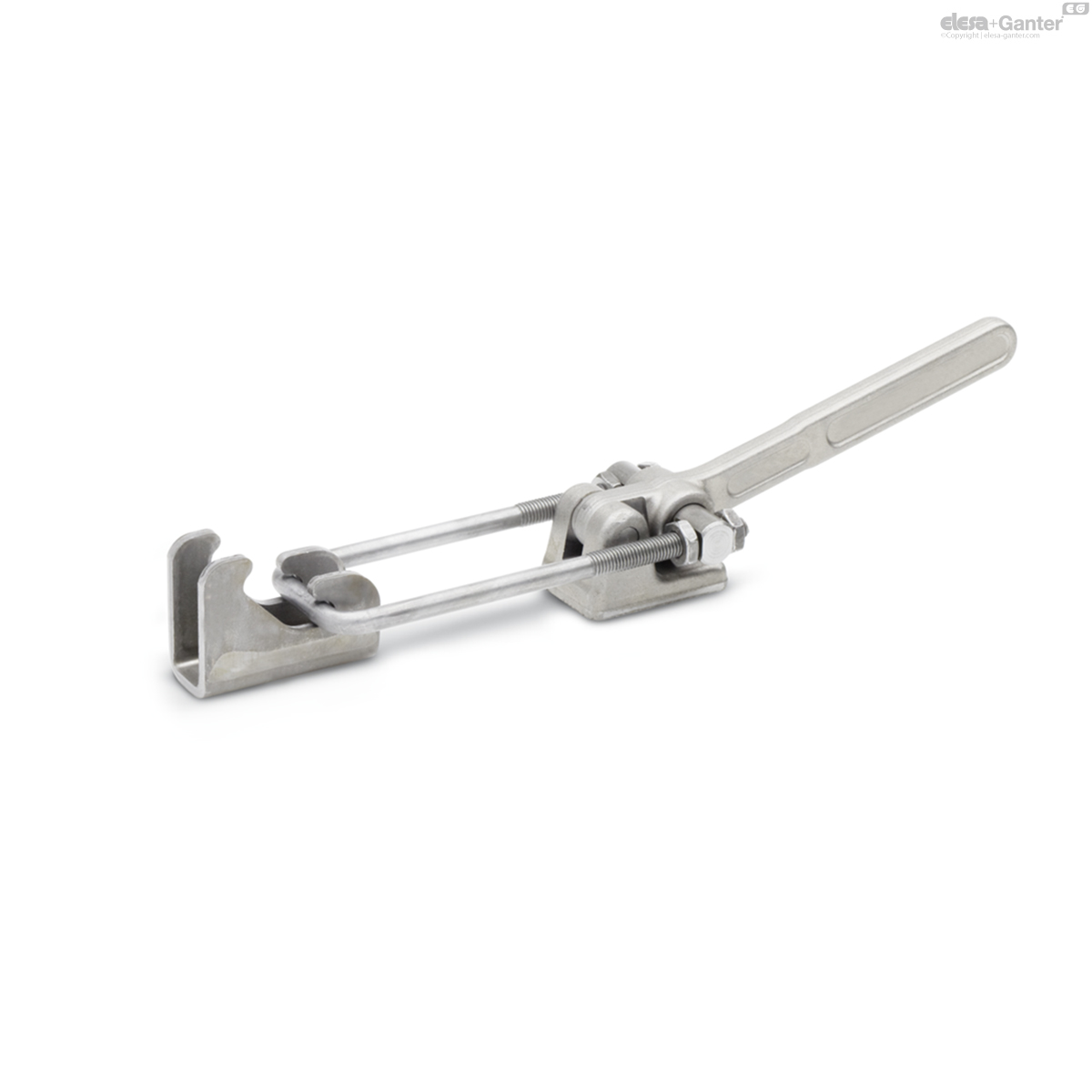

GN 854 Sauterelles à loquet
Délai: 1-2 semaines Toutes les tailles et variantes de GN 854
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

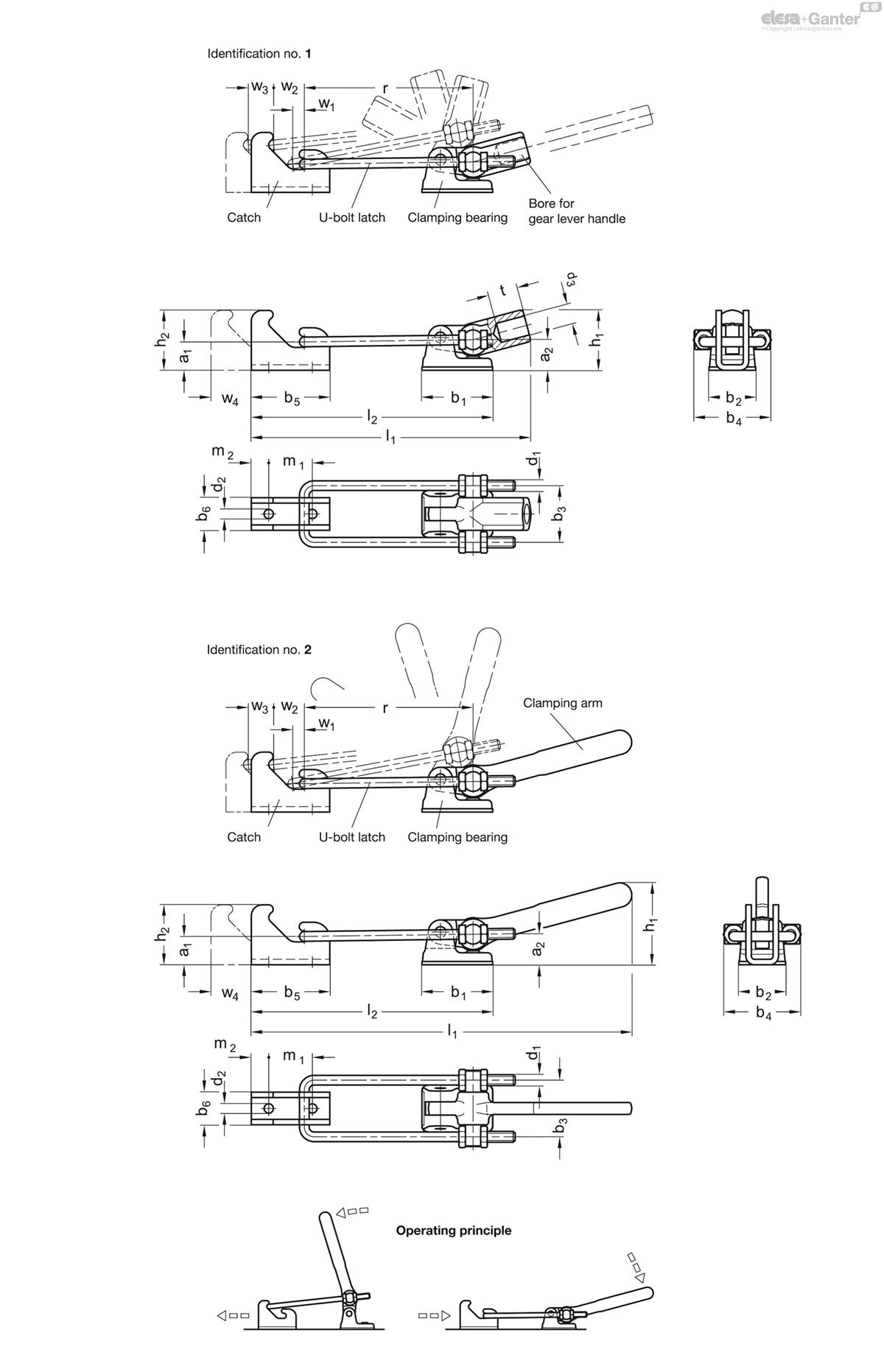

Caractéristiques techniques
- Code
- GN 854-1500-1-T2S
- Size
- 1500
- FH in N
- 15000
- a1
- 26
- a2
- 28
- b1
- 65
- b2
- 43
- b3
- 52
- b4
- 70
- b5
- 72
- b6
- 30
- d1
- M 10
- d2
- 8.5
- d3
- 18
- h1 ≈
- 55
- h2
- 55
- l1 ≈
- 220
- l2 min.
- 186
- m1
- 40
- m2
- 16
- r
- 120
- t
- 30
- w1
- 10.5
- w2
- 28
- w3 ≈
- 25
- w4 ≈
- 40
- 1200
Type
- Type T2S: for welding
Codings
- Coding 1: with bore for gear lever handle
- Coding 2: with clamping arm
Clamping bearing / clamping arm
Steel
- forged
- weldable
- blank
U-bolt latch / bearing pins
Steel St 37
blank
Catch
Sheet metal steel
blank
The outstanding feature of GN 854 latch type toggle clamps is their highly robust, sturdy and compact design, allowing their use under demanding conditions, e.g. exposure to high temperatures, dust, spray mist, etc.
The specially designed catch allows the forced loosening of the clamping by the clamping arm moving the U-bolt latch forward, e.g. for separating mould halves.
Latch type toggle clamps with bore (coding 1) are operated with a gear lever handle which is plugged into the latch and pulled off after operation. This saves space and has the added advantage that the gear lever handle is not exposed to adverse ambient conditions, e.g. becoming too hot to operate. The gear lever handle is not included in the delivery.
The catch can also be attached using screws or bolts.
If required, clamps and U-bolt latches are also available as separate parts; for replacement, the bearing pin is easily dismantled.
