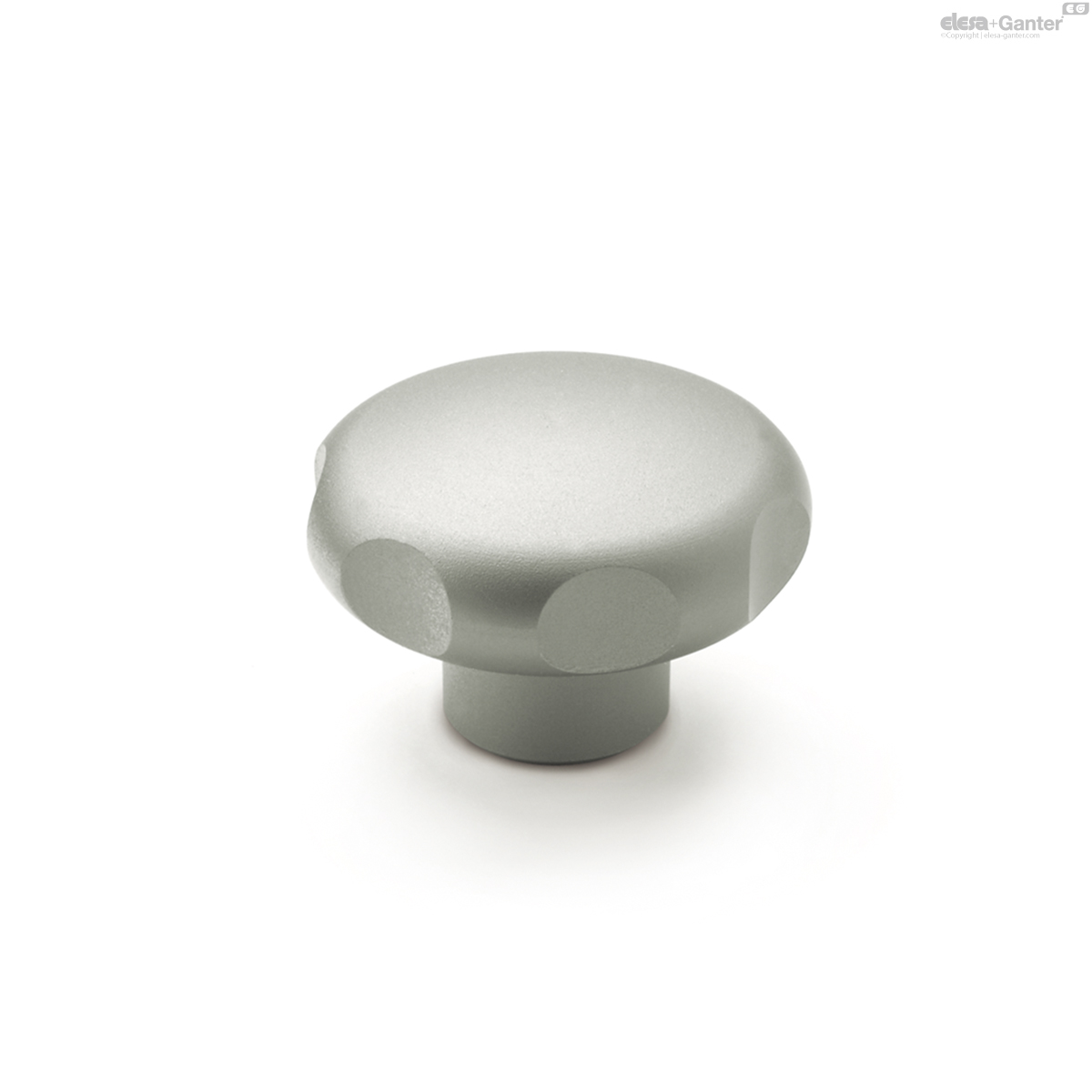

5335-40-M6-D-PL
GN 5335 avec filetage femelle
Acier inoxydable AISI 303 (A1)
Délai: 1-2 semaines Toutes les tailles et variantes de GN 5335
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 5335-40-M6-D-PL
- d1
- 40
- d2
- M 6
- d4
- 18
- h1
- 30.5
- h2
- 15
- t2
- 13
- 160
Version with female thread:
Types
- Type A: without bore
- Type E: with threaded blind bore
- Type D: with threaded through bore
- Type C: with plain blind bore H7
Stainless Steel AISI 303
- matt shot-blasted
- highly polished PL (only type D and E)
Version with threaded bolt:
Stainless Steel AISI 303
- matt shot-blasted
Stainless Steel-Star knobs GN 5335 are a special development intended for the food processing machinery industry. The smooth and enclosed areas as well as the large corner radii comply with the requirements of hygiene standards.
