1804.1-M30X1,5
GN 1804.1-ST Acier
Acier / acier inoxydable, autofreiné, avec bague en polyamide
Délai: 1-2 semaines Toutes les tailles et variantes de GN 1804.1
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques

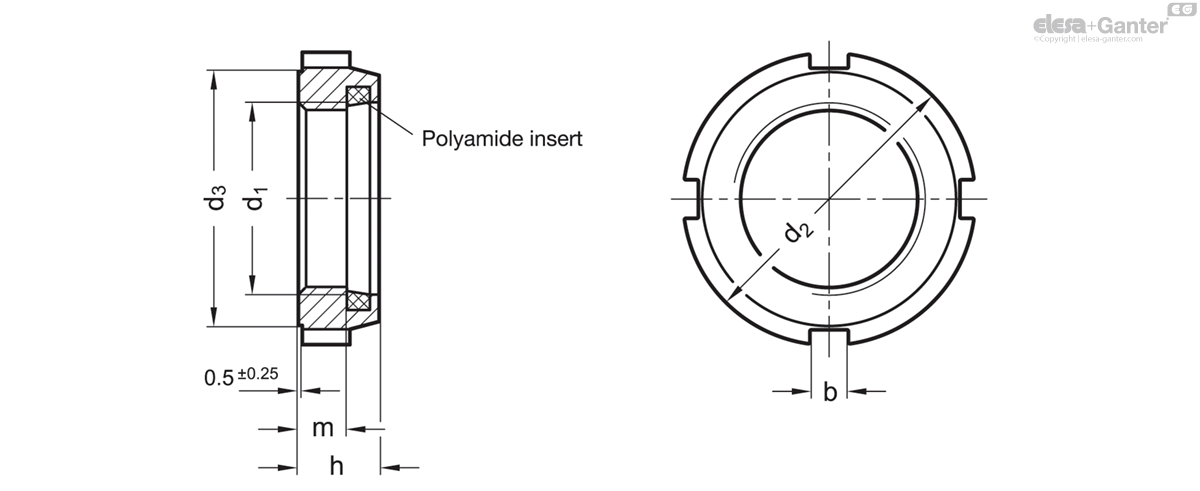

- Code
- GN 1804.1-M30x1,5
- d1 6H
- M 30 x 1.5
- d2
- 44
- d3
- 38
- b
- 5
- h
- 11
- m
- 6.5
- Number of slots
- 4
- C-Spanner
- DIN 1810-A45-50
- 45
Nut
Nut
- Steel
- Property class 5
- Zinc plated, blue passivated
- Stainless steel AISI 304 NI
Insert
Insert
Plastic, polyamide (PA)
Operating temperature -30 °C to +90 °C
Slotted locknuts GN 1804.1 are self-locking owing to their polyamide insert. They can therefore also be used as a setting nut and may be used more than once.
The thread series largely corresponds to roller bearing slotted locknuts according to DIN 981. The additionally available dimensions listed above cover typical thread sizes used in machine and device construction.
- DIN 1810 C-Spanner (Code no. see table)
