MPG-R-S
Pour guides rectangulaires
Technopolymère et acier inoxydable
Délai: 1-2 semaines Toutes les tailles et variantes de MPG-S
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- 419827
- 69
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Standard executions
AISI 304 stainless steel screws and nuts.
- MPG-C-S: housings for round guides, without pin.
- MPG-C-S-P: housings for round guides with AISI 304 stainless steel pin.
- MPG-T-S: housings for standard trapezoidal guides, without pin.
- MPG-T-S-P: housings for standard trapezoidal guides with AISI 304 stainless steel pin.

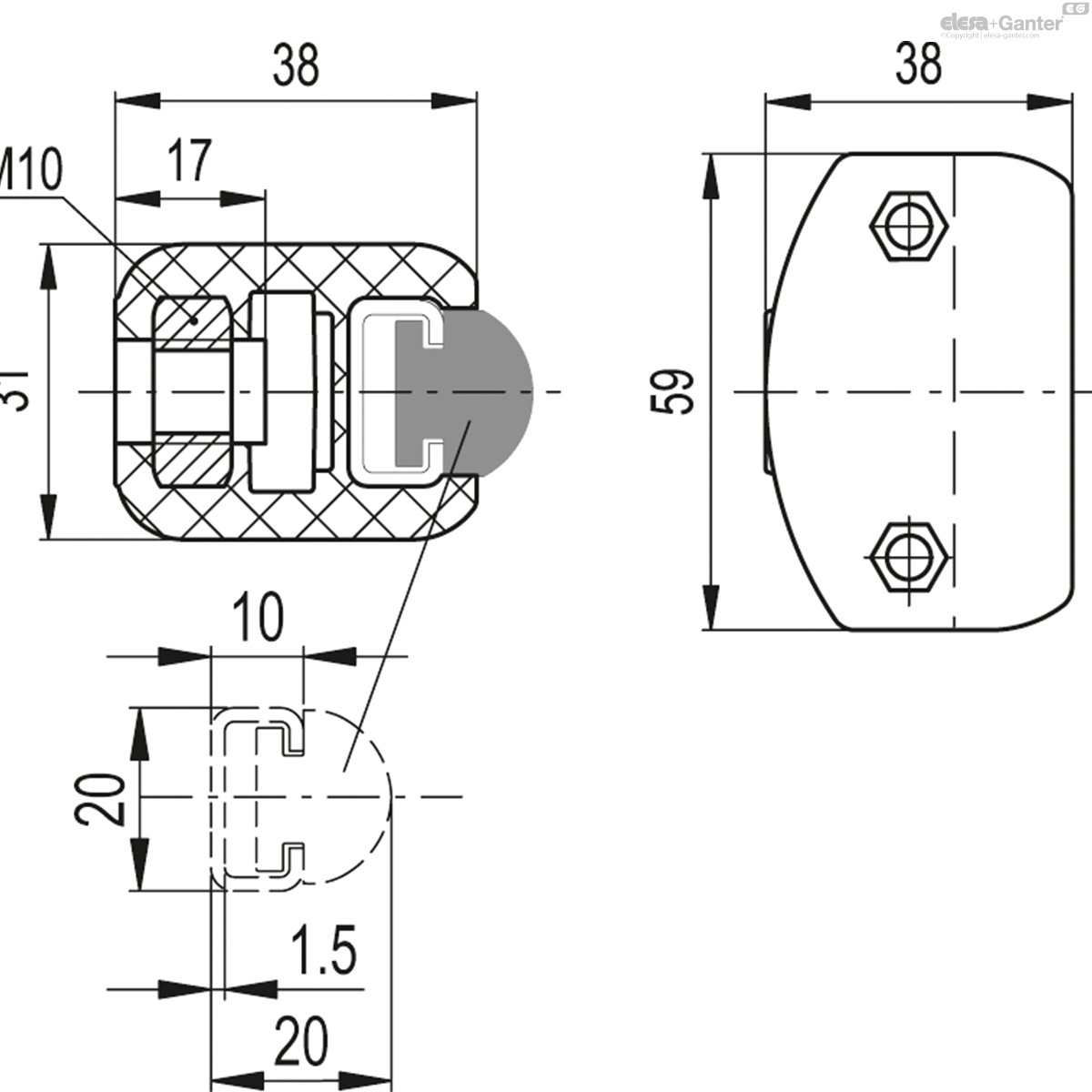

- MPG-R-S: housings for rectangular guides, without pin.
- MPG-R-S-P: housings for rectangular guides with AISI 304 stainless steel pin.
Features and applications
MPG-T-S and MPG-T-S-P executions can be used with the side guides having an AISI 304 stainless steel bracket of thickness 1.5 or 2 mm.

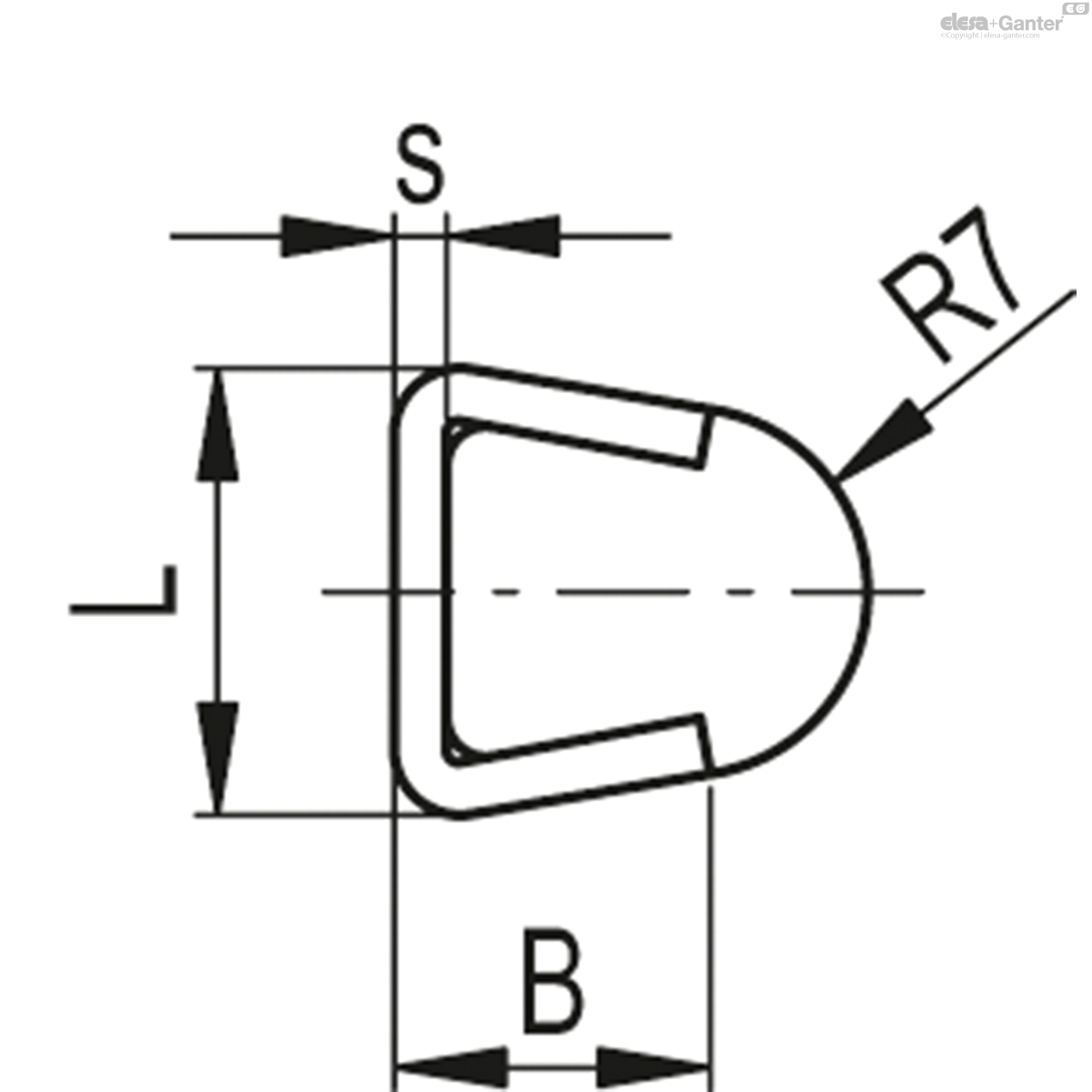

| s | B | L |
| 1.5 | 17.5 | 16 |
| 2 | 18 | 17 |
