M.843/100 B-M6-C5
M.843 Poignées de pont
Délai: 1-2 semaines Toutes les tailles et variantes de M.843
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

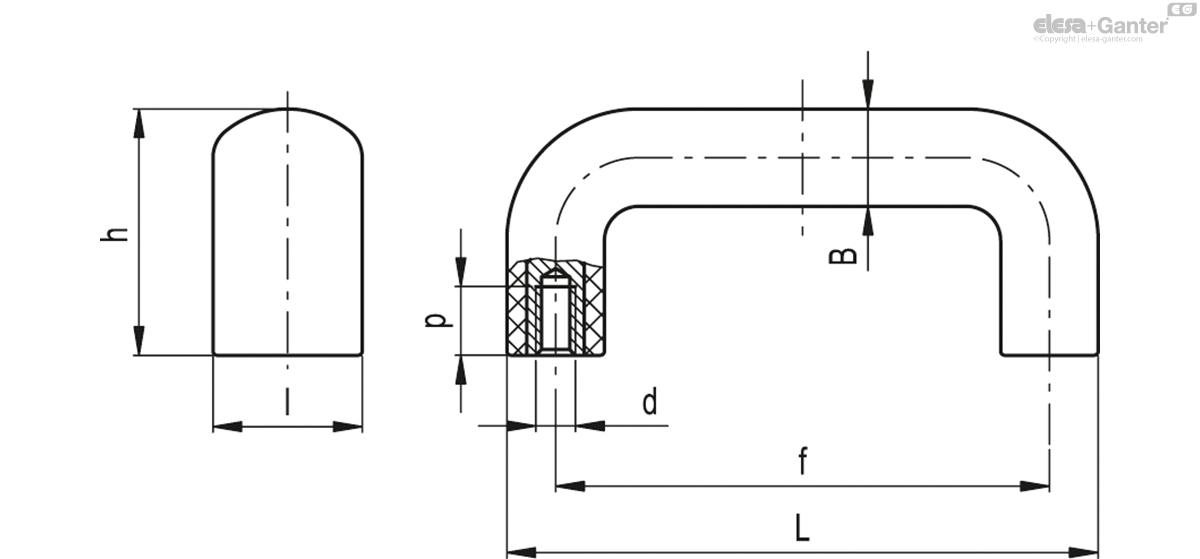

Caractéristiques techniques
- Code
- 138105
- L
- 103
- f
- 86±0.5
- d6H
- M6
- h
- 46.5
- B
- 17
- l
- 26
- p
- 12
- F1
[N] - 4000
- F2
[N] - 7000
- L1
[J] - 50
- L2
[J] - 120
- 91
Material
High-resilience polyamide based (PA) technopolymer,in Elecolors colours, glossy finish.
Standard execution
Brass bosses, threaded holes.
Features
This handle is particularly suitable to be produced in light colours: the glossy finish guarantees perfect cleaning. Its solid shape without cavities prevents unhealthy residues from depositing.
Technical data

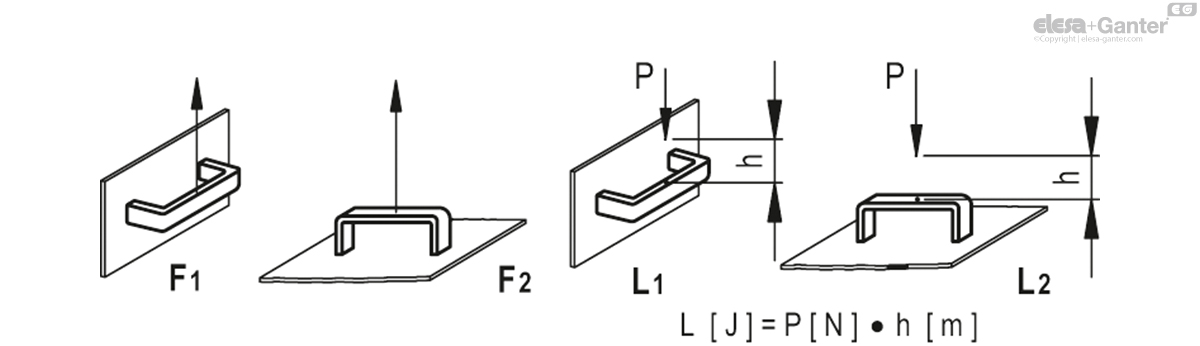

Tensile stress and impact strength: the values F1, F2, L1 and L2 indicated in the table were obtained during breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
The tests have revealed that the special technopolymer used can absorb very strong shocks, with no damages, thanks to its high-resilience.
