920.2-29-32-M8 GN 920.2 Plaques rabattables
pour pinces à clapet GN 920.1, acier
Délai de livraison prévu 5-7 jours ouvrables
Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 920.2-29-32-M8
- l1
- 29
- l2
- 32
- d1
- M 8
- a max.
Type GA
Type GL - 44.5
- a min.
Type GA
Type GL - 39.5
- a max. Type RF
- 39.5
- a min.
Type RF - 34.5
- b
- 25
- d2 Ø
- 18
- h1 ≈
- 27.5
- h2
- 4
- l3 max.
- 7.5
- for wedge clamps
GN 920.1 with:
d - M 8
- for wedge clamps
GN 920.1 with:
b - 25
- 76
Plate
Plate
Steel
Blackened
Socket cap screw ISO 4762
Socket cap screw ISO 4762
Steel
Distance sleeve
Distance sleeve
Steel

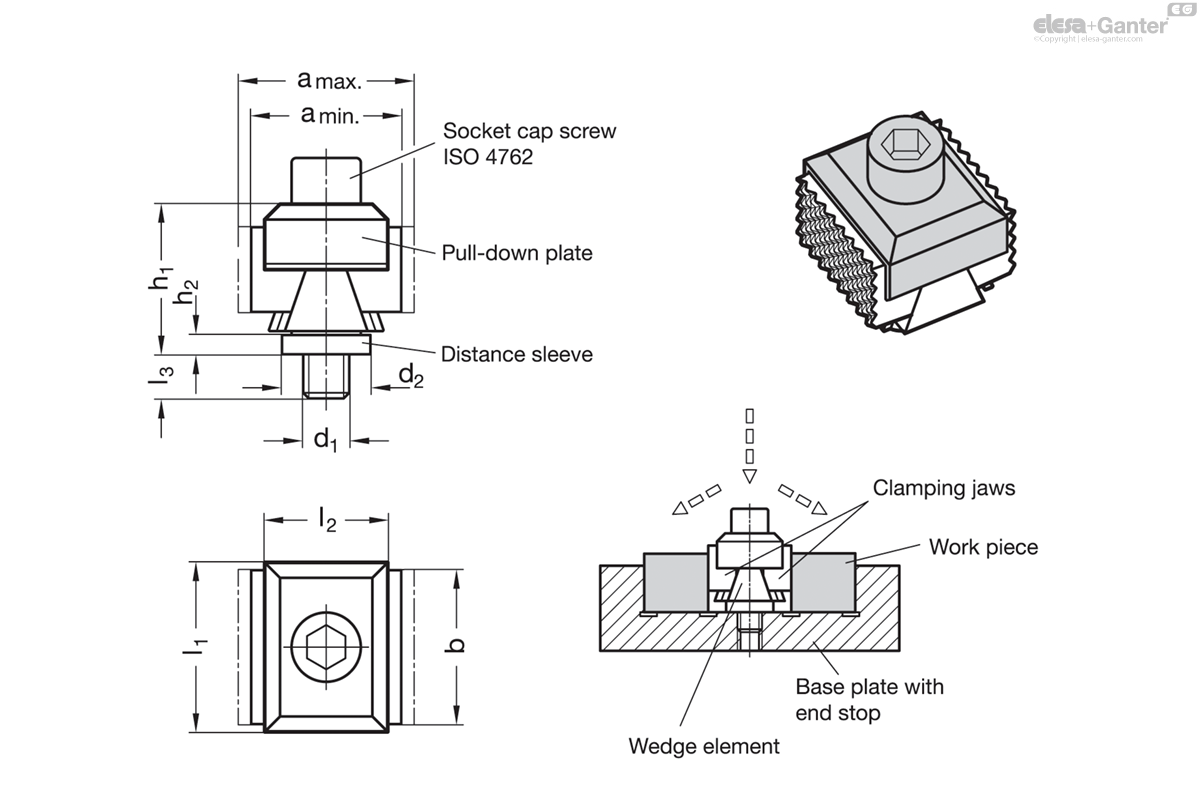

Pull-down plates GN 920.2 allow wedge clamps GN 920.1 to clamp easily with pull-down effect.
The socket cap screw ISO 4762 and the distance sleeve are included.
The information in the operating instruction must be observed during installation, initial operation, and use. It is enclosed with the product and is provided digitally on the product page at elesa-ganter.com.
