820.2-230-MF GN 820.2 Acier

820.2-230-MF

GN 820.2 Acier

Acier / Acier inoxydable , avec base de montage verticale
  • INOX
  • RoHS
  • SPEEDYBLOCK

Délai: 1-2 semaines Toutes les tailles et variantes de GN 820.2

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 820.2-230-MF
Size
230
Fh in N
1700
a ≈
37
b1
43
b2
40
b3
8.5
d1
M 8
d2
6.5
h1
102
h2
69
h3
18
l1
195
l2
52
l3
113
m1
28.5
m2
24
m3
8
r
70
s
3
350

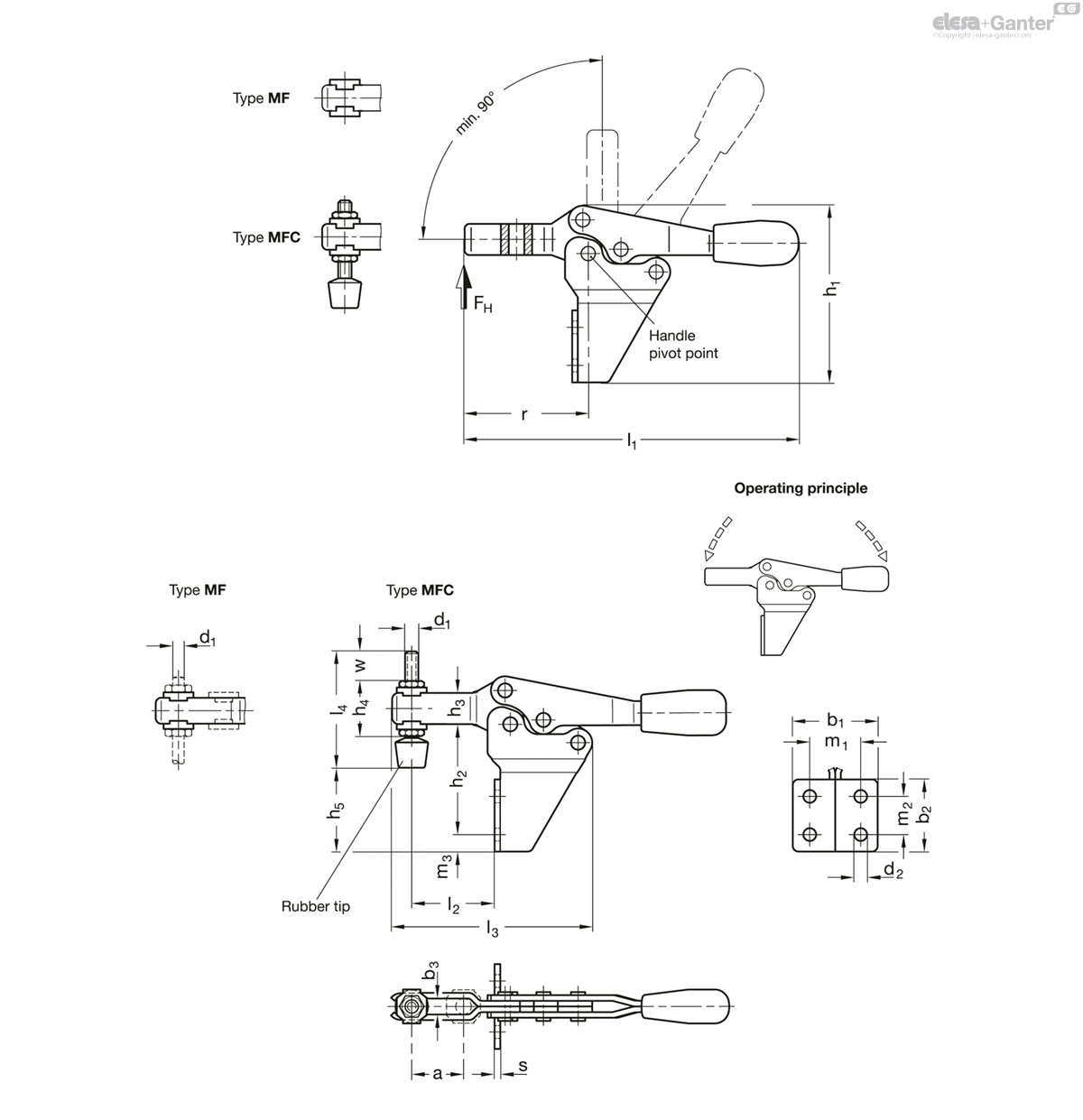

820.2-230-MF drawing

Types

  • Type MF: U-bar version, with two flanged washers
  • Type MFC: U-bar version, with two flanged washers and GN 708.1 spindle assembly

Version in Steel

  • Case-hardened Steel C10, zinc plated, blue passivated
  • Bearing pins tempered
  • Bearing rivets (for size 355 and up), case-hardened

All moving parts

lubricated with special grease

Hand grip

High quality, oil resistant red plastic

Spindle assembly GN 708.1, Type A

  • Steel, zinc plated
  • Rubber tip 85 Shore A

Version in Stainless Steel NI

Stainless Steel AISI 304

All moving parts

lubricated with special grease

Hand grip

High quality, oil resistant red plastic

Spindle assembly GN 708.1, Type A

  • Stainless Steel AISI 304
  • Rubber tip 85 Shore A

GN 820.2 horizontal acting toggle clamps work according to the toggle principle: lever and clamping bar move in the opposite direction.

They require less space for the clamping action. In the clamped position the operating lever is in its horizontal position. The 90° rotated mounting surface allows a space-saving installation in addition to the clamping point.

Horizontal acting toggle clamps in the U-bar version with two flanged washers (Type MF) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type MFC.

  • Spindle assemblies
  • GN 801 clamp mounts for toggle clamps (for Type MF)
