717-3-M6X0,75-CK-ST GN 717 Acier

717-3-M6X0,75-CK-ST

GN 717 Acier

Acier / Acier inoxydable, avec et sans position de repos
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de GN 717

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 717-3-M6x0,75-CK-ST
d1
Bore
+0.03/+0.08 Pin -0.05
3
d2
M 6 x 0,75
d4
12
e
6.9
l2
3.5
l3
12
l5 min.
10
l6
32.9
l7
7
A/F
6
Max. tightening torque
in Nm
3
Spring load in N ≈
initial
3
Spring load in N ≈
end
12
6

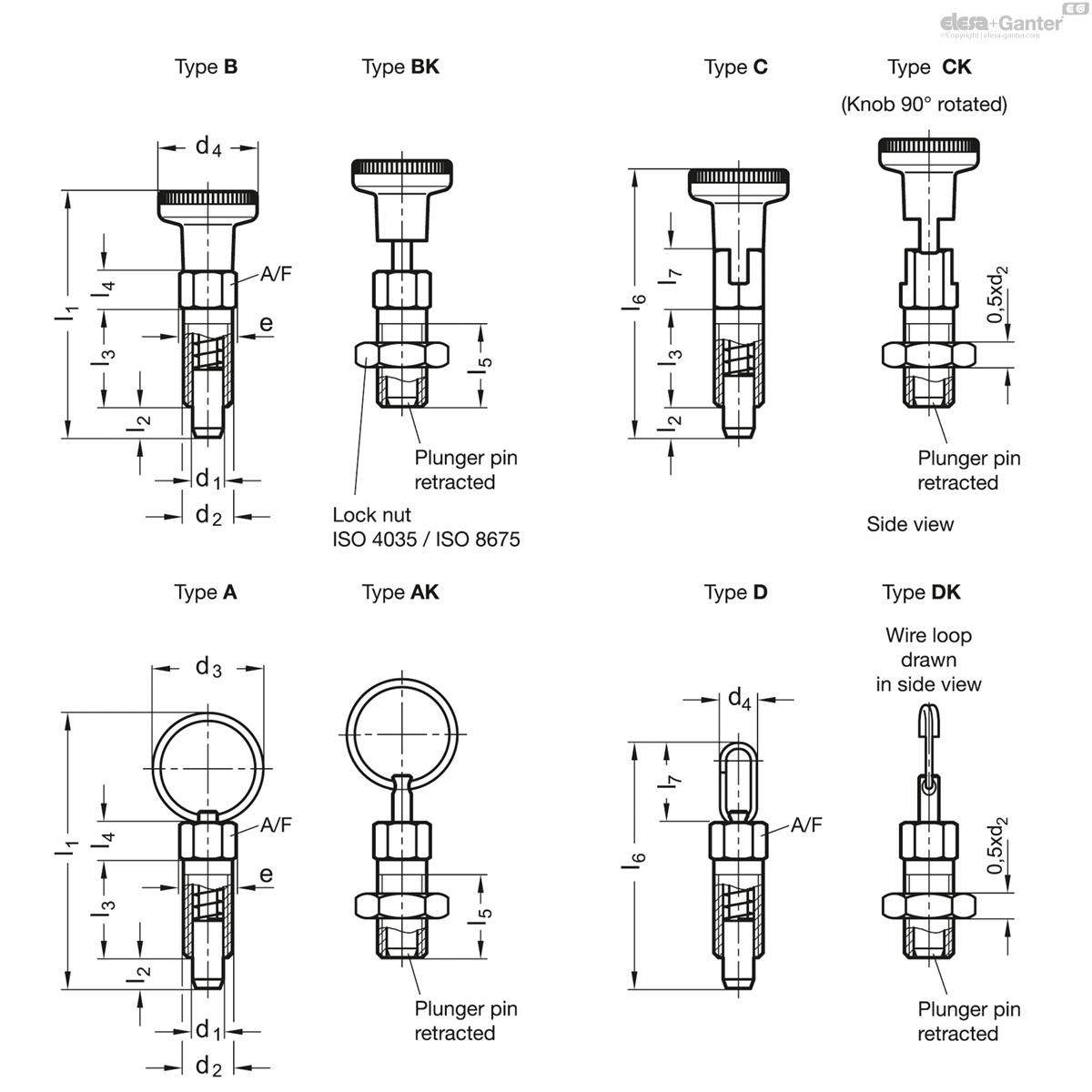

717-3-M6X0,75-CK-ST drawing

Types

  • Type A: with lifting ring, without lock nut
  • Type AK: with lifting ring, with lock nut
  • Type B: without rest position (Knob), without lock nut
  • Type BK: without rest position (Knob), with lock nut
  • Type C: with rest position (Knob), without lock nut
  • Type CK: with rest position (Knob), with lock nut
  • Type D: with wire loop, without lock nut
  • Type DK: with wire loop, with lock nut

Threaded body

  • Version in Steel zinc plated, blue passivated ST
  • Version in Stainless Steel AISI 303 NI

Pin

Stainless Steel AISI 303

Spring

Stainless Steel AISI 301

Lifting ring / Wire loop

Stainless Steel AISI 301

Knob Plastic (Polyamide PA)

  • black, matt
  • not removable

GN 717 Indexing plungers are characterized by small dimensions. These indexing plungers are universally applicable due to their prevention of misalignments and positioning errors of the mating indexing bores.

The type C / CK with rest position are used for such applications where the plunger has to stay in its retracted position.

During assembly, the max. tightening torques shown in the table should not be exceeded when securing the lock nut.
