322.7-125-B12-R
GN 322.7-B Sans rainure de clavette
Délai: 1-2 semaines Toutes les tailles et variantes de GN 322.7
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte

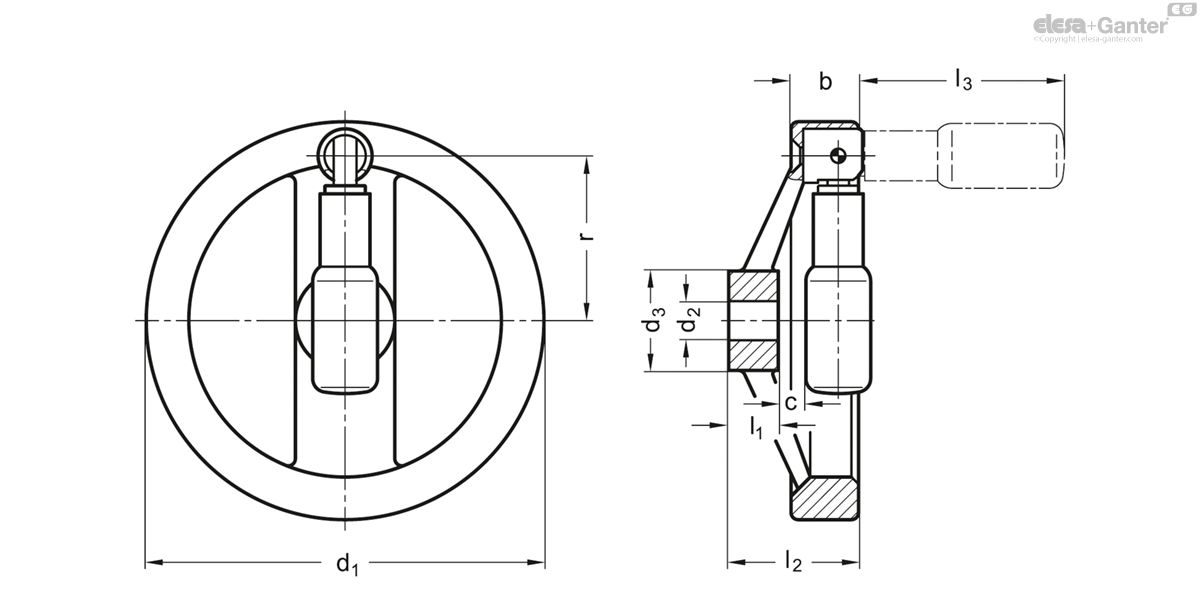

Fiche technique
Caractéristiques techniques
- Code
- GN 322.7-125-B12-R
- d1
- 125
- d2H7 Bore
- 12
- b
- 24.5
- c
- 7.5
- d3
- 31
- l1
- 18
- l2
- 44
- l3
- 61.5
- r
- 50
- Ø Handle
- 22
- 438
Bore codes
Bore codes
- Version B: Without keyway
- Version K: With keyway DIN 6885-1 P9
Type
Type
- Type R: With revolving retractable handle
Wheel body
Wheel body
Aluminum
- Hub machined
- Wheel rim
- Turned on all sides
- High-polished
- Radial and axial runout < 0,4
- Unmachined body shot-blasted
Safety Retractable Handles GN 798.7
Safety Retractable Handles GN 798.7
Plastic, Polyamide (PA)
- Black, matte
- Retracting mechanism
- Steel
- Spindle, 1.0718, blackened
- Attachment part, sintered, blackened
Handwheels GN 322.7 are suitable for applications where the handle must not remain in the operating position.
In order to bring the handle into this position it has to be turned first through 90° to a stop against a torsion spring and then it is pushed against spring pressure into its hold position. By maintaining the forward thrust on the handle the handwheel can easily be rotated.
When releasing the handle the springs returns it back to the retracted position.
- GN 184 Countersunk Washers (for Axial Fixing)
