6303.1-M12 GN 6303.1 Acier

6303.1-M12

GN 6303.1 Acier

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de GN 6303.1

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 6303.1-M12
d1
M 12
d2
40
d3
32
d4
13
h
24
k
16
179

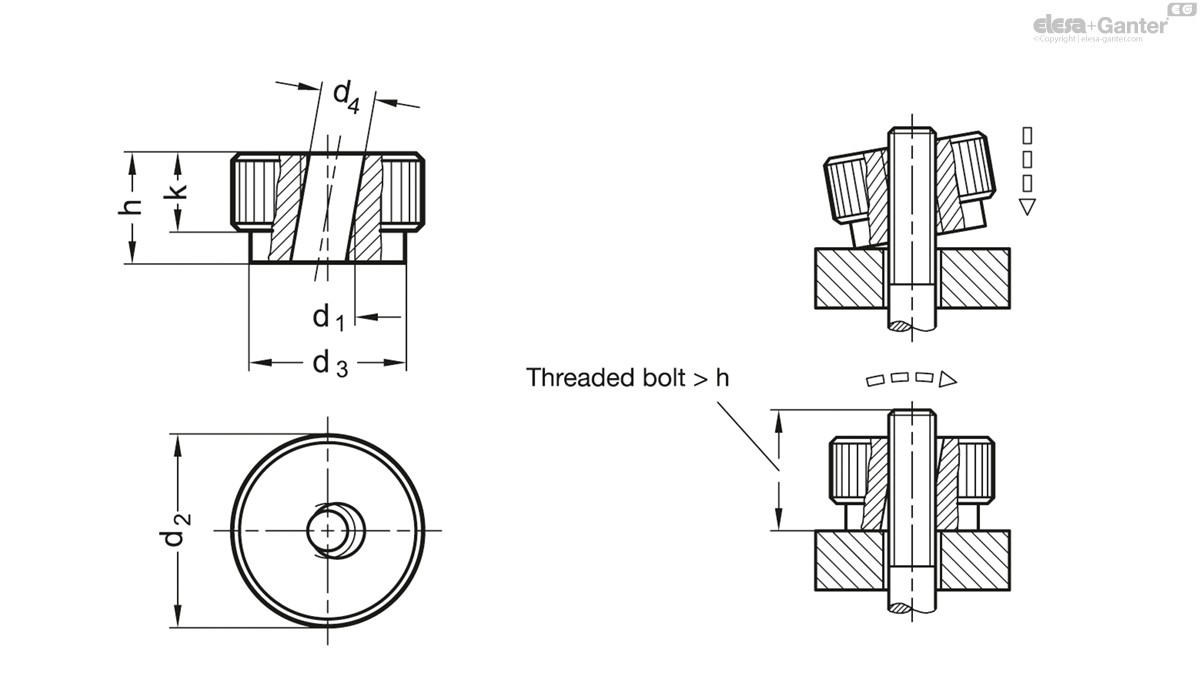

6303.1-M12 drawing

Version in Steel

  • Tensile strength class 5
  • blackened

Version in Stainless Steel AISI 303 NI

  • matte shot-blasted

Quick release knurled nuts GN 6303.1 are used in such applications where the nut has to be completely removed after the releasing operation and re-fitted rapidly for re-clamping.

The nut is tilted over the threaded spindle. When in position, the nut is brought into a straight position for meshing of the two threads on nut and spindle. The nut will then have to be turned only by a fraction of a rotation to achieve clamping.

Functional safety exists only if the clamping surface lies at a right angle to the threaded bolt.
