111-200-24
GN 111 Chaînes à billes
Laiton, avec deux porte-clés
Délai: 1-2 semaines Toutes les tailles et variantes de GN 111
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte

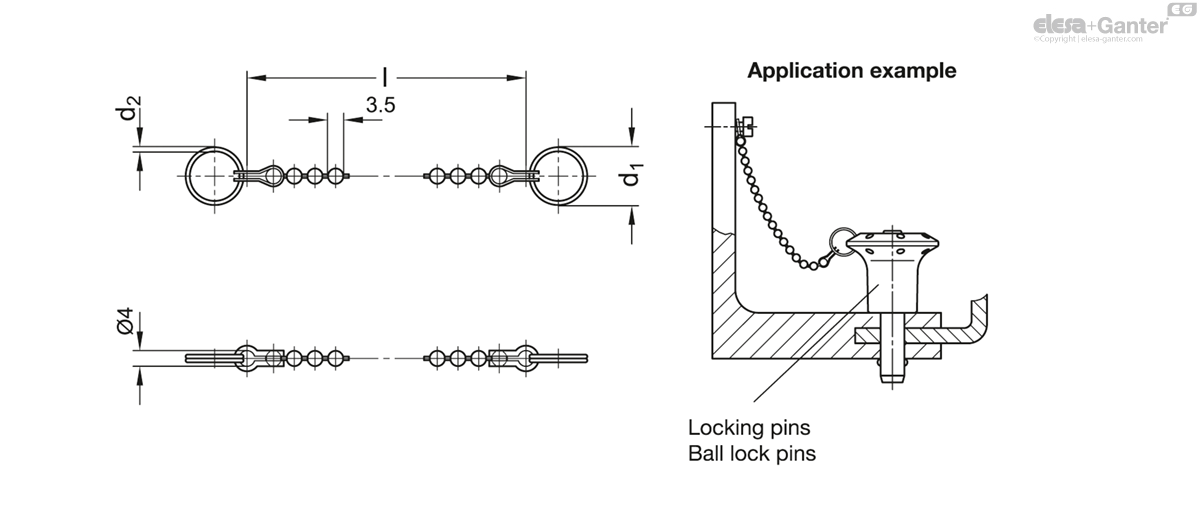

Fiche technique
Caractéristiques techniques
- Code
- GN 111-200-24
- l ±3
- 200
- d1
- 24
- d2
- 1.5
- Static load in N ≈
with key ring - 100
- Static load in N ≈
without key ring - 180
- 8
Ball chain
Brass
Nickel plated
Key ring
Stainless steel AISI 301
Ball chains GN 111 are mainly used in connection with ball lock pins and locking pins with axial lock.
The ball chains lack any amount of stiffness due to their design.
The key rings are supplied unmounted. Both rings have the same Ø d1.
The details on static loads are guide values given without warranty.
| Ideal suitable for ball lock pins and locking pins with axial lock with pins Ø: | ||||||||||
| d1 | GN 113.1, GN 113.3, GN 113.4, GN 113.7, GN 113.8, GN 113.9, GN 113.10 | GN 113.5, GN 113.6 | GN 113.11, GN 113.12 | GN 114.2, GN 114.3, GN 114.6 | GN 114.7, GN 114.8 | GN 114.11, GN 114.12 | GN 124.1, GN 124.2 | GN 124.3 | GN 214.2, GN 214.3, GN 214.6 | GN 314 |
| 14 | 5 / 6 / 8 | all | 5 / 6 / 8 / 10 | all | 6 / 8 | 6 / 8 / 10 / 12 | all | 2024-10-08 | 6 / 8 | - |
| 18 | 10 / 12 / 16 / 20 / 25 | - | 12 / 16 | - | 10 / 12 / 16 / 20 | 16 / 20 | - | 10 / 12 | 10 / 12 / 16 / 20 / 25 | 8 / 10 / 12 |
| 24 | - | - | 20 / 25 | - | - | - | - | - | - | 16 / 20 |
| 30 | - | - | - | - | - | - | - | - | - | - |
