62-AN-39 GN 62 Aimants en U

62-AN-39

GN 62 Aimants en U

avec alésage
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de GN 62

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 62-AN-39
b1
39
b2
25
d
4.7
h1
25
h2
14
s
19
Nominal adhesive forces in N
90
151

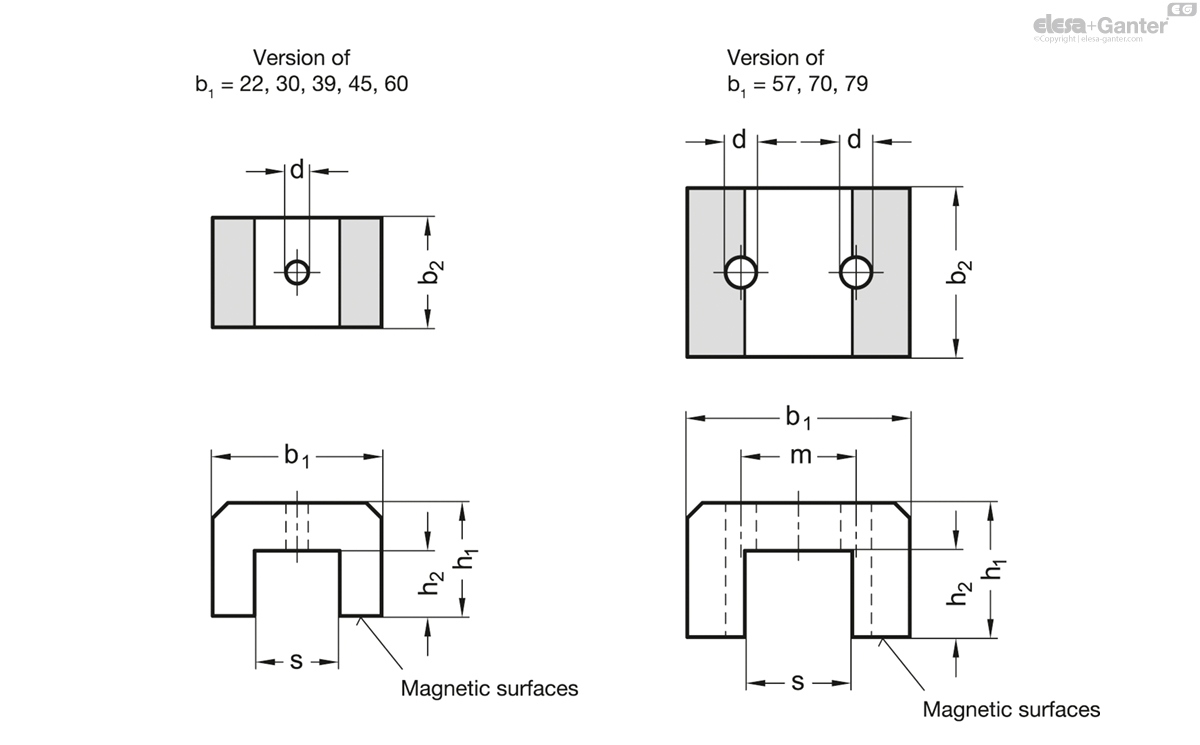

62-AN-39 drawing

Material of the magnet

AlNiCo AN

Aluminium, nickel, cobalt

temperature resistant up to 450 °C

Lacquering red

temperature resistant up to 180 °C

U-magnets GN 62 are unshielded magnets with a split magnetic surface that are manufactured by casting. Their usage temperature is largely limited by the red lacquering. For higher temperatures, blank U-magnets are available on request.

To avoid negatively impacting the magnetic properties, the fastening screws should be made of a non-magnetic material such as stainless steel, brass or plastic.

For easier handling and to avoid demagnetization, a galvanized iron plate protects the magnetic surface of the magnet during storage and transport.

blank, temperature resistant up to 450 °C
