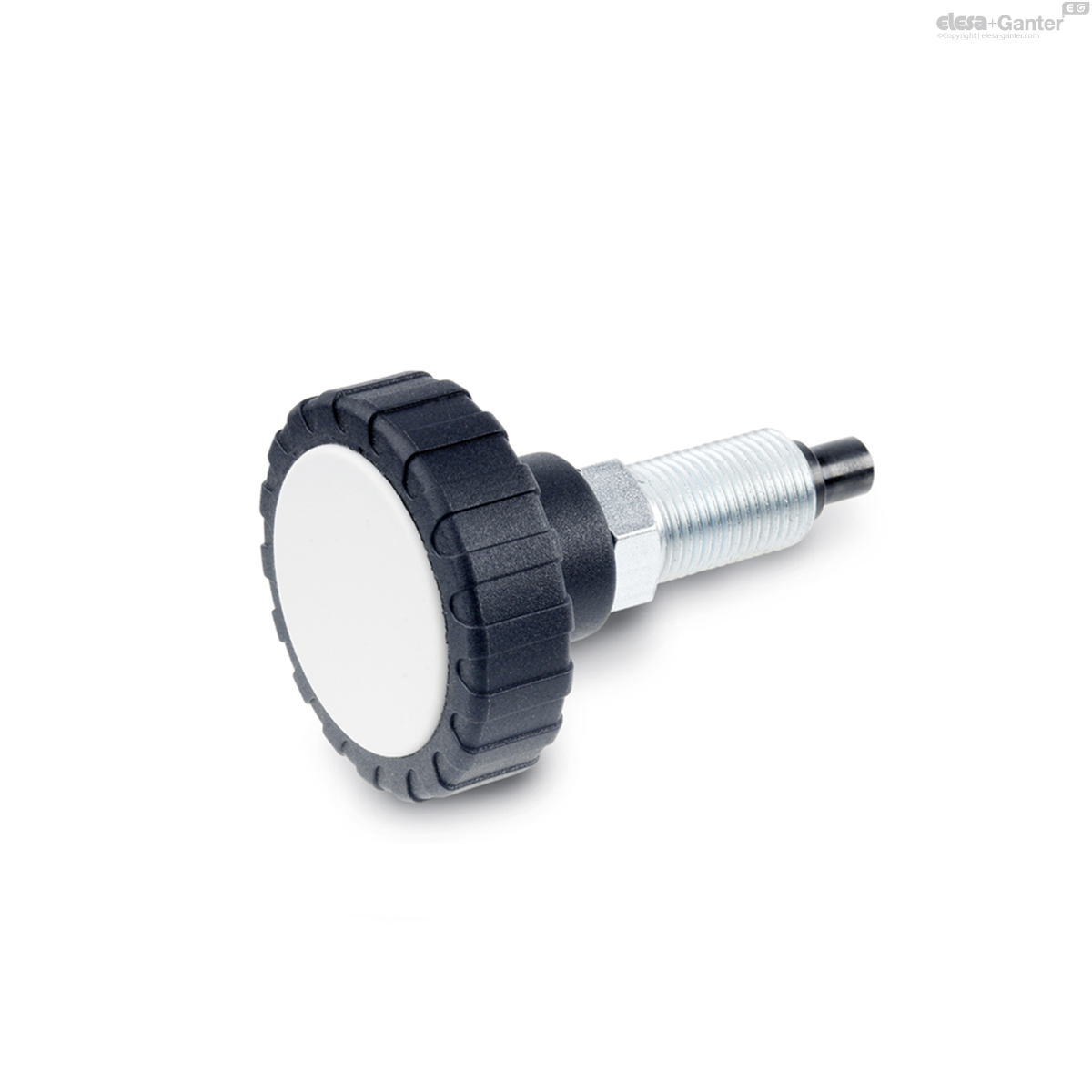

7336.8-42-M16X1,5-6 GN 7336.8 Doigts d'indexation à serrage
Délai: 1-2 semaines
Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 7336.8-42-M16x1,5-6
- d1
- 42
- d2
- M 16 x 1.5
- d3 Pin -0.02/-0.04
Bore
G7 - 6
- d4
- 11
- d5
- 19
- l1
- 60
- l2
- 9
- l3
- 34
- l4 min.
- 23
- l5
- 26
- A/F
- 19
- Spring load in N ≈
initial - 14
- Spring load in N ≈
end - 26
- 90
Knurled knob
Plastic (Polyamide PA)
black, matt
Cover
Plastic (Polyamide PA)
light grey, matt
Fixing thread
Steel zinc plated, blue passivated
Plunger pin
Steel nitrided and blackened

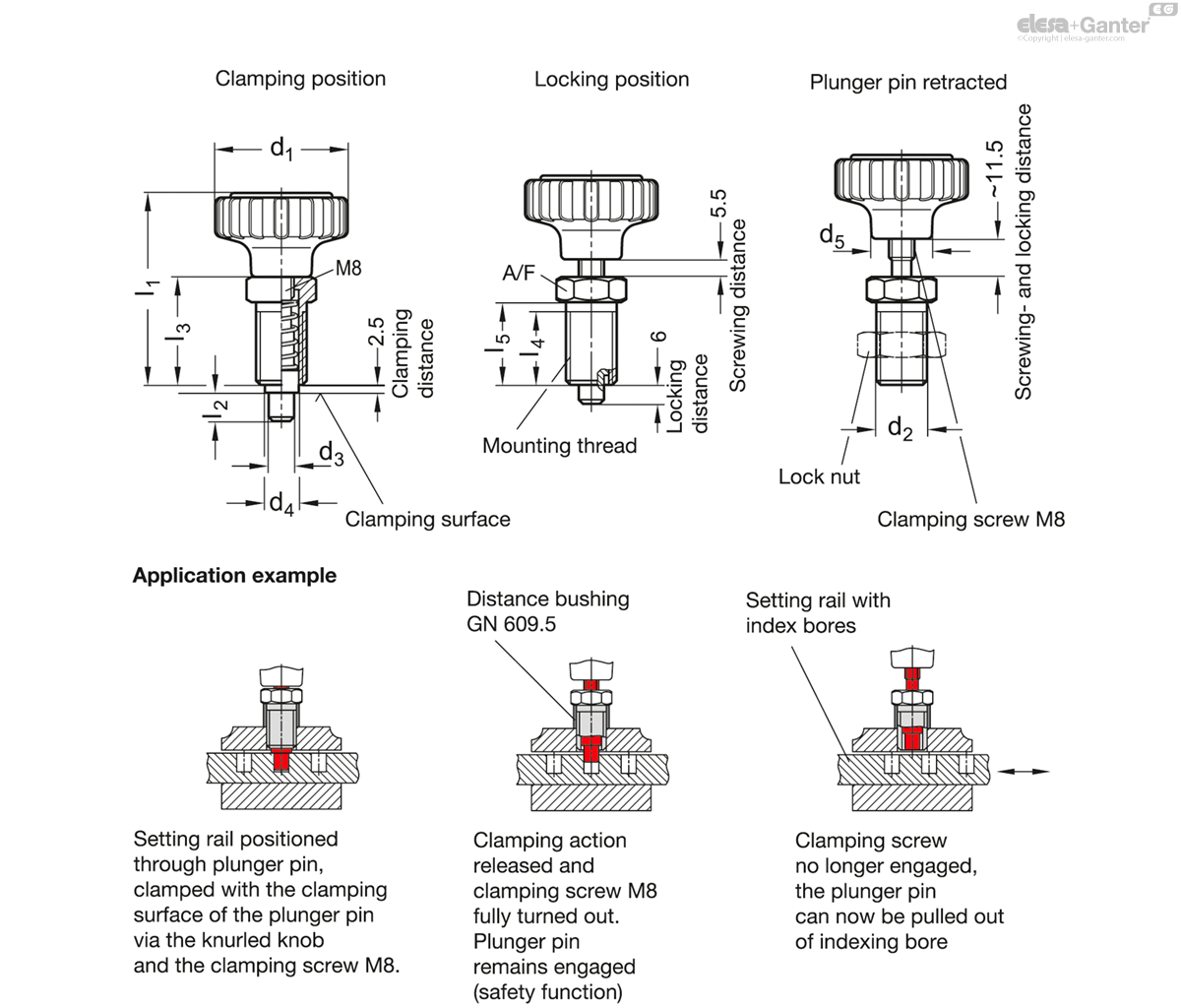

Clamping indexing GN 7336.8 plungers are an advanced development of the GN 7336.7 clamping knobs with indexing plunger.
Like the latter, they are used for positioning, securing and clamping adjusting elements at the same time. This configuration ensures that the indexing pin cannot be pulled from the indexing bore by turning the knurled knob, but only be deliberately pulling the handle (safety function).
