617-10-AN-NI GN-617-NI Bouton en acier inoxydable

617-10-AN-NI

GN-617-NI Bouton en acier inoxydable

Acier / Inox sans position de repos
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de GN 617

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 617-10-AN-NI
d1 Pin -0.02/-0.05 Bore H7
10
d2
M 20 x 1.5
d3
31
e
25.4
l1 ≈
80
l2 min.
10
l3
33
l4
10
l5 min.
30
A/F
22
Spring load in N ≈
initial
17
Spring load in N ≈
end
40
175

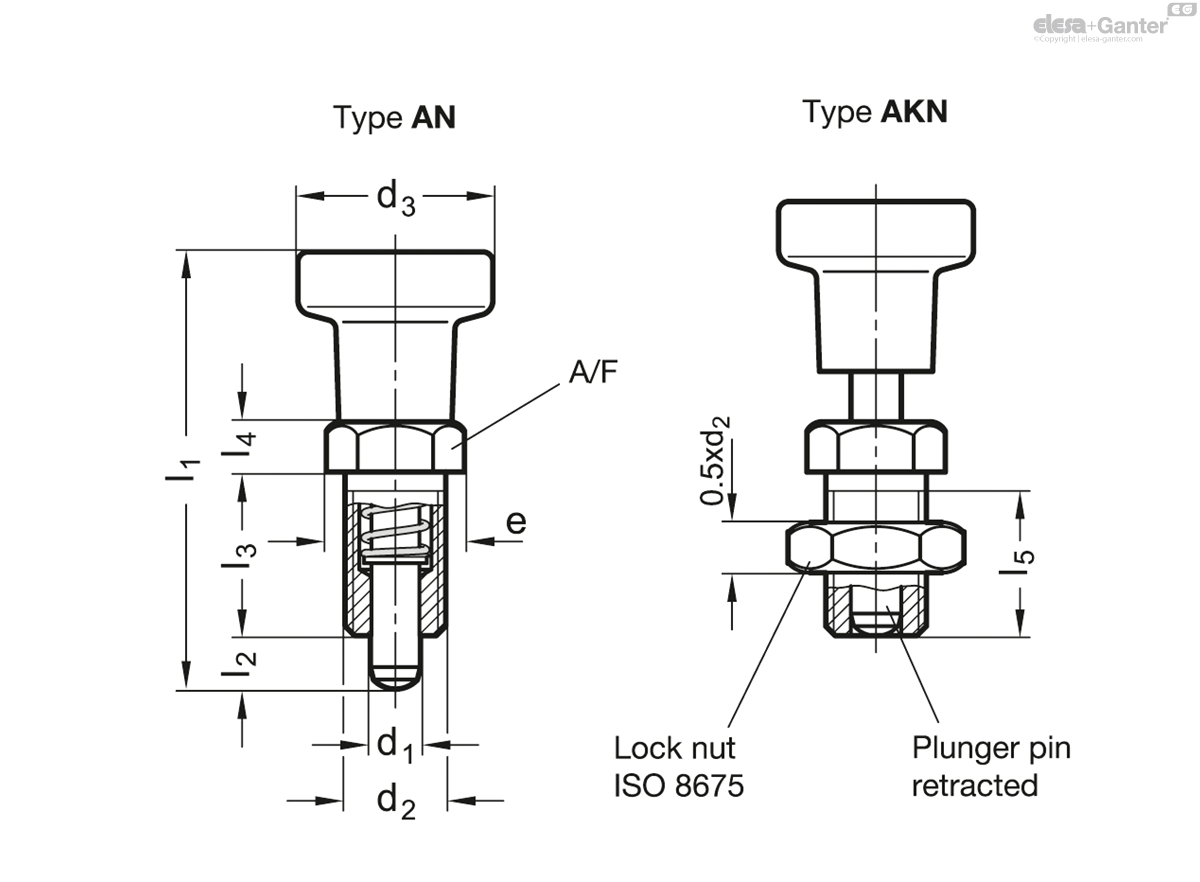

617-10-AN-NI drawing

Types

  • Type A: with Plastic Knob, without lock nut
  • Type AK: with Plastic-Knob, with lock nut
  • Type AN: with Stainless Steel-Knob, without lock nut
  • Type AKN: with Stainless Steel-Knob, with lock nut
  • Type G: with threaded rod, without lock nut
  • Type GK: with threaded rod, with lock nut

Version in Steel

  • blackened
  • Pin hardened

Version in Stainless Steel AISI 303 NI

Pin chemically nickel plated

Knob Type A / AK

  • Plastic (Polyamide PA)
  • black, matt
  • not removable

Knob Type AN / AKN

  • Stainless Steel AISI 303
  • not removable

Type G or GK of the GN 617 indexing plungers have been designed for applications where the indexing plunger is not operated with the standard knob.

The indexing plungers are designed such that the plunger set in the end position (spring is 'on block') can also absorb axial forces. For applications in which these forces are substantially above the tensile force applied by the operator (Type G), GN 817 indexing plungers are to be preferred.
