GN 113.5 Broches à billes en inox
En stock Toutes les tailles et variantes de GN 113.5
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques

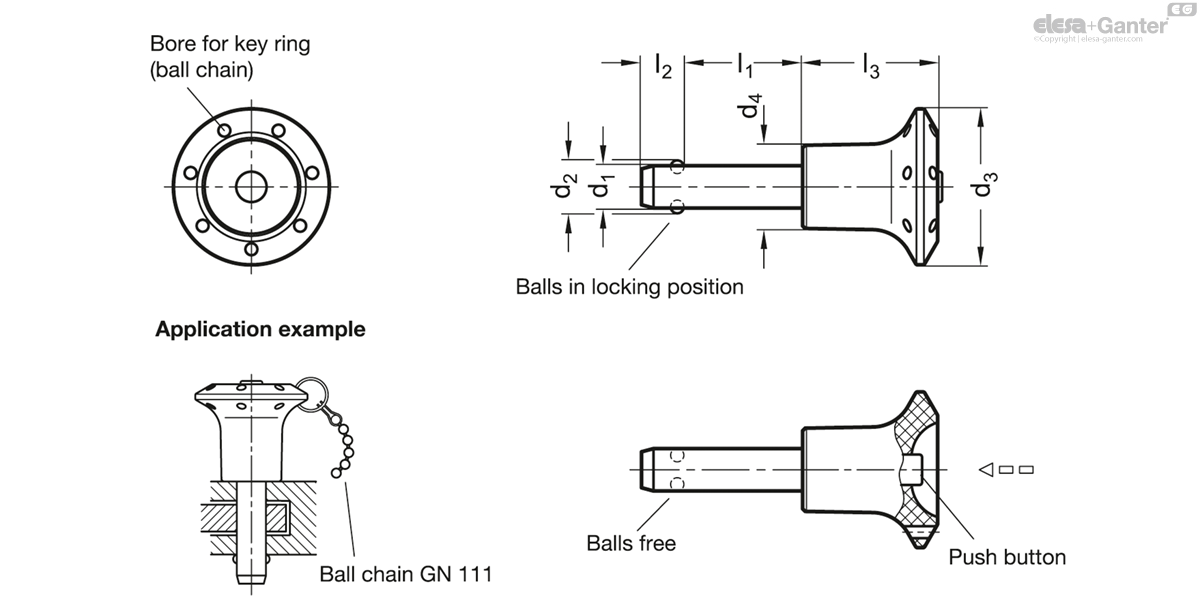

| Code | GN 113.5-5-30 |
|---|---|
| d1 -0.04/-0.08 | 5 |
| l1 +0.6 | 30 |
| d2 | 5.5 |
| d3 | 30 |
| d4 | 16 |
| l2 ±1 | 6 |
| l3 -0.2 | 26 |
| Location bore H11 |
5 |
| Load F in kN ≈ Load capacity in kN ≈ Double sided shearing resistance according DIN 50141 (breaking strength) |
14 |
 |
20 |
Pin Stainless Steel AISI 303
Knob
Plastic (Polyamide PA)
- black-grey / red
- temperature resistant up to 80 °C
Balls
Stainless Steel AISI 420C
Spring
German Material No. 1.4565

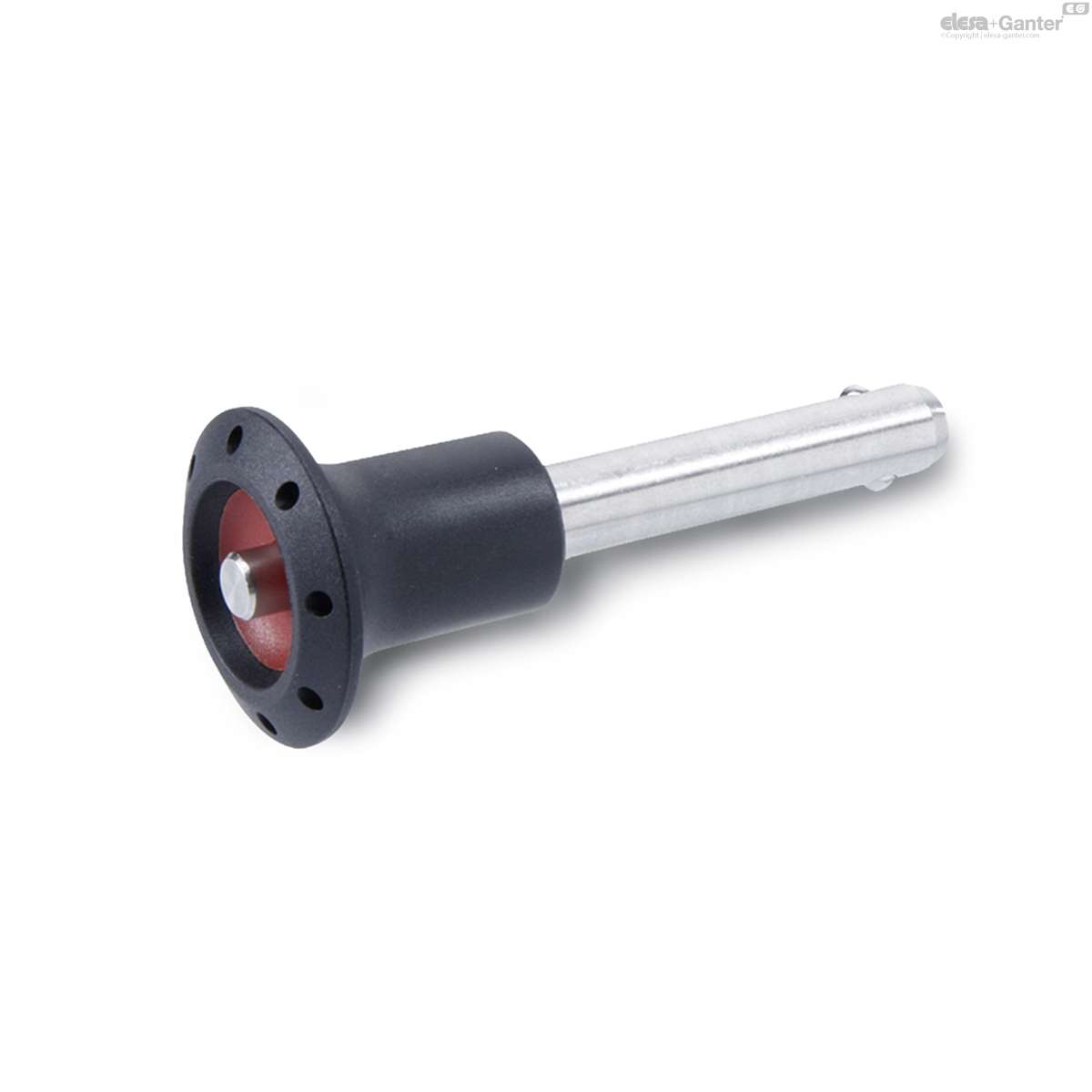

Stainless Steel-Ball lock pins GN 113.5 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is locating pins which have often to be removed and installed again.
By pressing the spring loaded push button both balls are unlocked and by releasing it, the balls are locked again.
The load values given in the above table at shear stress are theoretically obtained and indicative only. They are non-binding recommended values and rule out any liability. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.
