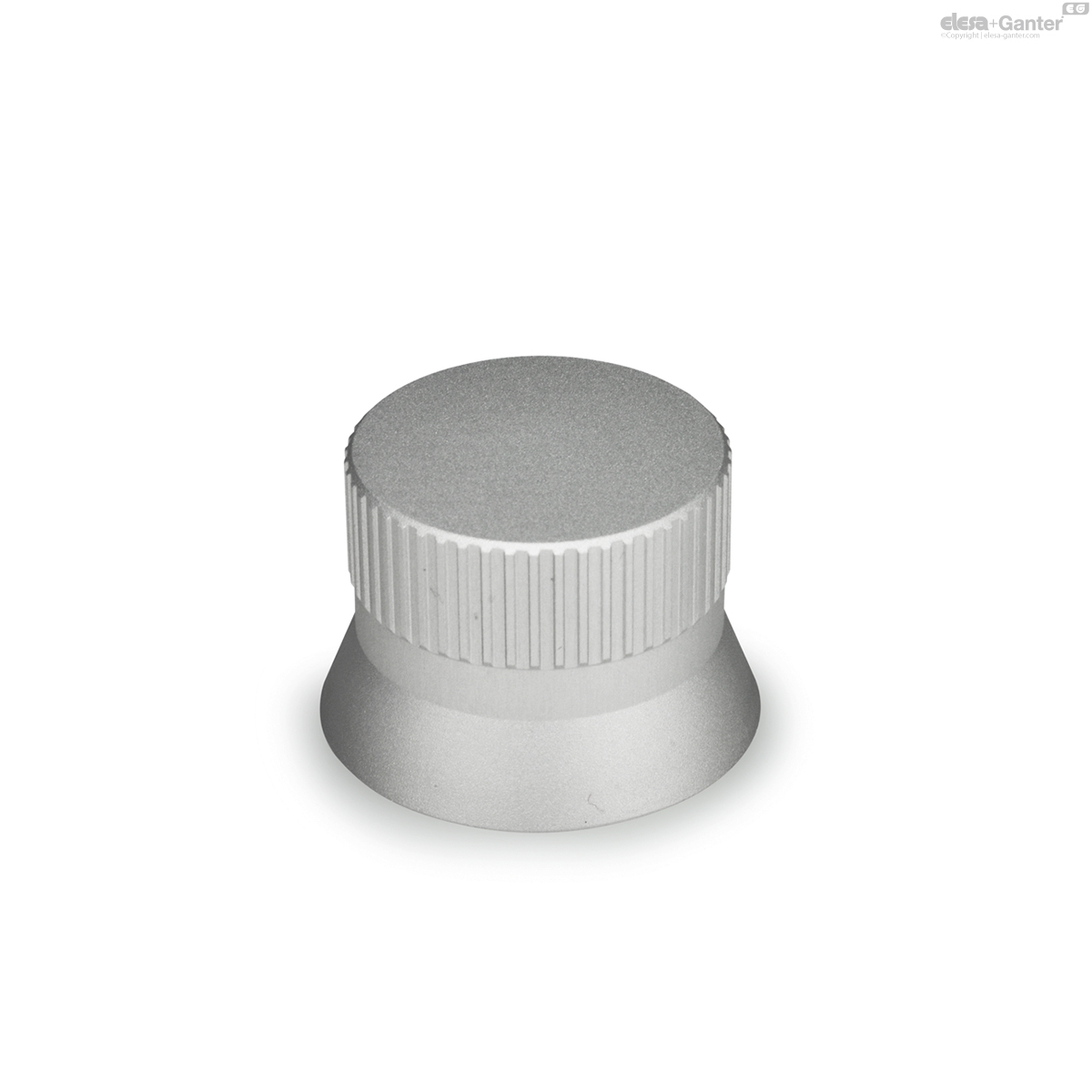

723.4-42-B8-N GN 723.4-N Neutre

723.4-42-B8-N

GN 723.4-N Neutre

Aluminium
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de GN 723.4

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 723.4-42-B8-N
d1
42
d2 H8
B 8
d3 -0.2
50
d4
37.5
d5
M 5
l1
33.5
l2
10.5
l3
15.5
l4
15
t1 min.
30.5
t2
11.5
101

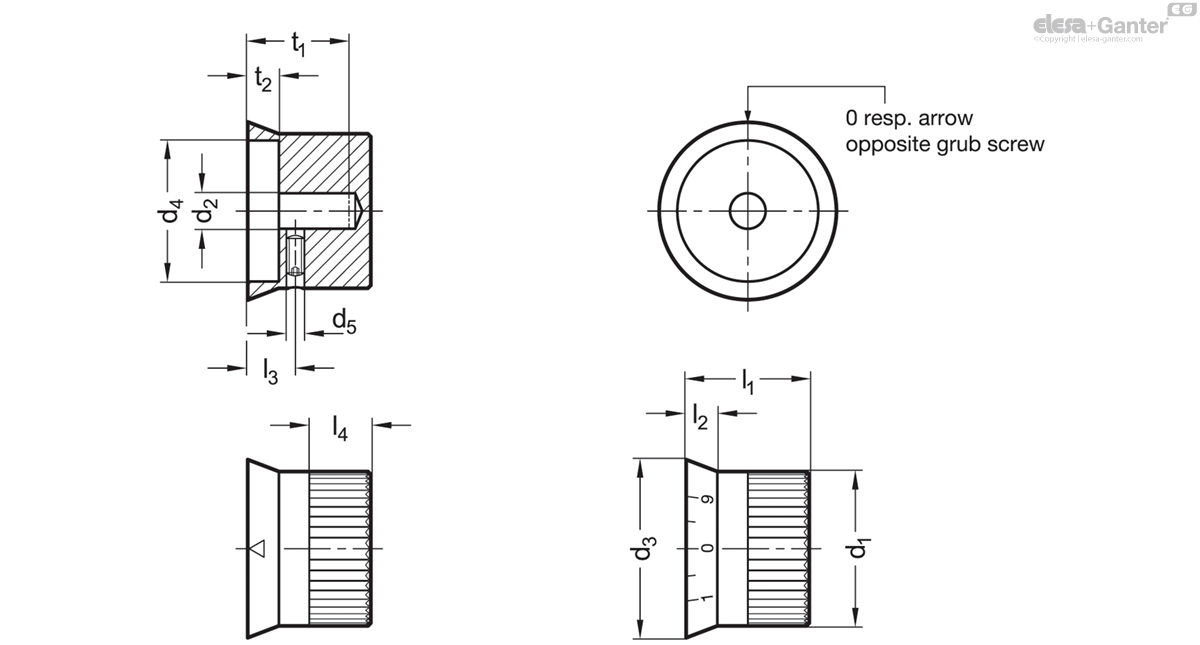

723.4-42-B8-N drawing

Types

  • Type N: Neutral
  • Type M: With arrow
  • Type S: With scale 0...9, 20 graduations

Knob

Aluminum

  • Anodized, natural color
  • Arrow for type M
  • Laser-engraved
  • Scale for type S
  • Laser-engraved

Grub screw DIN 916

Stainless steel

with internal hex and serrated point

Control knobs GN 723.4 can be combined with reference flanges GN 723.3 which offer the following advantages:

- they are provided with a reference mark relating to the scale on the control knobs

- they give additional support to the control shaft

- the version with a friction ring prevents unexpected movement through vibration.

Scale and arrow on the control knobs are indelibly marked and easily legible. Besides the standard scale (type S) they can be supplied with any type of graduation.

Regarding design, numbering run, numbering position and numbering sequence of the scale please see the layout for scale knobs on the order sheet 'How to Order Graduations' .

  • GN 723.3 Reference Flanges
  • GN 826 Clamping Elements (for Adjustable Spindles)
  • Special graduations (see „How to Order Graduations“)
