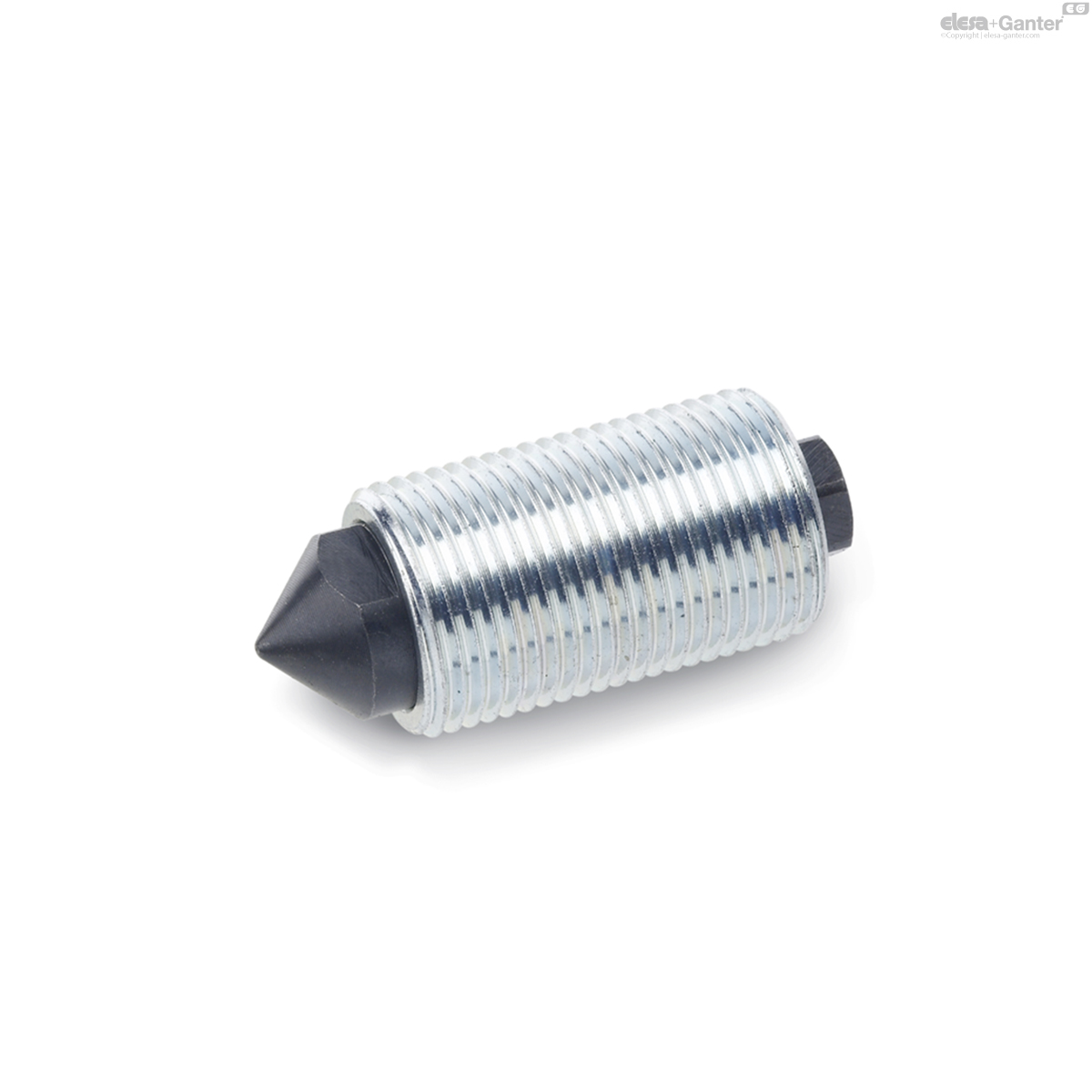

513-M20X1,5-K-2 GN 513 Éléments de ressort

513-M20X1,5-K-2

GN 513 Éléments de ressort

  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de GN 513

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 513-M20x1,5-K-2
d1
M 20 x 1,5
d2
14.5
d3
M 6
d4
11.4
e
10
l1
47
l2
33
l3
4
l4
10
s1
9
s2
12
t min.
12
Spring load
in N ≈
initial
65
Spring load
in N ≈
end
200
65
513-M20X1,5-K-2 drawing

Types

  • Type I: Female thread
  • Type K: Pointed nose
  • Type H: Semi-spherical, Steel
  • Type P: Prism (120°)

Identification No.

  • Version 1: standard spring load
  • Version 2: high spring load

Steel

Threaded sleeve

zinc plated, blue passivated

Spring bolt

case hardened, blackened

Identification

standard spring load:

Crescent shaped ring

phosphated (anthracite)

high spring load:

Crescent shaped ring

zinc plated, blue passivated

Spring elements GN 513 are universal pressure elements used as detents, positioners or for clamping with spring pressure. The spring loaded nose can be used for a push-on or push-off operation. In addition the spring loaded nose cannot rotate.

At the pulling end the female thread will accept a pulling rod or an operating knob.

Type I with a female thread at the pushing end can be fitted with a special plunger nose.

The spring element can be screwed into a thread at the hexagon on the pulling end or the spanner flats at the pushing end of the plunger.
