866-32-BC-NC
GN 866 Pinces de puissance
Délai: 1-2 semaines Toutes les tailles et variantes de GN 866
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 866-32-BC-NC
- Size
- 32
- max. clamping moment
in Nm at 6 bar - 150
- FS in N
Clamping force
at r at 6 bar - 1110
- FH in N
Clamping force
at 6 bar ≈ - 1520
- a
- 31
- b -0.2
- 12
- d1 h8
- 40
- d2
- M 6
- d3 H8
- 9
- d4
- 5
- d5
- G 1/8
- l1 -0.5
- 206
- l2 -0.5
- 237
- l3
- 91
- l4
- 31
- l5
- 6
- l6 ≈
- 72.5
- m1 ±0.01
- 18
- m2
- 10
- m3 ±0.01
- 25
- m4
- 51
- m5 ±0.01
- 30
- m6
- 22
- r
- 67.5
- s1
- 42
- s2
- 42
- t
- 15
- w
- 14°
- 1400
Type
Type BC: 2 clamping arms vertical for centred clamping
Steel C45
Chemically nickel plated NC
Max. pressure 10 bar
The clamping forces FS of power clamps GN 866 are directed inwards at the clamping arms.
The maximum clamping moment of the power clamps GN 866 is reached once the clamping bar is at the end of its stroke. For this reason the working stroke should be completed as closely as possible to the stroke end.
- With anti-stick coating for protection against welding spray and corrosion
These pneumatically operated power clamps (Patent MISATI) are used for clamping, holding, gripping and positioning of work pieces in jigs and handling systems.
The salient points of these power clamps are:
- the high clamping force
- the small dimensions
- the reduced air consumption
- the light weight

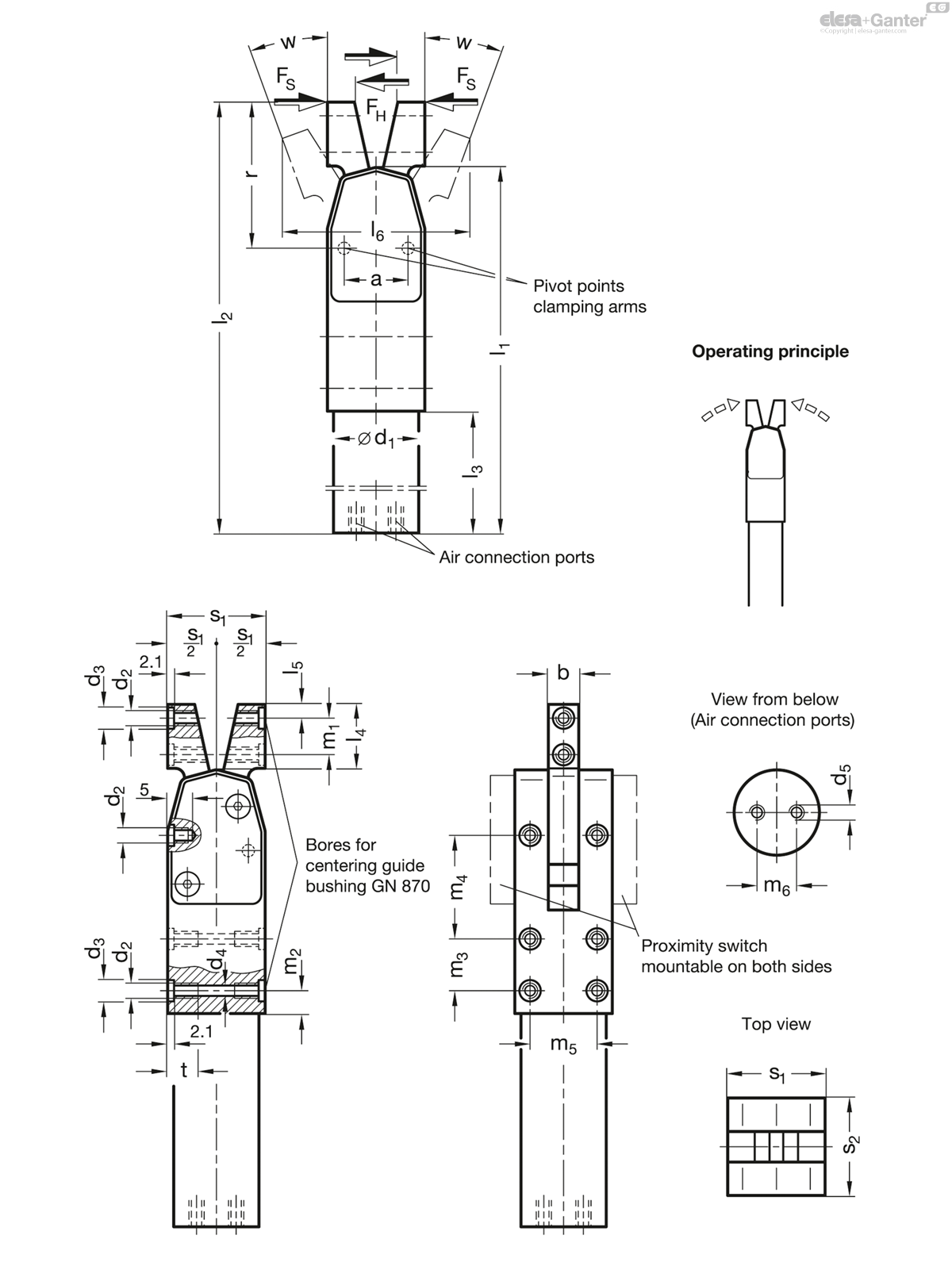

The drawings shown here explain the functional principle of the dead point mechanism.
Pistons with diameters of 20, 32, 40 and 50 mm yield a clamping force of 60 Nm up to 475 Nm, which leads to clamping forces being much above those of competitors’ power clamps.
The power clamps have been designed and configured to achieve an extended life. Functional tests have proved that even after 20 million cycles they were still serviceable.
Further salient design points are:
- The clamp is kinematically designed such that self-retention (holding force FH) is achieved in the clamped position (clamping force FS) after passing the dead point due to irreversibility.
- The forward stroke sequence of the clamping arm is rapid but the ultimate clamping action is slow and as a result pneumatic damping is normally not required. Upon request, however, it can be supplied when big masses are moved.
- The clamping mechanism is fitted with needle bearings which give optimum clamping forces and reduced wear.
- The steel cylinder with the integrated clamping mechanism are in one unit. This leads to high stability for these small units with an extended range of applications. The placement of the air connection at the bottom end leads also to many other advantages.
- The clamping mechanism of GN 864 is also shrouded to avoid the ingress of dirt and other objects which could interfere with the proper functioning of the clamps (such as welding operations!).
