850-420-T-ST
GN 850-ST Acier
Acier/acier inoxydable , pour l'action de traction
Délai: 1-2 semaines Toutes les tailles et variantes de GN 850
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte

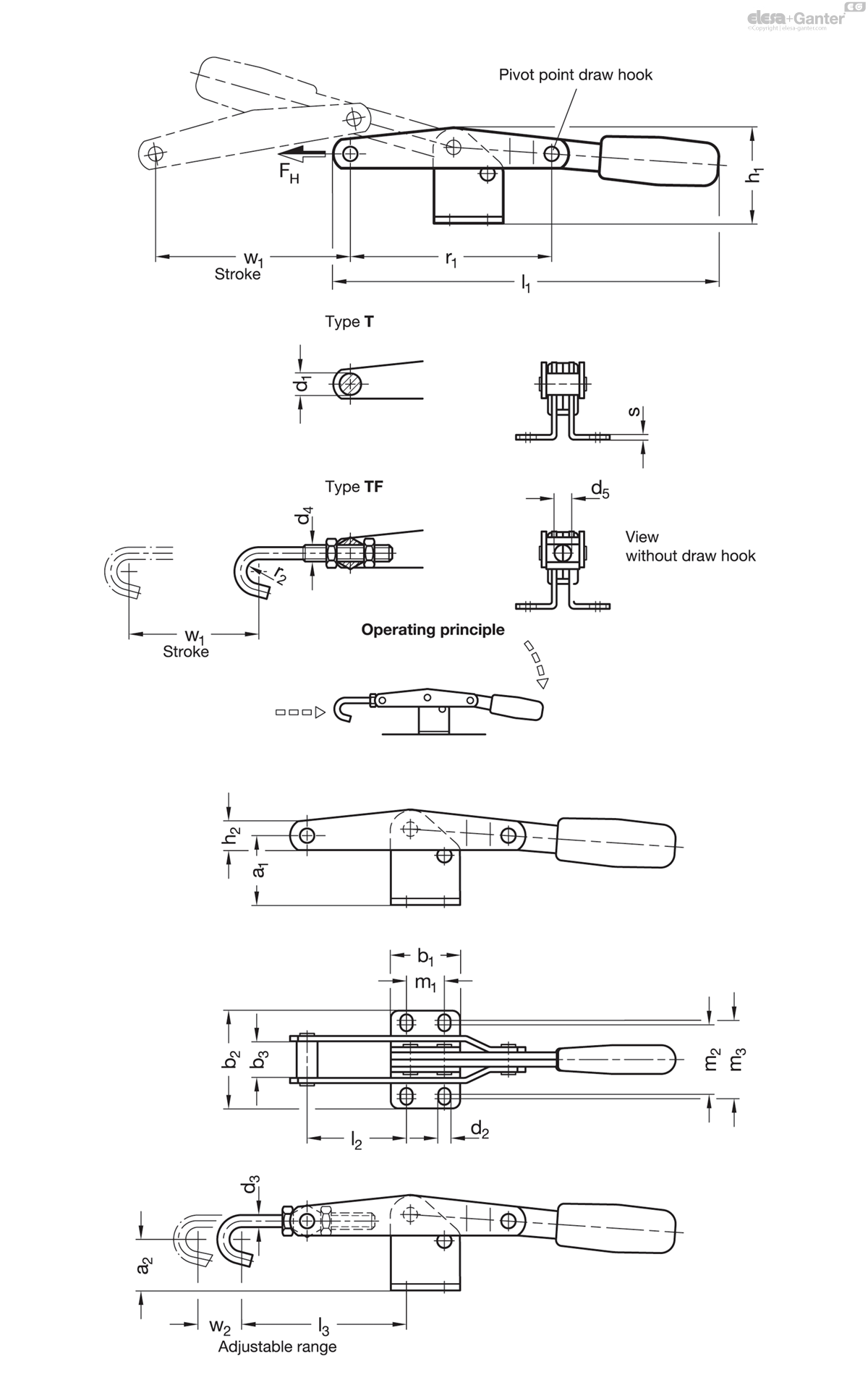

Fiche technique
Caractéristiques techniques
- Code
- GN 850-420-T-ST
- Size
- 420
- FH Holding capacity in N
- 4800
- a1
- 44
- b1
- 54
- b2
- 84
- b3
- 26
- d1
- 14
- d2
- 10.5
- d5
- 10.3
- h1 ≈
- 60.5
- h2
- 25
- l1 ≈
- 275
- l2 ≈
- 58
- m1
- 28.5
- m2
- 59.75
- m3
- 61.25
- r1 ≈
- 138
- s
- 5
- w1 Stroke
- 155
- 1070
Types
- Type T: With draw axle
- Type TF: With draw hook
Tensioning mechanism
- Steel ST
- Sheet metal parts
- Case hardening steel C10, zinc plated, blue passivated
- Bearing pins tempered
- Bearing rivets case hardened
- Stainless steel AISI 304 NI
- Moving parts lubricated with special grease
Draw hook
- Steel St 37 for ST
- Zinc plated, blue passivated
- Stainless steel AISI 301 for NI
Handle
Plastic
Red, oil resistant
Latch type toggle clamps GN 850 are suited for rapid closing and fastening of lids, covers and molds.
During clamping, the pivoting motion of the clamping lever is transformed into an axial movement of the draw axle or draw hook and ensures a form-fit hold.
Latch type toggle clamps of type T are equipped with a draw axle firmly attached to the clamping arm. Type TF has a draw hook that can be adjusted within the adjustable range w2. The draw hook is supplied unmounted.
- without draw hook (Type TFN)
