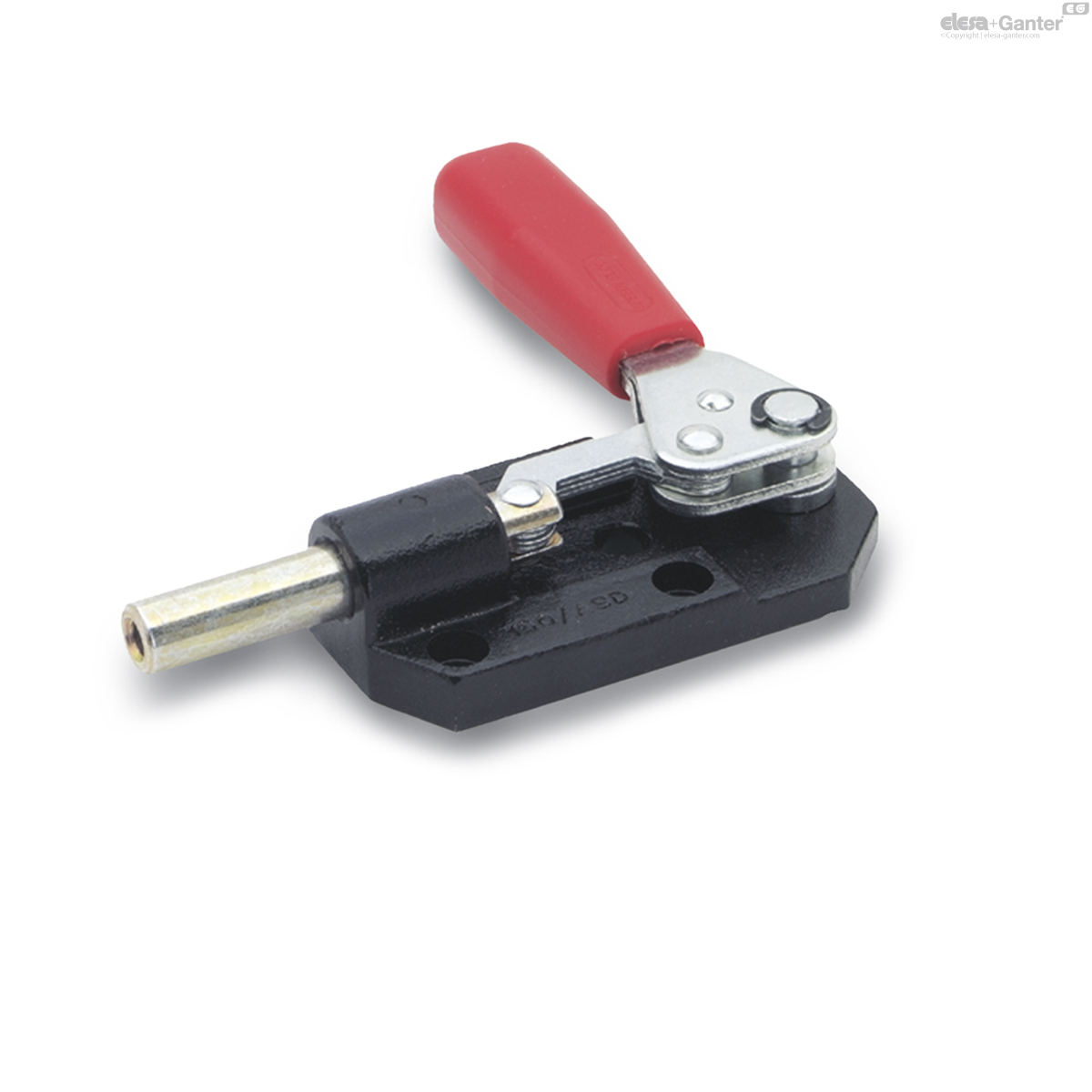

GN 844 Sauterelles à tige coulissante
pour serrage push-pull
En stock Toutes les tailles et variantes de GN 844
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 844-70-ASD
- Size
- 70
- FH in N
- 900
- a
- 12
- b
- 19.5
- d1
- 8.5
- d2
- M 6
- d3
- 4.3
- h1 ≈
- 49
- h2
- 36
- l1 ≈
- 86
- l2 ≈
- 77
- l3 ≈
- 22
- m1
- 26
- m2
- 26
- m3
- 13
- s
- 6
- t
- 12
- w
- 20
- 162
Types
- Type ASD: Clamping by turning handle counter-clockwise
- Type ASS: Clamping by turning handle clockwise
Body
Steel
- forged
- manganese phosphated
Parts in sheet metal
Case-hardened Steel C10
zinc plated, blue passivated
Plunger
Steel St 37
zinc plated, blue passivated
All moving parts
lubricated with special grease
Hand grip
High quality, oil resistant red plastic
GN 844 heavy duty push-pull type toggle clamps are known for their low height in all clamping positions. They can be used for very high holding forces thanks to their massive and sturdy body.
- Spindle assemblies-
