813-2000-F
GN 813 Sauterelles
Délai: 1-2 semaines Toutes les tailles et variantes de GN 813
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

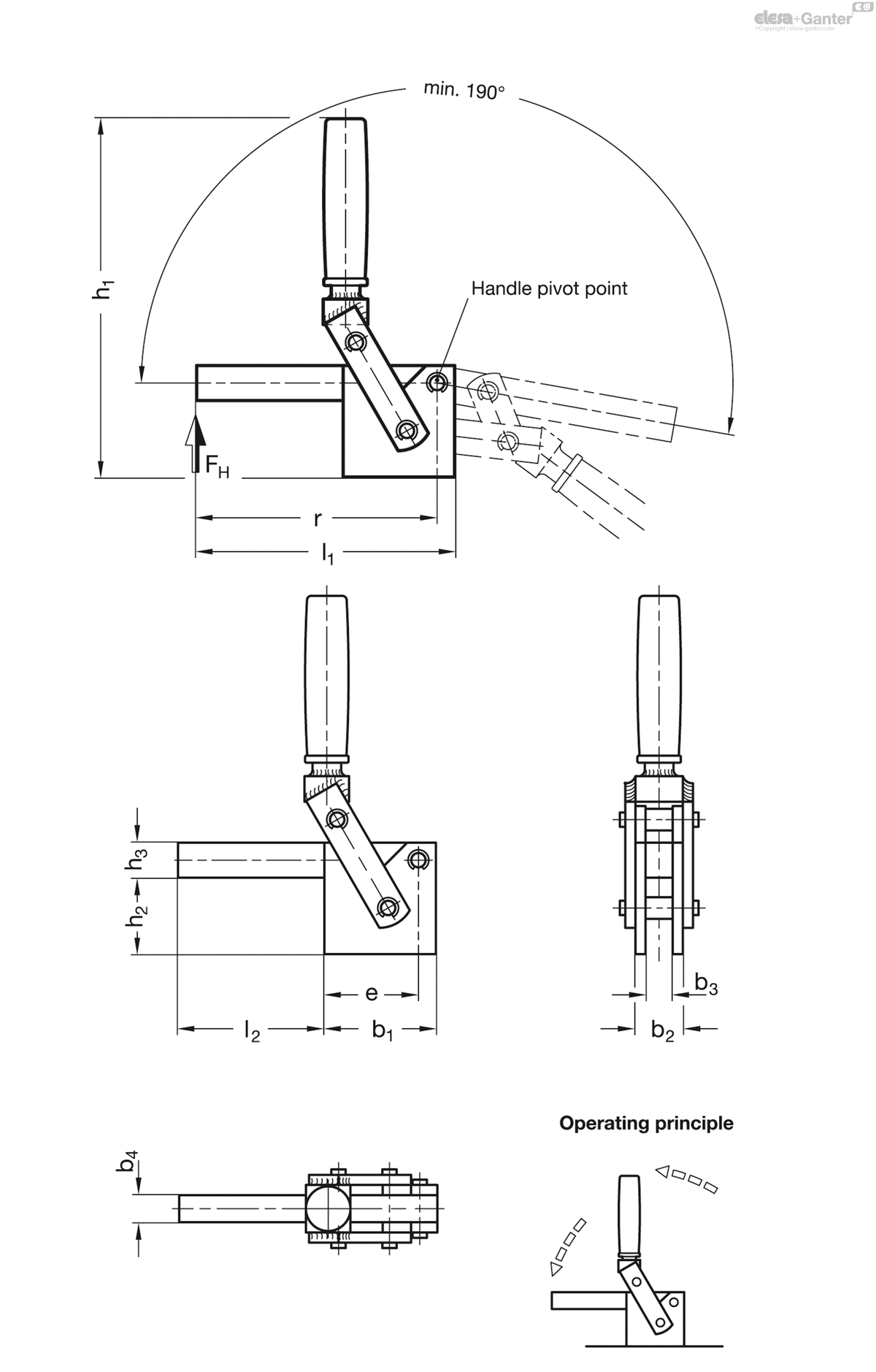

Caractéristiques techniques
- Code
- GN 813-2000-F
- Size
- 2000
- FH in N
- 20000
- b1
- 100
- b2
- 36
- b3
- 20
- b4
- 20
- e
- 82
- h1
- 297
- h2
- 65
- h3
- 35
- l1
- 220
- l2
- 120
- r
- 202
- 3540
Type
- Type F: Solid bar version
Bearing pins and clamping lever
Steel St 60
blackened
Other parts
Steel St 37
- weldable
- blackened
Bearing pins and rivets
case-hardened
All moving parts
lubricated with special grease
Hand grip
High quality, oil resistant red plastic
GN 813 vertical acting toggle clamps are used for applications where a very high holding force is required such as closing of foam molds.
These clamps have been designed for easy dismantling: i.e. the bearing pins are locked with circlips.
After dismantling the individual parts, they can be modified to suit individual applications.
