806-15-B
GN 806 Embouts de protection
Délai: 1-2 semaines Toutes les tailles et variantes de GN 806
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

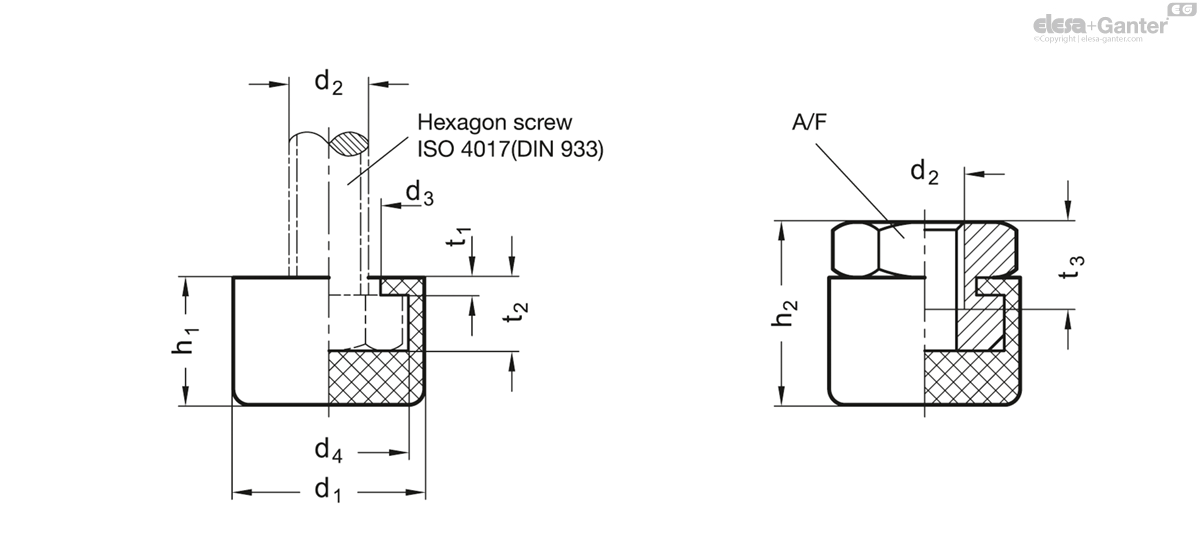

Caractéristiques techniques
- Code
- GN 806-15-B
- d1
- 15
- d2
- M 6
- d3
- 8.5
- d4
- 11.5
- h1
- 10
- h2
- 14
- A/F
- 12
- t1
- 2
- t2
- 6
- t3 min.
- 7
- 8
* Protective caps d1 = 11 are not available in Type B (with a threaded bush)
Types
- Type A: Protective cap without screw / threaded bushing
- Type B: Protective cap with threaded bushing
Protective cap
Rubber (CR)
- Hardness 85±5 Shore A
- black
Threaded bushing
Steel
zinc plated, blue passivated
Protective caps GN 806 can be used with hexagon screws ISO 4017 or together with threaded pins type B as thrust pins with soft clamping head surface, or as soft end stop bolts.
A typical application is in conjunction with toggle clamps.
