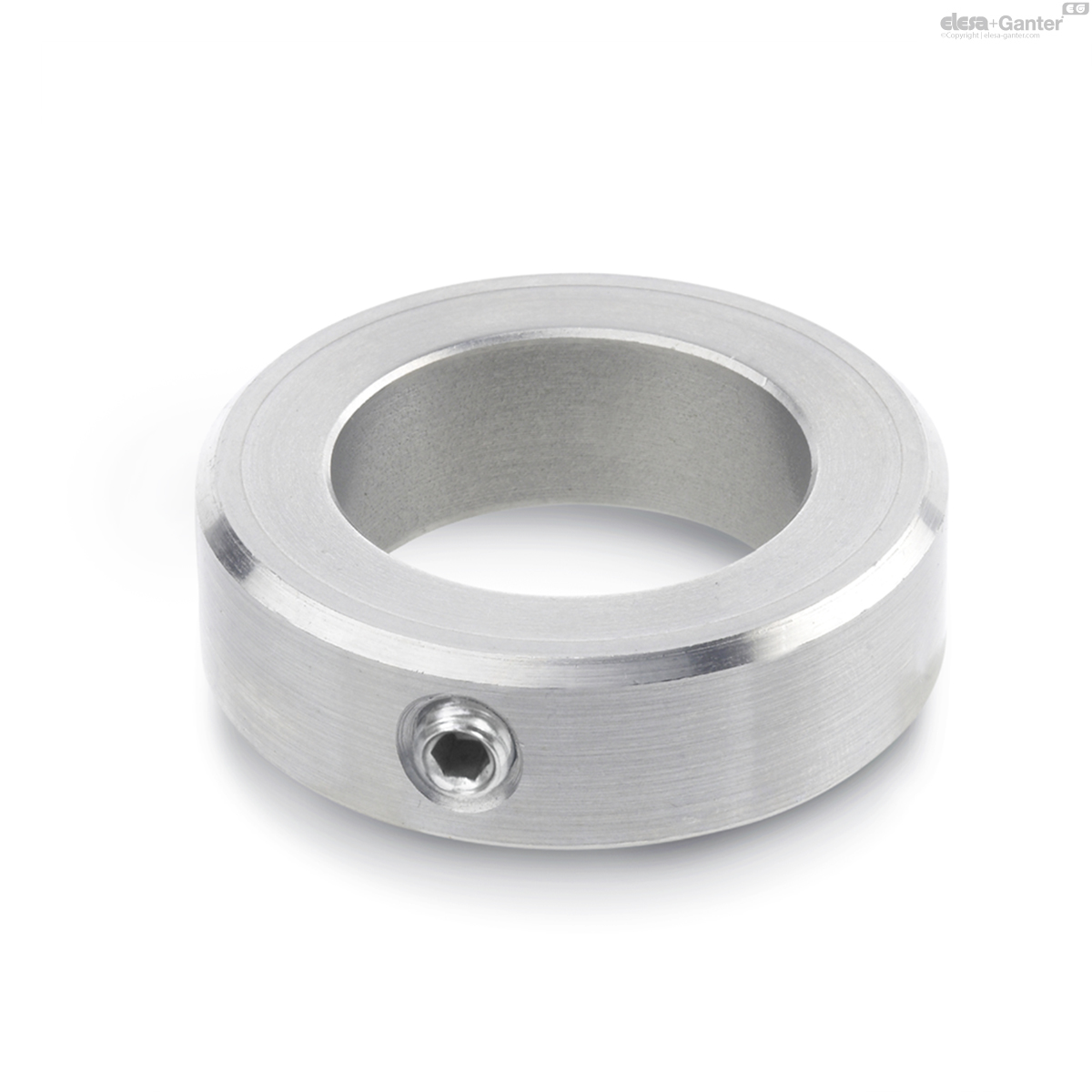

705-30-E-NI GN 705-NI Acier inoxydable

705-30-E-NI

GN 705-NI Acier inoxydable

Acier / Zingué / Acier inoxydable
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de GN 705

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 705-30-E-NI
d1 H8
30
d2
45
d3
M8x10
b js14
16
108
705-30-E-NI drawing
* The tolerances given in accordance with DIN 705 apply to blank set collars. As a rule, the surface treatment has no detrimental effect on the proper function.

Types

  • Type A: Grub screw with slot ISO 7434 (DIN 553)
  • Type E: Grub screw with internal hexagon DIN 914

Version in Steel

blackened (Standard)

Version in zinc plated

Steel

zinc plated, blue passivated ZB

Version in Stainless Steel

Stainless steel AISI 303 NI

Shaft collars GN 705 essentially comply with the designs of DIN 705 which has been re-issued in April 2007.

The official standard sheet also lists the sizes d1 = 2 / 2.5 / 3 / 3.5 / 4 / 4.5 / 85 / 90 / 100 / 110 / 120 / 125 / 125 / 140 / 150 / 160 / 180 and 200, although it does not show a whole series of the intermediate sizes listed in the above table.

Also, the official standard sheet still lists the Types B and C for fixing the shaft collars with transverse pin, but not Type E.
