653-M10-40-NI
DIN 653-NI Acier inoxydable
Acier / Acier inoxydable , Type plat
En stock Toutes les tailles et variantes de DIN 653
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

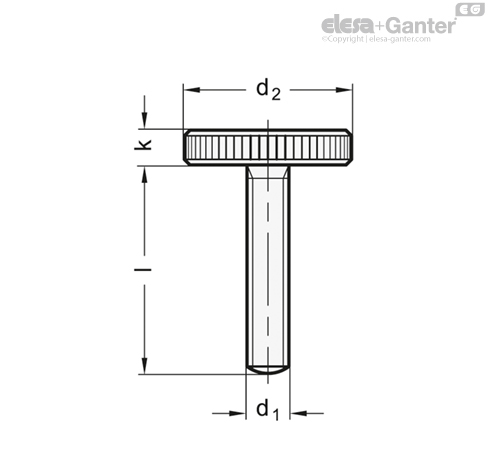

Caractéristiques techniques
- Code
- DIN 653-M10-40-NI
- d1
- M 10
- l
- 40
- d2
- 36
- k
- 8
- 80
Version in Steel
- Property class 5
- Visible face fine turned
- Blackened
- Zinc plated, blue passivated ZB
Version in Stainless Steel
- Stainless steel AISI 303 NI
- Matte shot-blasted

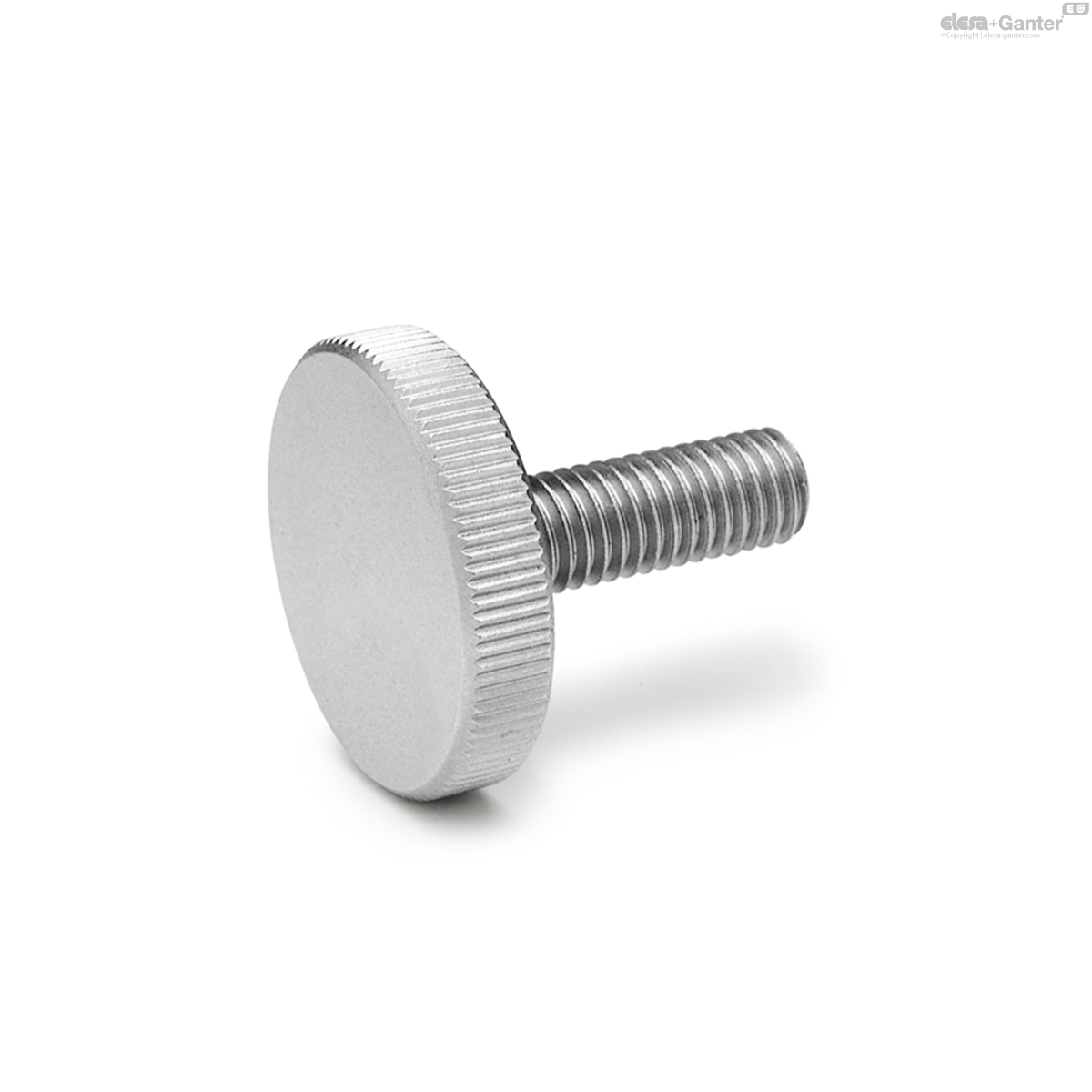

Knurled screws DIN 653 are turned entirely from a single piece. The thread of the screw generally extends up to the head and ends in a runout without recess as per the DIN designation A.
They are suitable for universal use and can be quickly tightened and loosened without tools.
- Version in stainless steel (A4 quality)
