6336.3-63-M12 GN 6336.3-ST Acier

6336.3-63-M12

GN 6336.3-ST Acier

Boutons étoile à serrage rapide
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de GN 6336.3

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 6336.3-63-M12
d1
63
d2
M 12
d3
26
d4
13
h1
40
h2 ≈
21
h3 min.
36
125

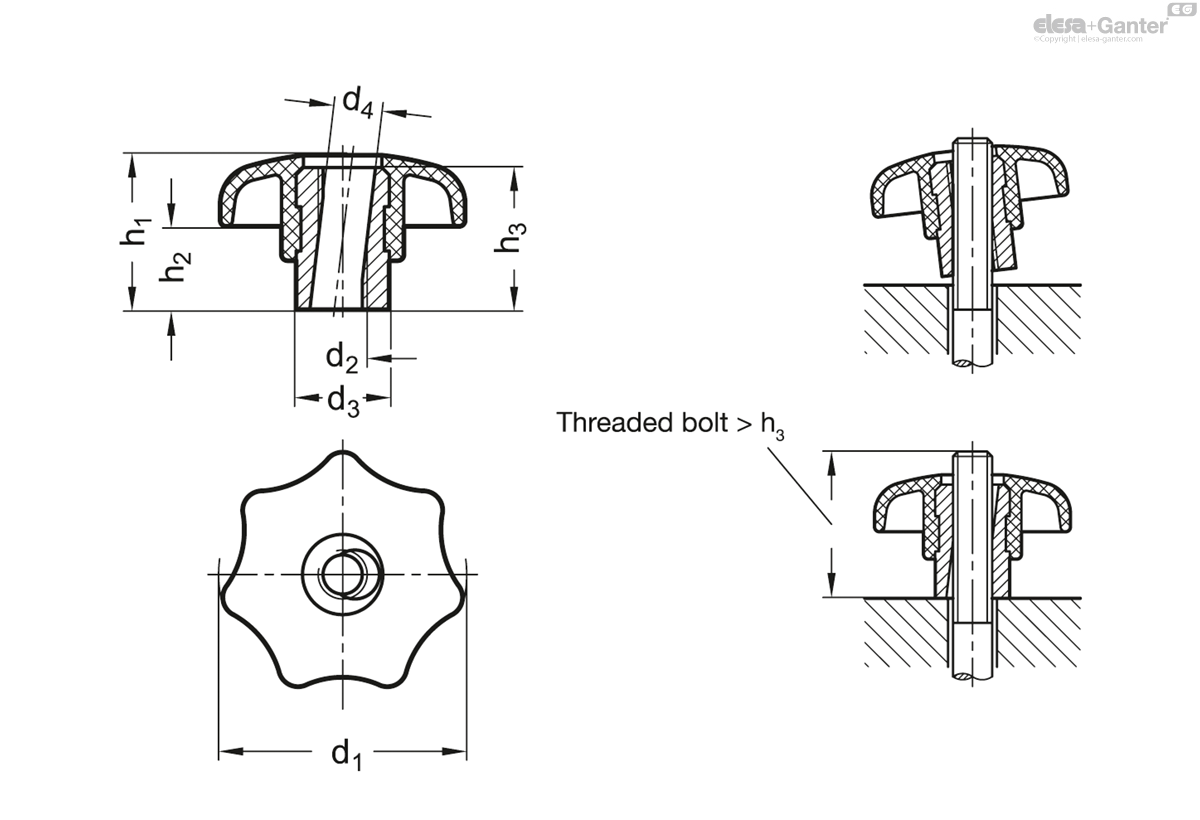

6336.3-63-M12 drawing

Plastic

Technopolymer (Polyamide PA)

  • shock-resistant
  • black, matt finish

Bushing

Steel zinc plated, blue passivated

Stainless Steel AISI 303 NI

Quick release star knobs GN 6336.3 are used in such applications where the knob has to be completely removed after the releasing operation and refitted rapidly for re-clamping.

The knob is tilted over the threaded spindle. When in position, the knob is brought into a straight position for meshing of the two threads on nut and spindle. The knob will then have to be turned only by fraction of a rotation to achieve clamping.

Functional safety exists only if the clamping surface lies at a right angle to the threaded bolt.
