6335.9-40-M6
GN 6335.9 Boutons à main
avec une force de serrage accrue
Délai: 1-2 semaines Toutes les tailles et variantes de GN 6335.9
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

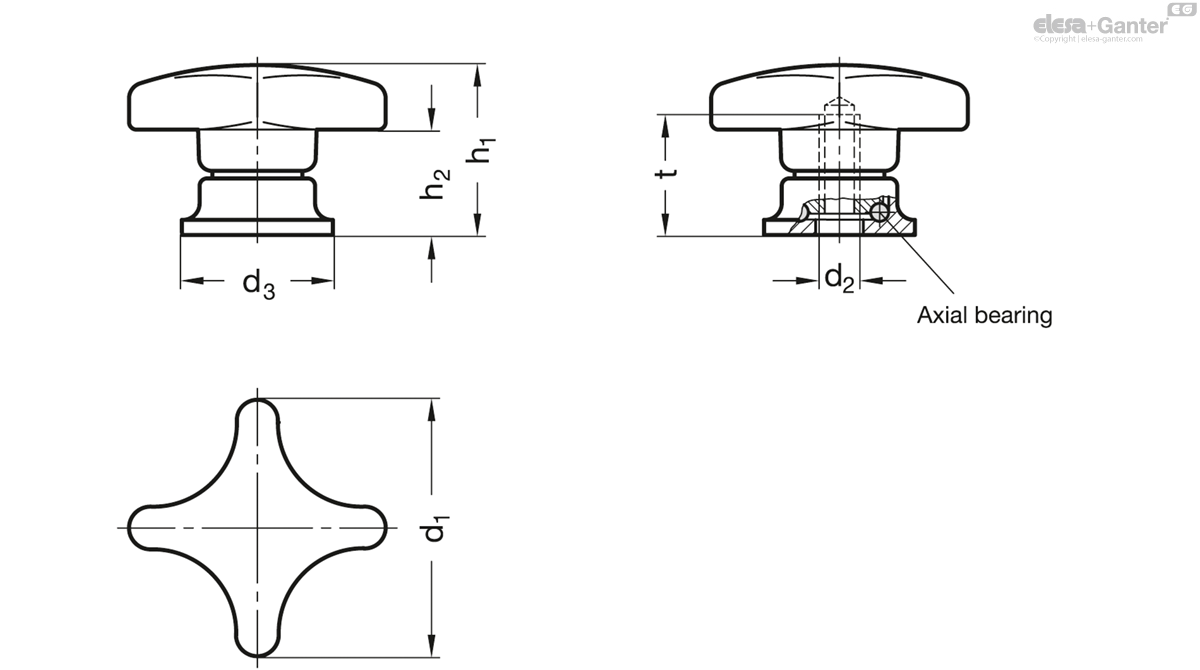

Caractéristiques techniques
- Code
- GN 6335.9-40-M6
- d1
- 40
- d2
- M 6
- d3
- 24
- h1
- 27
- h2
- 15.5
- t min.
- 14.5
- 40
Plastic
Technopolymer (Polyamide PA)
- shock-resistant
- black, matt finish
Bushes
high quality steel
nitrided, blackened
Hand knobs GN 6335.9 have a clamping contact area which is connected to the knob via an axial ball bearing. This has led to the following advantages:
Doubled clamping force through vastly reduced friction. There is no movement on the contact area between star knob and component which greatly reduces any marking on the clamping area. In addition a reduced creep factor has been achieved by the indreased preload.
- with threaded bolt
