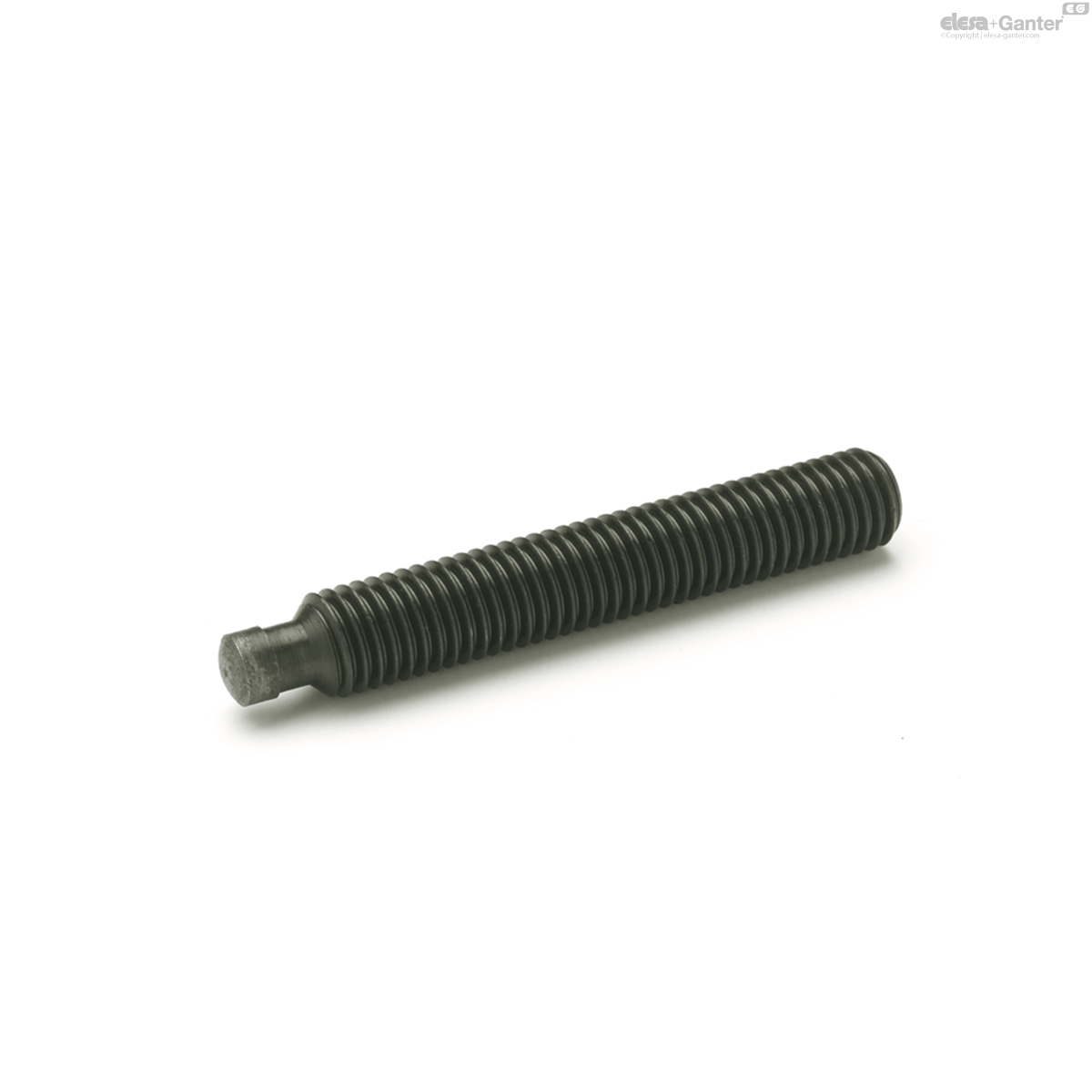

6332-M10-45-SKN
DIN 6332 Noirci
Délai: 1-2 semaines Toutes les tailles et variantes de DIN 6332
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

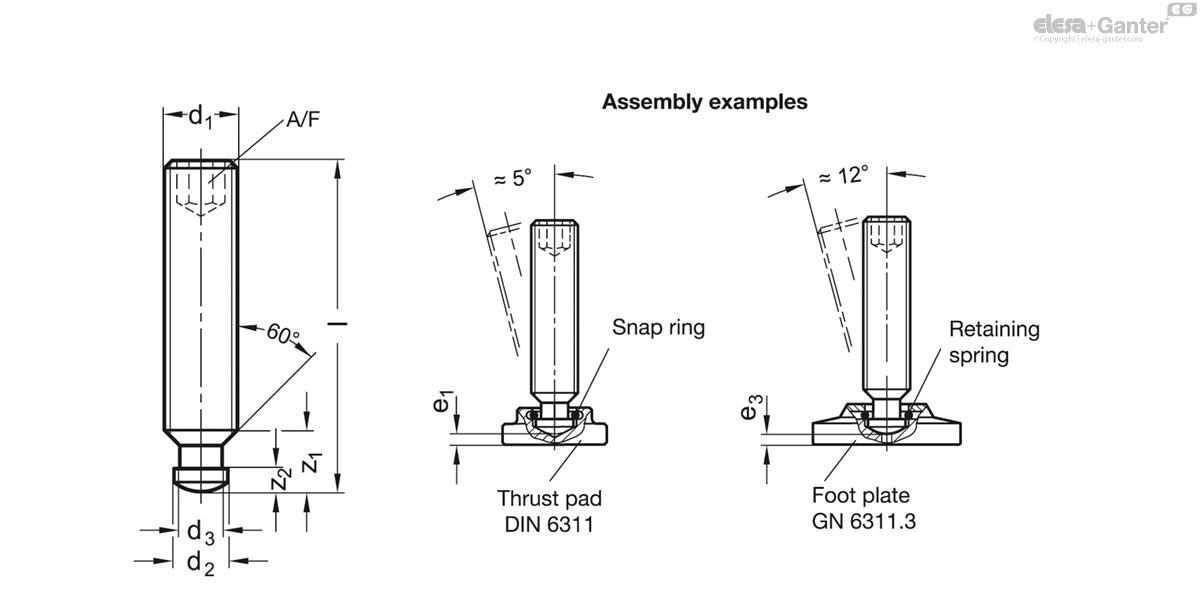

Caractéristiques techniques
- Code
- DIN 6332-M10-45-SKN
- d1
- M 10
- l
- 45
- d2 h11
- 8
- d3
- 7.2
- e1 ≈
- 3.6
- e2 ≈ Type A
- 2.6
- e2 ≈ Type P
- 5.6
- A/F
- 5
- z1 ≈
- 9
- z2 ≈
- 4.5
- 20
Types
- Type SK: with thrust point, hardened (only in steel, blackened)
- Type SKN: with thrust point, not hardened
Steel
Tensile strength class 5.8
blackened
Thrust point hardened (Type SK)
Thrust point not hardened (Type SKN)
zinc plated, blue passivated ZB
Thrust point not hardened (Type SKN)
Stainless Steel AISI 304 NI
Thrust point not hardened (Type SKN)
The thrust point of the grub screws DIN 6332 is designed to be used with or without the thrust pad for clamping.
The pin diameter of the grub screws is smaller than the core diameter of the thread, allowing them to be screwed in on the pin side.
The snap ring resp. snap spring of the thrust pad is a simple and quick method to connect the thrust pad to the grub screw.
