6304-M16-110-F DIN 6304-F With thrust pad DIN 6311

6304-M16-110-F

DIN 6304-F With thrust pad DIN 6311

avec barre fixe
  • RoHS

Délai: 1-2 semaines Toutes les tailles et variantes de DIN 6304

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
DIN 6304-M16-110-F
d1
M 16
l1
110
d2
24
d3
12
d4 h11
12
l2
20
l3
120
l4
20
l5 ≈
5.3
z ≈
10.6
weight
350

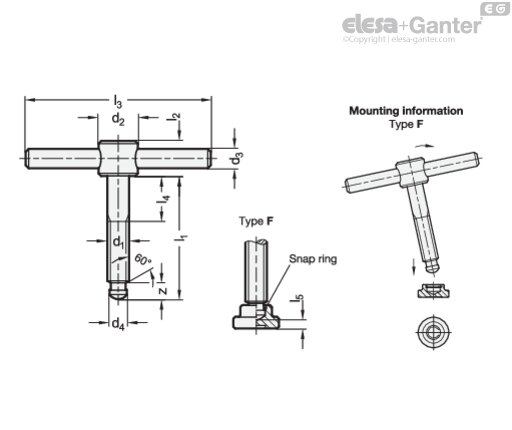

6304-M16-110-F drawing

Types

  • Type E: Without thrust pad
  • Type F: With thrust pad DIN 6311

Tommy screw

Steel

  • Property class 5.8
  • Blackened
  • Thrust point hardened

Thrust pad for type F

Steel

  • Case-hardened
  • Blackened
  • Snap ring
  • Spring steel wire

The thrust point of these screws DIN 6304 is designed to be used with or without a thrust pad for clamping. Installation of the thrust pad is made easier if the pivot is positioned at an angle against the closed side of the snap ring and then pressed in.

In place of DIN 6311 (type E), it is also possible to use a thrust pad GN 6311.1 or a foot plate GN 6311.3. In this case, the tommy screw and thrust pad or foot plate must be ordered separately.

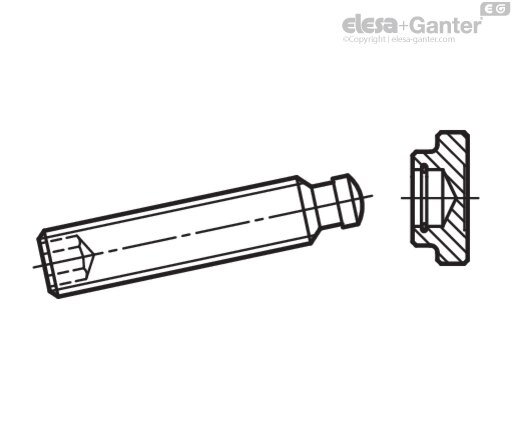

The thrust pad has to be held at an angle allowing the circlip to drop to the bottom of its groove with the split end downwards. The thrust point is then offered up to the split end of the circlip at the lowest possible angle and pressed home.
