607.3-8-10-ST GN 607.3 Doigts d'indexation

607.3-8-10-ST

GN 607.3 Doigts d'indexation

pour installation dans un équipement à paroi mince , avec position de repos
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de GN 607.3

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 607.3-8-10-ST
d1 Pin -0.02/-0.04 Bore G7
8
d1 Pin -0.02/-0.05 Bore G7
8
d1 Pin -0.02/-0.05 Bore H7
8
l1
10
d2
31
d3
12
e
22
l2
40
l3
12
l4
7.5
s
1 … 5
A/F 1
19
A/F 2
16
Spring load in N ≈
initial
13
Spring load in N ≈
end
23
Axial load in N
500
62

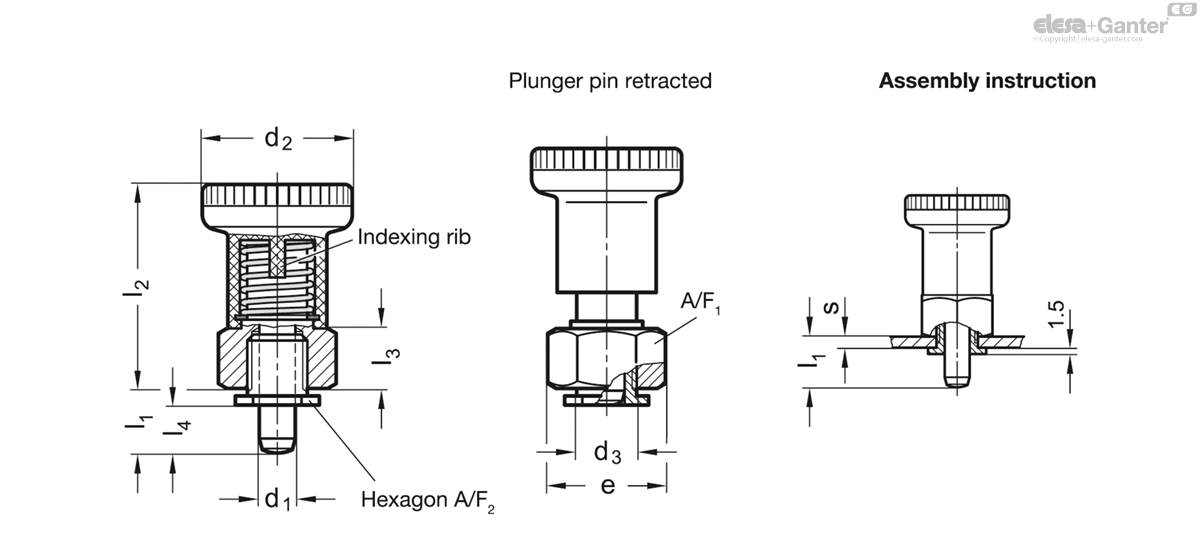

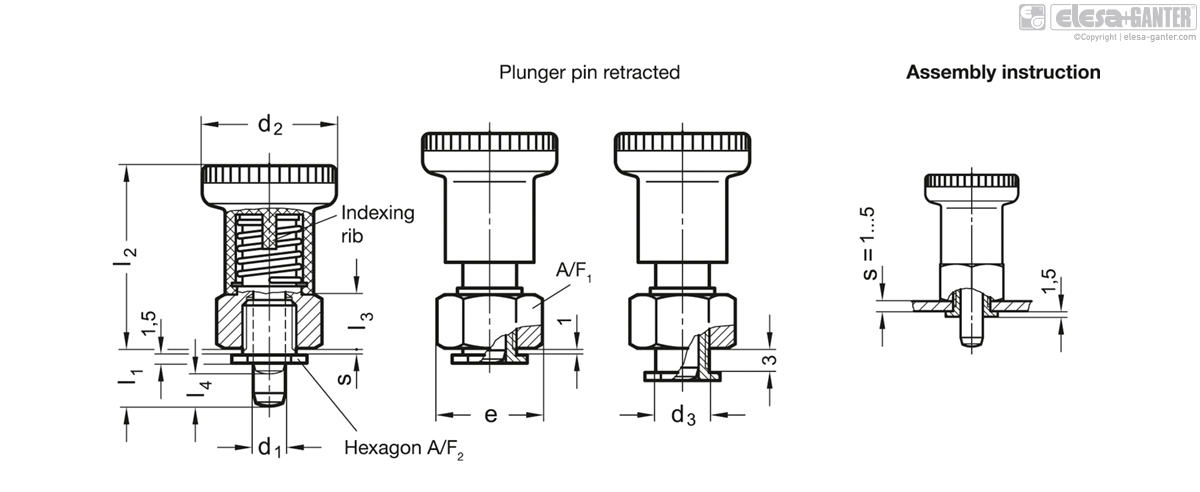

607.3-8-10-ST drawing
607.3-8-10-ST drawing

Guide Steel ST

zinc plated, blue passivated

Pin Stainless Steel AISI 303

chemically nickel plated

Knob Plastic (Polyamide PA)

  • black, matt
  • not removable

Indexing plungers GN 607.3 have been developed for installation in thin walled equipment.

It has to be taken into consideration that, depending on the mounting plate thickness 's', the protruding plunger length 'l1' and the position of the hexagon nut on its centre bush, the plunger nose might not always be fully retractable.

For design reasons the positional accuracy of this indexing plunger is not as precise as plunger GN 607 .

Indexing plungers with rest position are used for such applications where the plunger pin has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.

  • Double ring spanner GN 607.9 -SW14-SW16 (assembling aid)
