607.1-8-A-ST GN 607.1 Doigts d'indexation, Acier

607.1-8-A-ST

GN 607.1 Doigts d'indexation, Acier

Acier / Acier inoxydable, avec position de repos
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

En stock Toutes les tailles et variantes de GN 607.1

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 607.1-8-A-ST
d1 Pin -0.02/-0.05 Bore H7
8
d2
M 16 x 1.5
d3
31
e ≈
21.9
l1
54
l2 ±0.5
8
l3 -0.15
12
l4
6
A/F
19
Spring load in N ≈
initial
15
Spring load in N ≈
end
29
Axial load in N
500
60

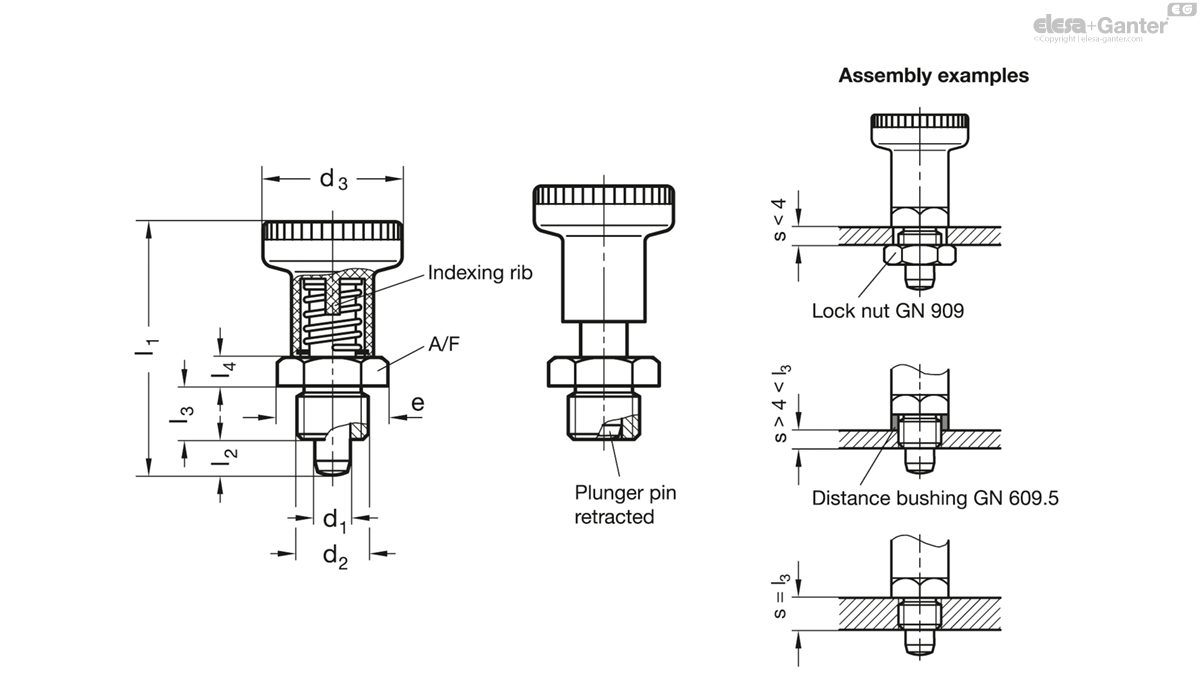

607.1-8-A-ST drawing

Types

  • Type A: without lock nut
  • Type AK: with lock nut

Version in Steel ST

  • blackened
  • Pin hardened

Version in Stainless Steel AISI 303 NI

Pin chemically nickel plated

Knob

Plastic (Polyamide PA)

  • black, matt
  • not removable

Indexing plungers GN 607.1 with rest position are used for such applications where the plunger has to stay in its rectracted position. To achieve this, the knob is roated by 90° degrees after being rectracted. A notch keept the plunger in this position.

Indexing plungers GN 607.1 are distinguished for their small dimensions. The extremely low luck nuts GN 909 / GN 909.5 enlarge the mounting options. The locking tab is an integral part of the knob thus giving reliable operations at all times.
