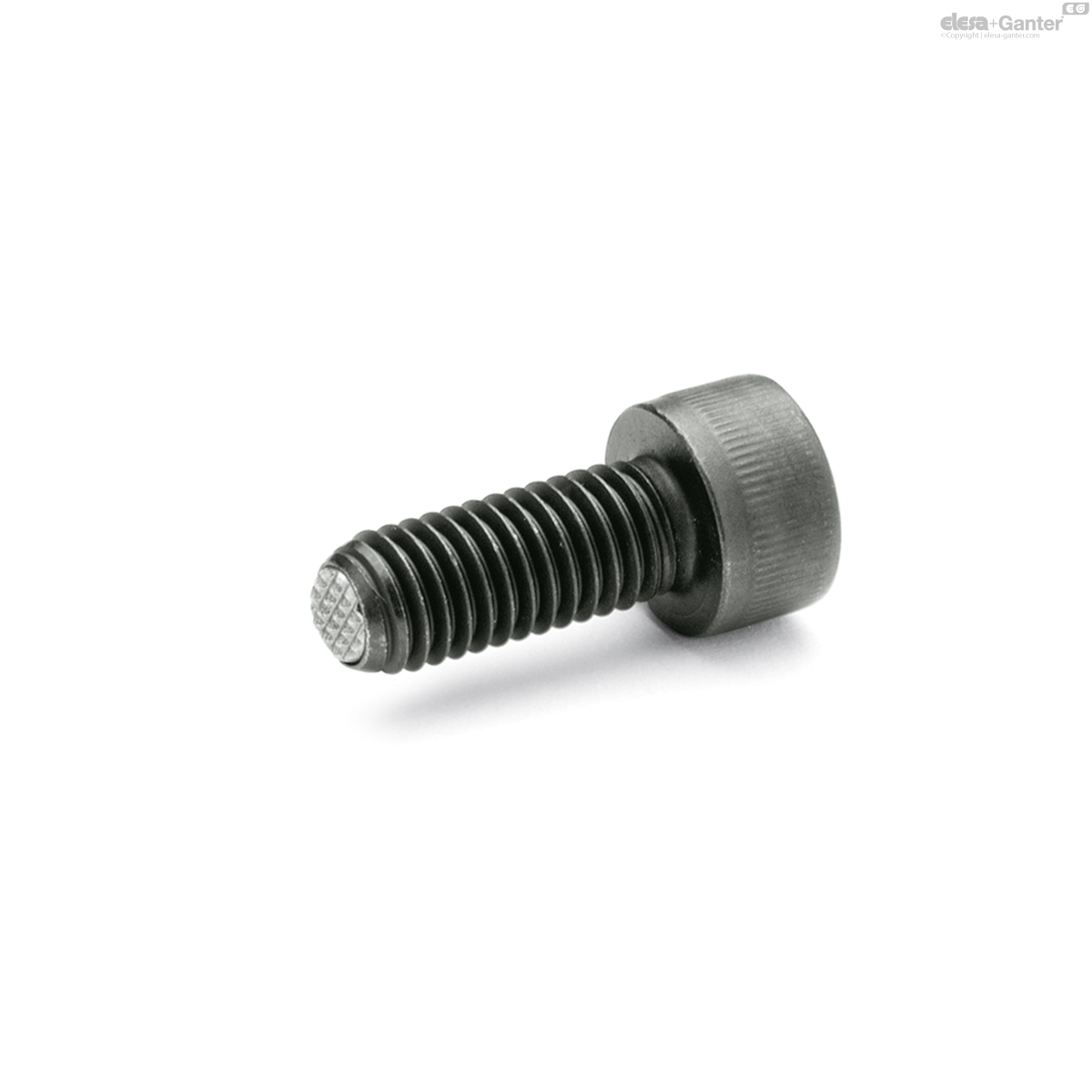

606-M8-50-B GN 606 Acier

606-M8-50-B

GN 606 Acier

Acier / Acier inoxydable
  • INOX
  • RoHS

Délai: 1-2 semaines Toutes les tailles et variantes de GN 606

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 606-M8-50-B
d1
M 8
l1
50
d3
4.5
d4
13
l3 ≈
0.8
l5
3.5
l6
8
A/F
6
Static load in N
15000
25
606-M8-50-B drawing

Version in Steel

Types

  • Type A: full ball
  • Type B: flat ball
  • Type V: flat ball, with swivel limiting stop
  • Type VR: flat ball, with swivel limiting stop, corrugated

Steel

  • Tensile strength class 12.9
  • blackened

Ball

  • hardened
  • blank

Version in Stainless Steel

Types

  • Type AN: full ball
  • Type BN: flat ball
  • Type VN: flat ball, with swivel limiting stop
  • Type VRN: flat ball, with swivel limiting stop, corrugated

Screw

Stainless Steel AISI 304

Ball

Stainless Steel AISI 440C

hardened

Ball point screws GN 606 with full ball (Type A / Type AN) are used in applications where a ball point contact is required.

The flat faced moving ball (Type B / Type BN) allows a clamping or supporting of non parallel surfaces.

The ball of Type V/VN/VR/VRN can be swivelled to a maximum of 9° to ensure that clamping is always maintained on the flat section of the ball.

  • Ball point screws with (full) plastic ball (Type AK)
