580-M20-ST
DIN 580-ST Acier
Délai: 1-2 semaines Toutes les tailles et variantes de DIN 580
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

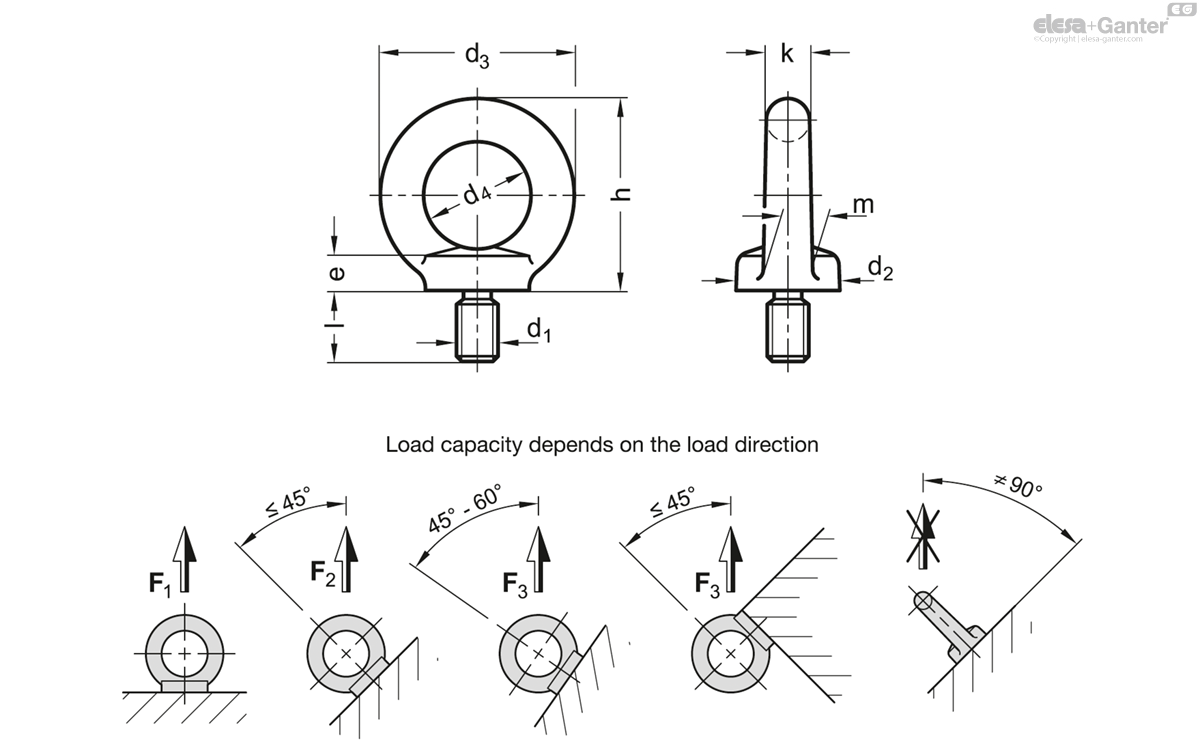

Caractéristiques techniques
- Code
- DIN 580-M20-ST
- d1
- M 20
- d2
- 40
- d3
- 72
- d4
- 40
- e
- 14
- h
- 71
- k
- 16
- Length l
- 30
- m
- 19
- F1 max. in N
- 12000
- F2 max. in N
- 8600
- F3 max. in N
- 6000
- 455

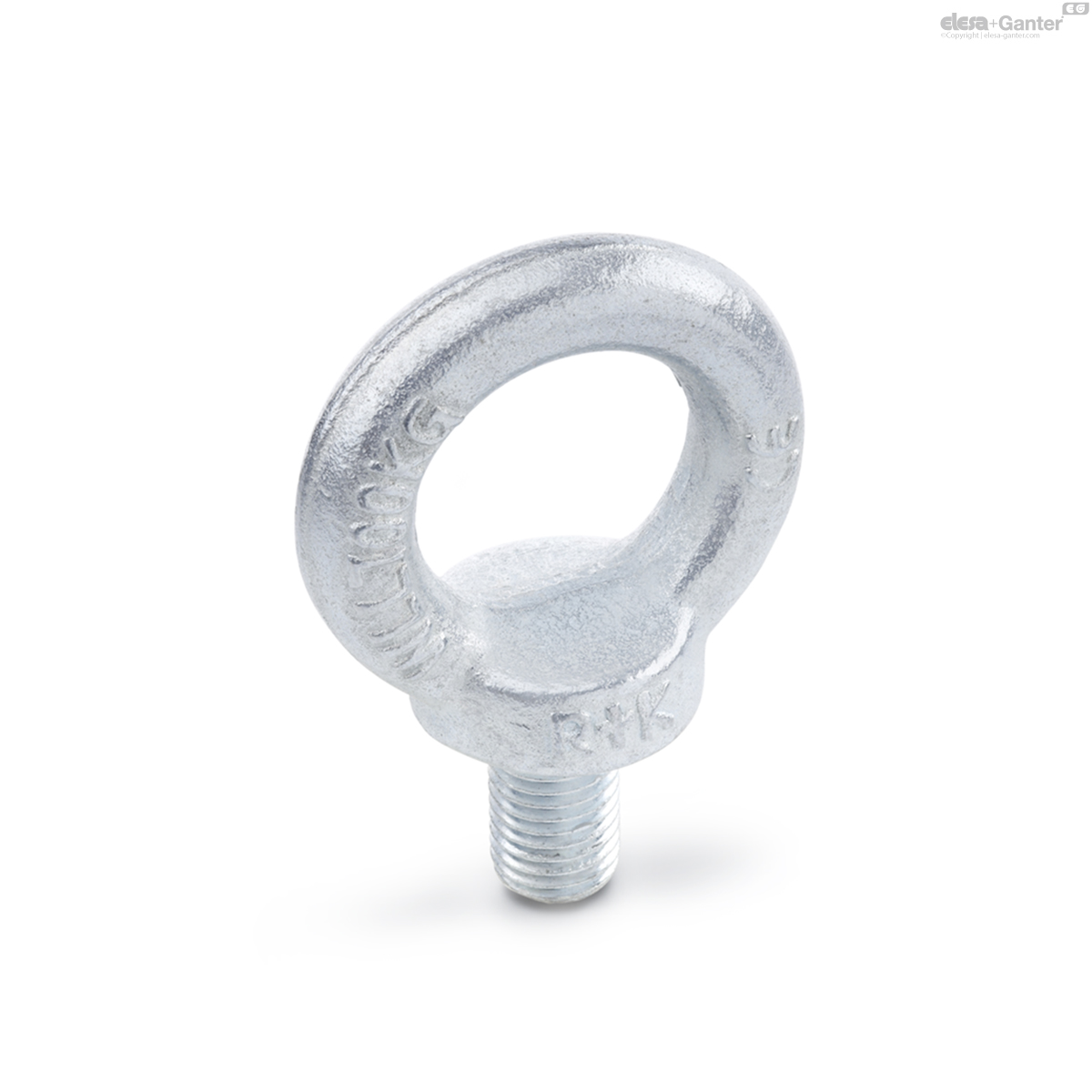

Steel C15E ST
- Drop-forged
- Annealed
- Contact face machined
- Zinc plated, blue passivated
Stainless steel NI
- Drop-forged
- Contact face machined
Stainless steel A4
- Drop-forged
- Contact face machined
The following guidelines for lifting eye bolts DIN 580 have to be observed in addition to the load values given in the above table.
The eye bolt must be of fully screwed in to achieve a perfect contact between the two mating faces.
Both threads must be of a equal length and the base material of equal strength to that of the bolt.
Other important information and notes can also be found in the operating instruction. It is part of the scope of delivery and can be downloaded as a PDF.
The official DIN standard sheet specifies the additional sizes M42, M48, M56, M64, M72x6, M80x6 and M100x6.
