5339.5-32-B6-C-MT GN 5339.5 Boutons triangle

5339.5-32-B6-C-MT

GN 5339.5 Boutons triangle

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de GN 5339.5

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 5339.5-32-B6-C-MT
d1
32
d3 H7
B 6
d4
12
h1 ≈
21
h2 ≈
12
t1 min.
12
43

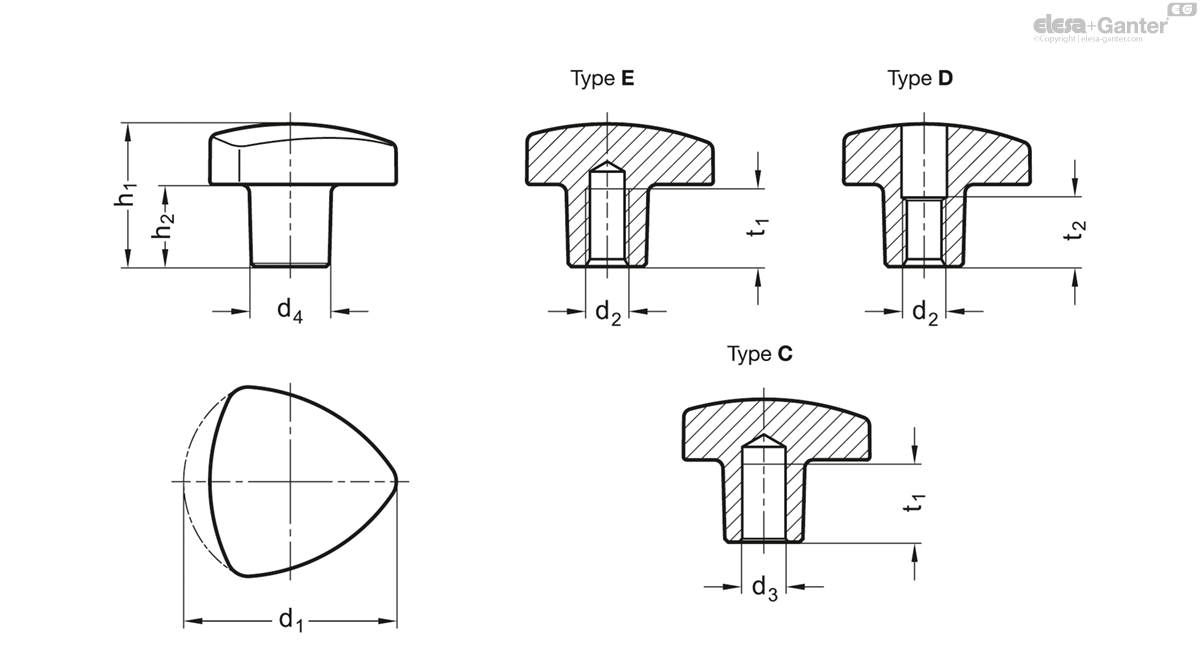

5339.5-32-B6-C-MT drawing

Types

  • Type E: with threaded blind bore
  • Type D: with threaded through bore
  • Type C: with plain blind bore H7

Stainless Steel precision casting

  • AISI CF-8
  • matt shot-blasted MT
  • highly polished PL (only type D and E)

Stainless Steel-Triangular knobs GN 5339.5 have been specially designed for use on machinery in the food industry.

The smooth and enclosed areas as well as the corner radii comply with the requirements of hygiene standards.

Original ELESA-Design, manufactured in metal version under permission of ELESA s.p.a.
