707.2-60-B32-AL
GN 707.2-AL Aluminium
Délai: 1-2 semaines Toutes les tailles et variantes de GN 707.2
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

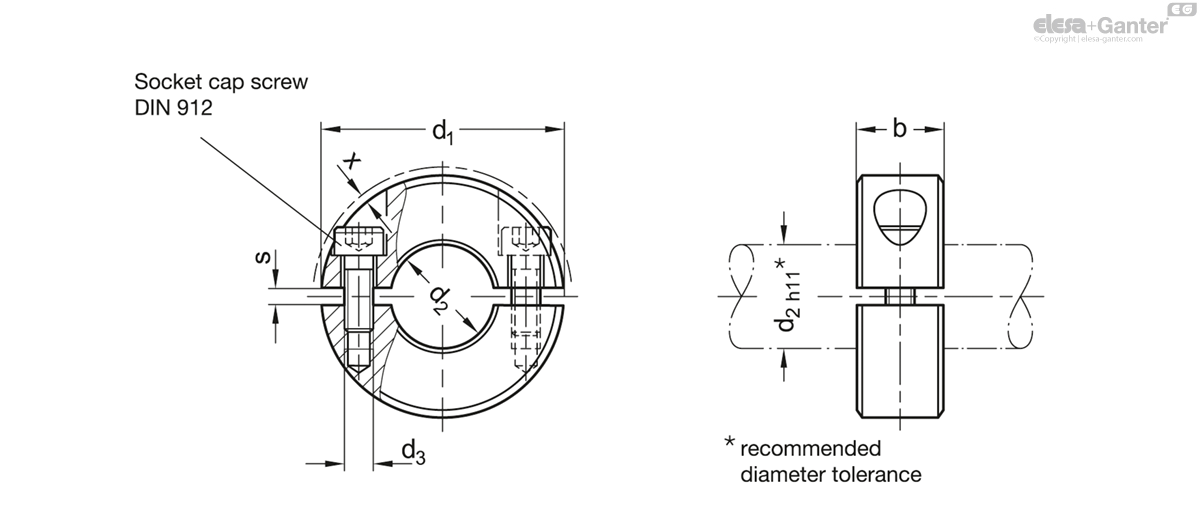

Caractéristiques techniques
- Code
- GN 707.2-60-B32-AL
- d1
- 60
- d2 H10
- B 32
- b ±0.2
- 15
- d3
- M 6
- s
- 4
- x ≈ Max. protrusion
of cap screw - 0.4
- Adjustable hand lever for d3
- 311-45-M6-19-SW
- 83
Version in Steel ST
Sintered (Distaloy AB)
Black oxidised with vapor
Socket cap screw DIN 912
Steel, plain
Version in Stainless Steel NI
Sintered AISI 316LHC
Socket cap screw DIN 912-A2
Version in Stainless Steel A4
Turned AISI 316
Weldable
Socket cap screw DIN 912-A4
Version in Aluminum AL
- Turned, tumbled
- Socket cap screw DIN 912-A2
Split shaft collars GN 707.2 correspond in measurement to the semi-split shaft collars GN 706.2. They are used when an axial assembly is not possible. These shaft collars can safely and simply be assembled by reducing the slot height with high clamping force and thus they act, for instance, like an end stop. The surface of the shaft or the axle is not damaged.
For size d1 = 16 to 36, d3 is a through hole; starting from d1 = 42, d3 is a threaded blind bore.
- Adjustable Hand Levers GN 311
- Damping Washer GN 7072.30
