481-30-400-SW GN 481 Poignées d'angle

481-30-400-SW

GN 481 Poignées d'angle

Profil du manche en aluminium, embouts en zinc moulé sous pression
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de GN 481

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 481-30-400-SW
d1 -0.5
30
l1
400
l1 +2
400
l1 ±2
400
a1
18
a2
9
d2
32
h1
34.5
h2 -0.1
14.5
l2
406
250

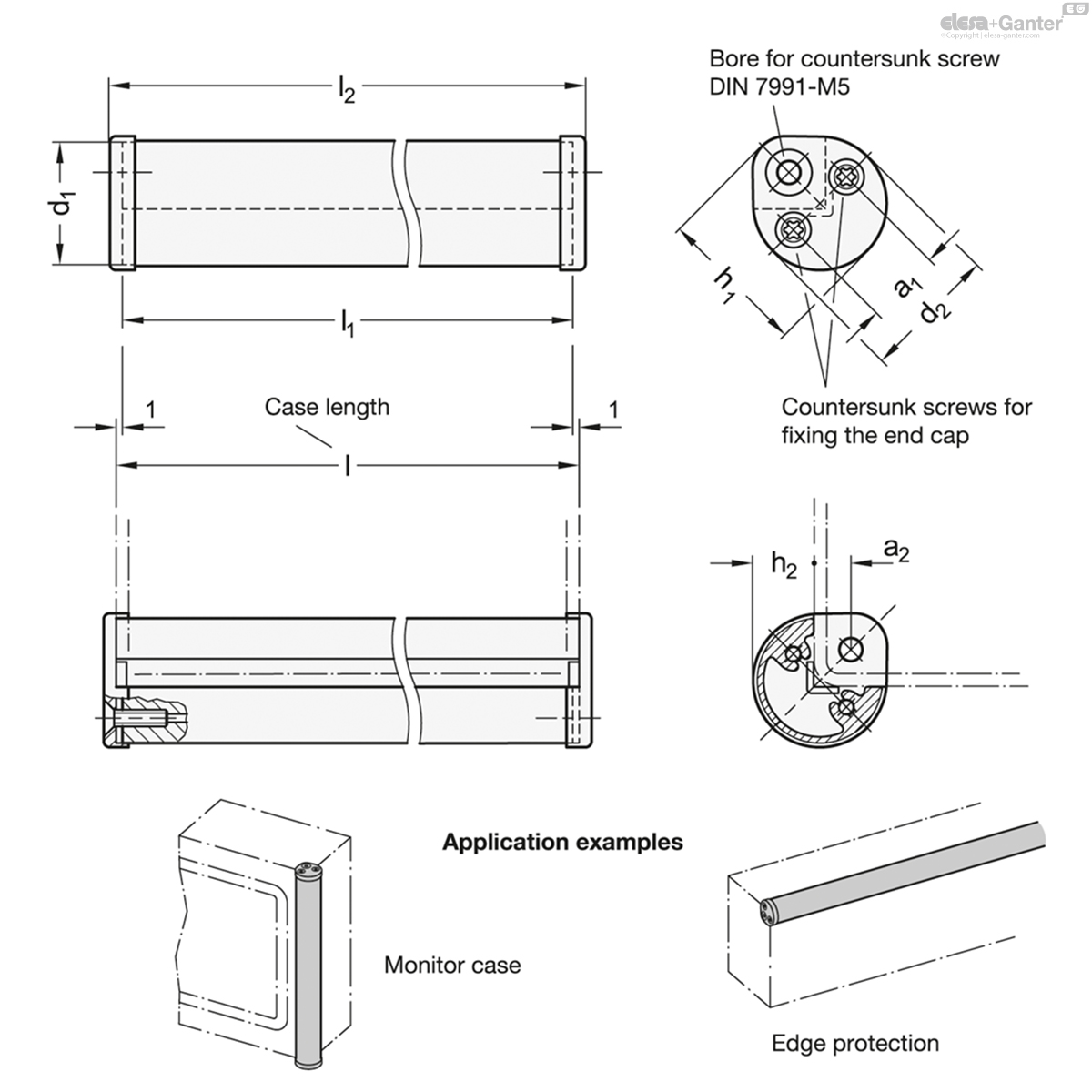

481-30-400-SW drawing

Handle profile

Aluminum

  • Black, RAL 9005, textured finish SW
  • Anodized, natural color ES

End pieces

Zinc die casting

Powder coated

Black, RAL 9005, textured finish

Countersunk screws

  • Self tapping, with internal hexalobular
  • Black, zinc plated

Edge handles GN 481 are particularly compact and are used, for example, on the side of monitor housings as a handling aid or generally to protect the edges of housings.

Tolerance compensation of 1 mm per end cap simplifies installation. The two end caps are mounted to the handle profile with self-tapping countersunk screws so they can be screwed back on after adjusting the length of the handle without requiring readjustment. This allows the length of the housing to be adapted to any desired size.

Other lengths l1

Other finishes
