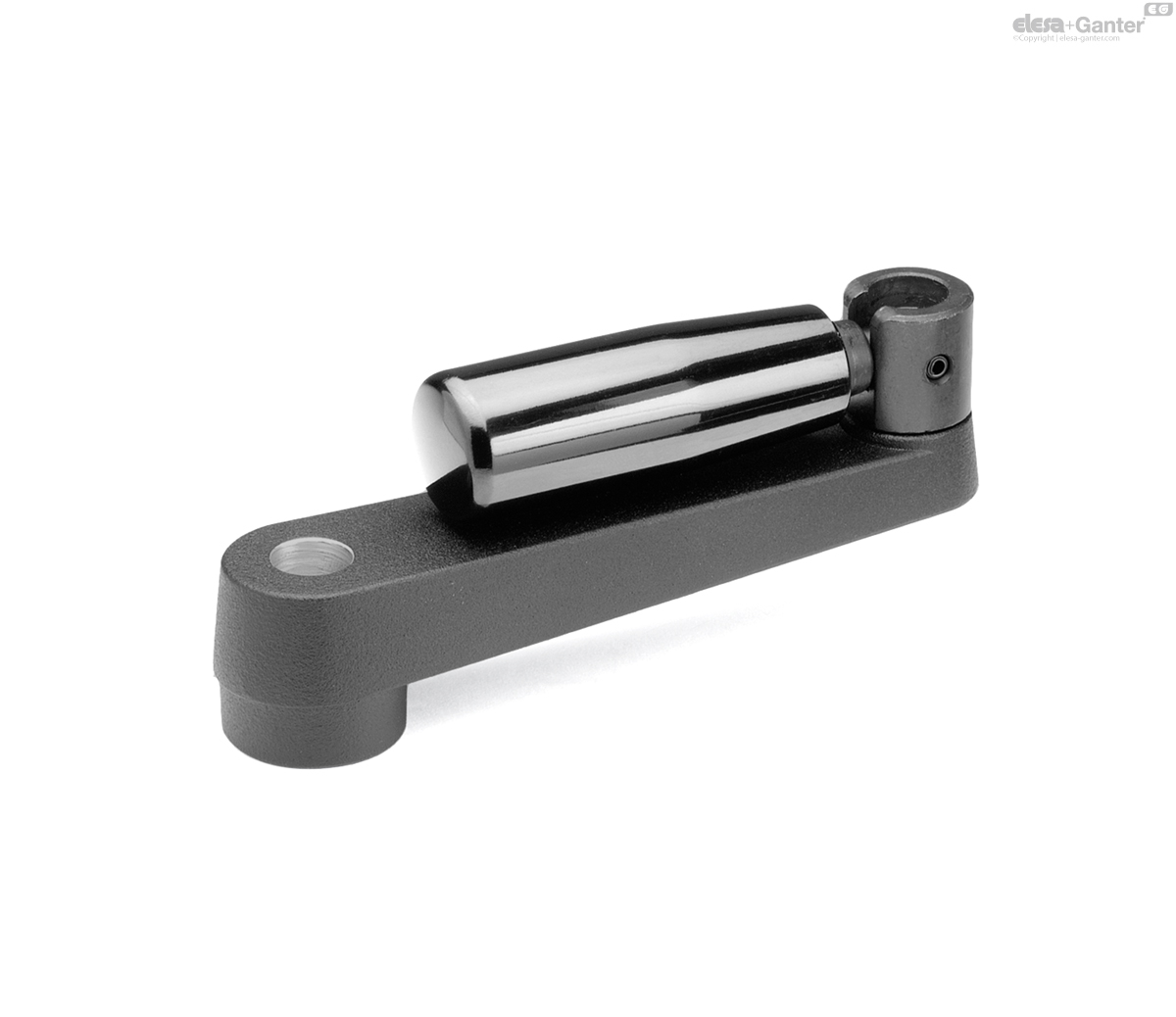

GN 471.3-B Alésage
Aluminium
Délai: 1-2 semaines Toutes les tailles et variantes de GN 471.3
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

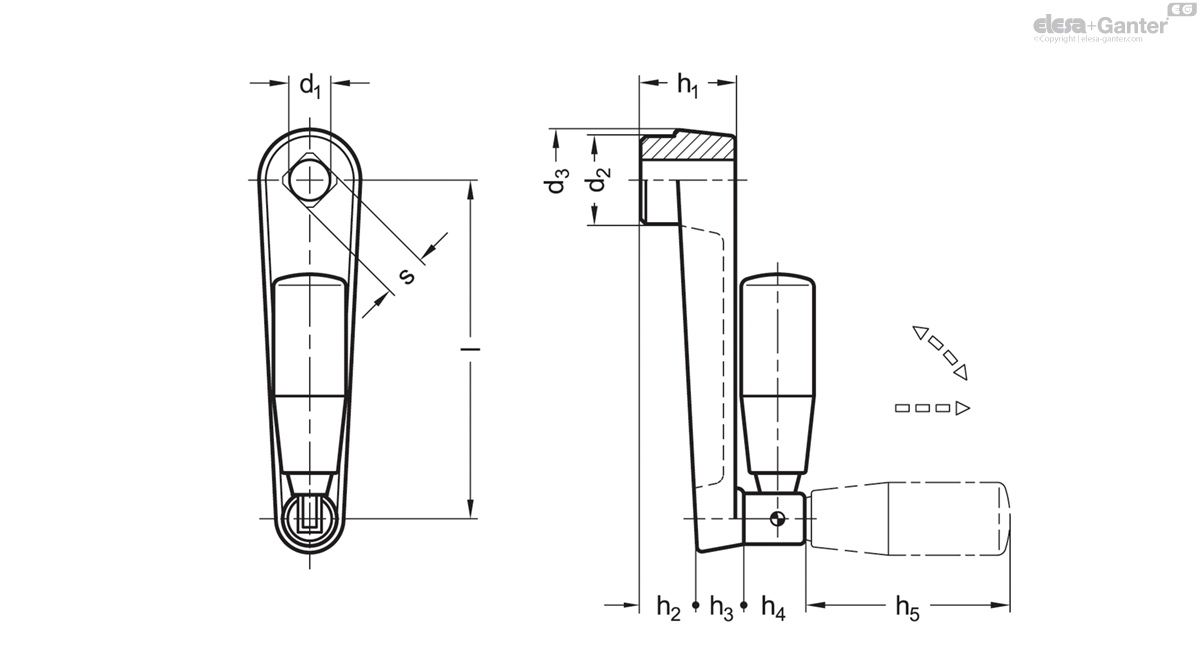

Caractéristiques techniques
- Code
- GN 471.3-160-B17
- l
- 160
- d1 H7 bore
- B 17
- d2
- 35
- d3
- 39
- h1
- 38
- h2
- 26
- h3
- 16
- h4
- 19.5
- h5 ≈
- 82.5
- Ø Handle
- 26
- 346
Body
Body
Aluminum
- Powder coated
- Black, textured finish
- Contact face of hub machined
Retractable Handle GN 598.3
Retractable Handle GN 598.3
Plastic, Polyamide (PA)
- Black, shiny finish
- Retractable Mechanism
- Steel, blackened
The handle of the cranked handles with retractable handle GN 471.3 is locked in a tapered bore in the operating position.
For tilting, the handle must first be pulled out of the taper in axial direction.
A pressure spring holds the handle in both end positions. When folded out, it automatically re-engages.
- with Retractable Handle GN 598.5
- (Retractable Mechanism Stainless Steel)
