3670-80-B12 DIN 3670-B Sans rainure de clavette

3670-80-B12

DIN 3670-B Sans rainure de clavette

Aluminium
  • RoHS

Délai: 1-2 semaines Toutes les tailles et variantes de DIN 3670

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
DIN 3670-80-B12
d1
80
d2H7 Bore
12
b
14
d3
26
l1
16
l2 ≈
29
127

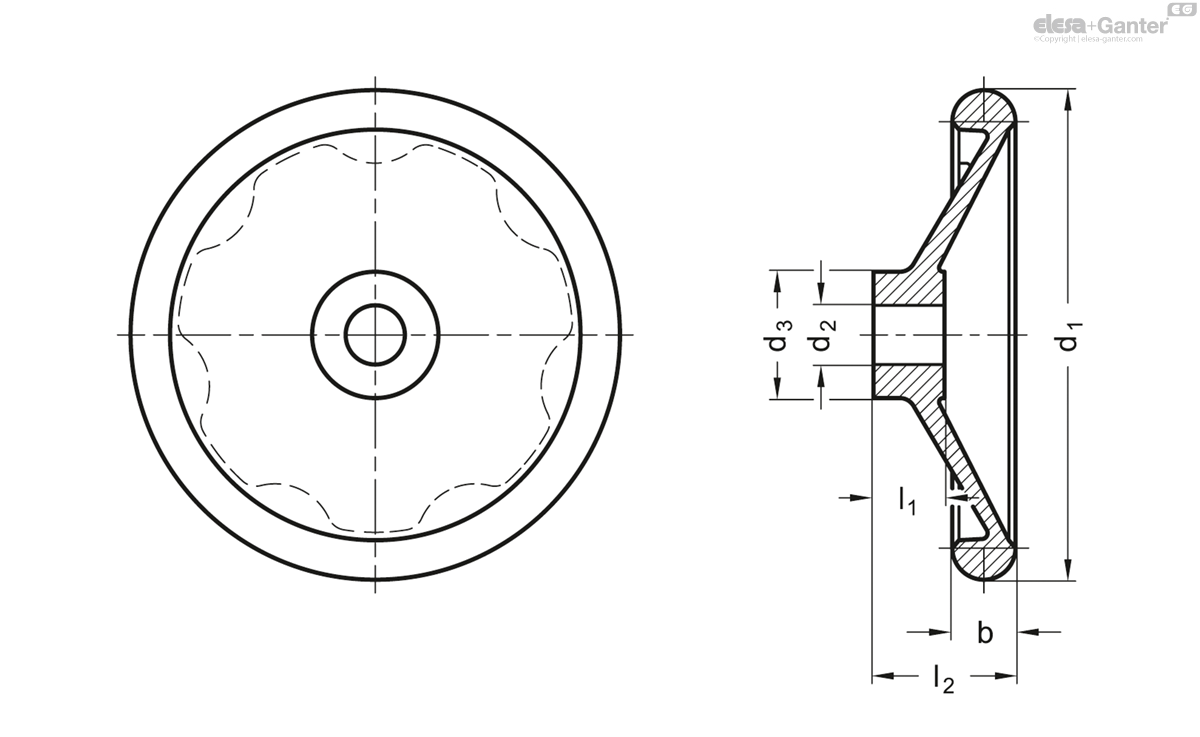

3670-80-B12 drawing

Bore codes

  • Version B: Without keyway
  • Version K: With keyway DIN 6885-1 P9

Aluminum

  • Hub machined
  • Rim
  • turned and polished
  • Radial and axial runout of the rim < 0.4
  • Unmachined body shot-blasted

Disk handwheels DIN 3670 have recessed grips at their back. As a rule they are supplied without handle, but the mounting of a handle is possible.

The handwheel diameter d1=80 and d1=400 are not provided in the official standard sheet.

  • GN 184 Countersunk Washers (for Axial Fixing)
