346-16-M8 GN 346 Patins à rotule

346-16-M8

GN 346 Patins à rotule

  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de GN 346

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 346-16-M8
d1
16
d2
M 8
l1 ≈
19
l2
7
t min.
9
A/F
12
Static load
in kN
5
18

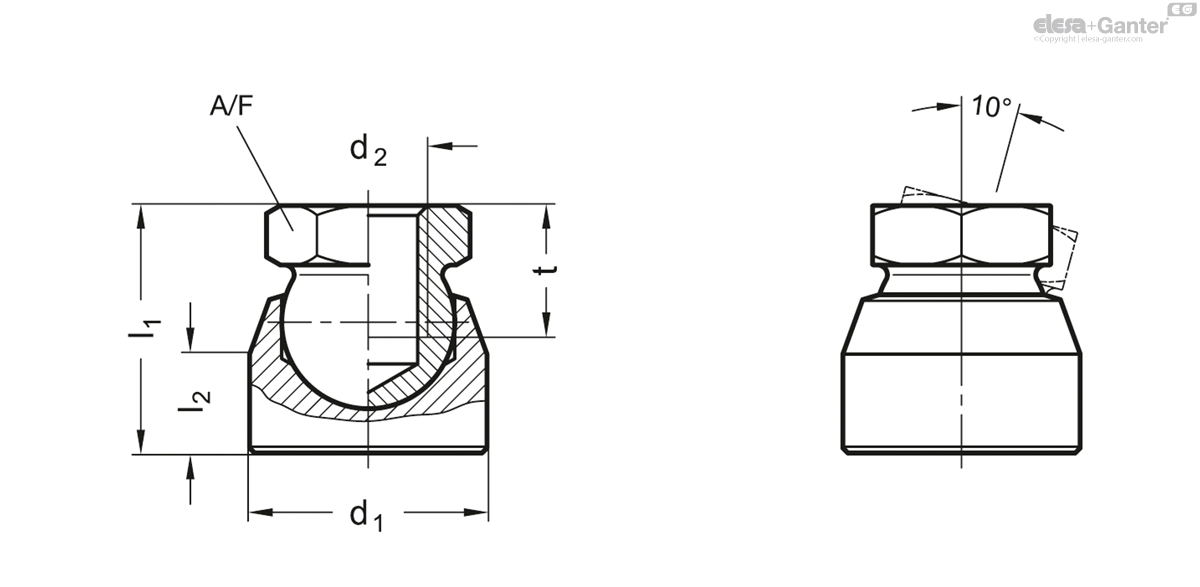

346-16-M8 drawing

Steel

  • Tensile strength class 5.8
  • zinc plated, blue passivated

Ball joint thrust pads GN 346 are in general used for transfer of clamping forces. They adjust themselves to uneven or non-parallel surfaces and clamp without twisting the clamped parts.

The values were arrived at by a series of tests whereby a limited number of ball joint pads were subjected for a limited time to a vertical static load to the pads.

At the values given in the table a permanent deformation of the ball is almost impossible.

Ball joint thrust pads GN 346 can also be used as levelling feet with a small foot diameter.
