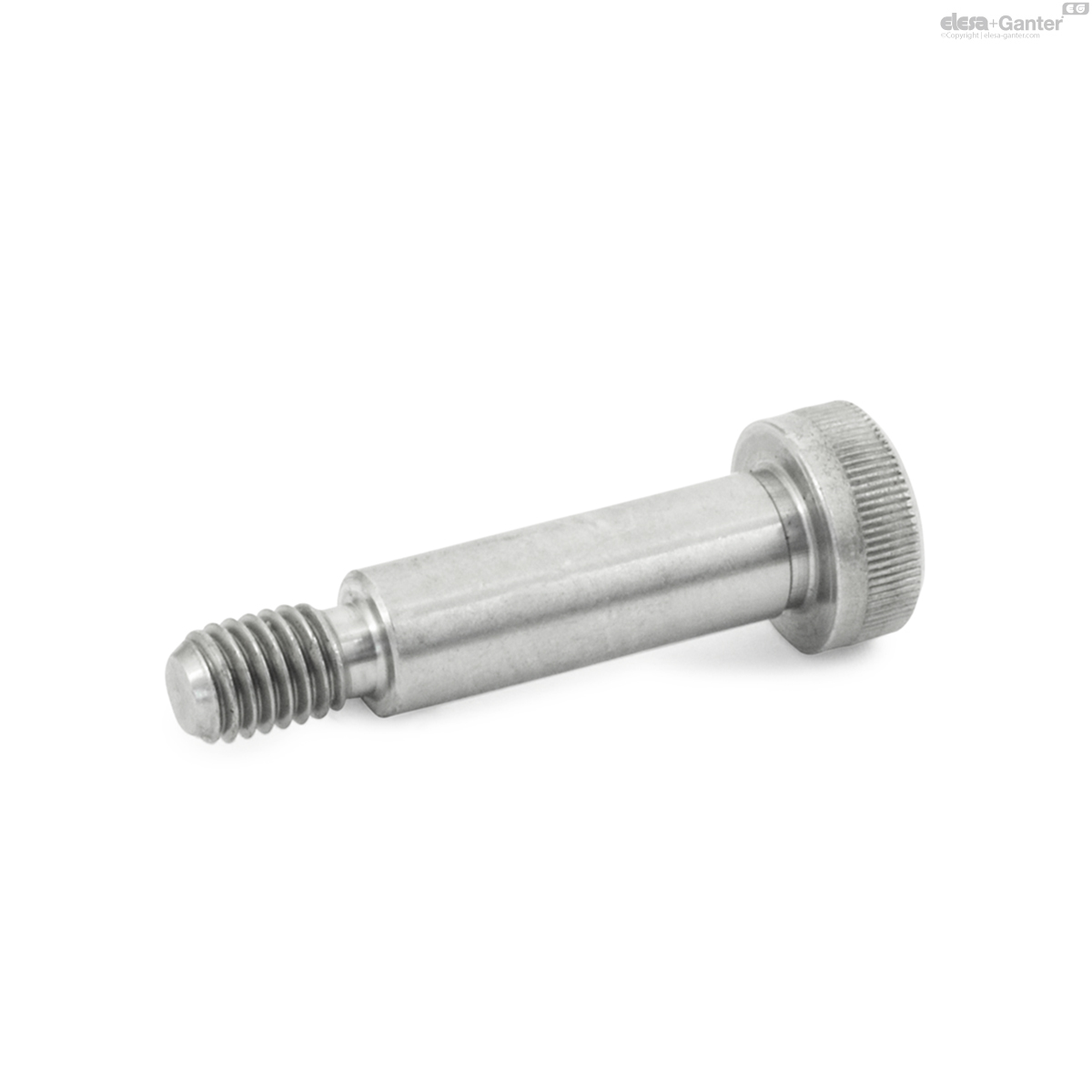

7379-12-M10-16-NI ISO 7379-NI Acier inoxydable

7379-12-M10-16-NI

ISO 7379-NI Acier inoxydable

Acier / Acier inoxydable, avec collier
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Délai: 1-2 semaines Toutes les tailles et variantes de ISO 7379

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
ISO 7379-12-M10-16-NI
d1 f9
12
d2
M 10
l1 +0.25
16
d3
18
l2
16
l3
9
A/F
6
36
7379-12-M10-16-NI drawing

Version in Steel

  • Property class 12.9
  • Blackened
  • Fit dimension d1 ground

Version in Stainless Steel

  • AISI 304 NI
  • Fit dimension d1 ground

Shoulder screws ISO 7379 are cost-saving construction elements for a wide variety of different uses.

The maximum tightening torque must not be defined by strength class 12.9, it is instead limited by the relatively small bearing points (shoulders) and by the recesses at the transition point from d1 to d2 and d3.

The ISO standard sheet allows for screws with or without knurled head.

Standard deviation:

- no information about the concentricity 2 IT 13 and 2 IT 10

- the official ISO standard sheet has the following dimensions for d1 - d2: 6.5-M5 / 13-M10 / 25-M20

- the dimensions 4-M3 and M4-M5 are not included in the official ISO standard sheet
