ESP.110-EH-C3
ESP. Poignées de sécurité
Délai: 1-2 semaines Toutes les tailles et variantes de ESP.
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte

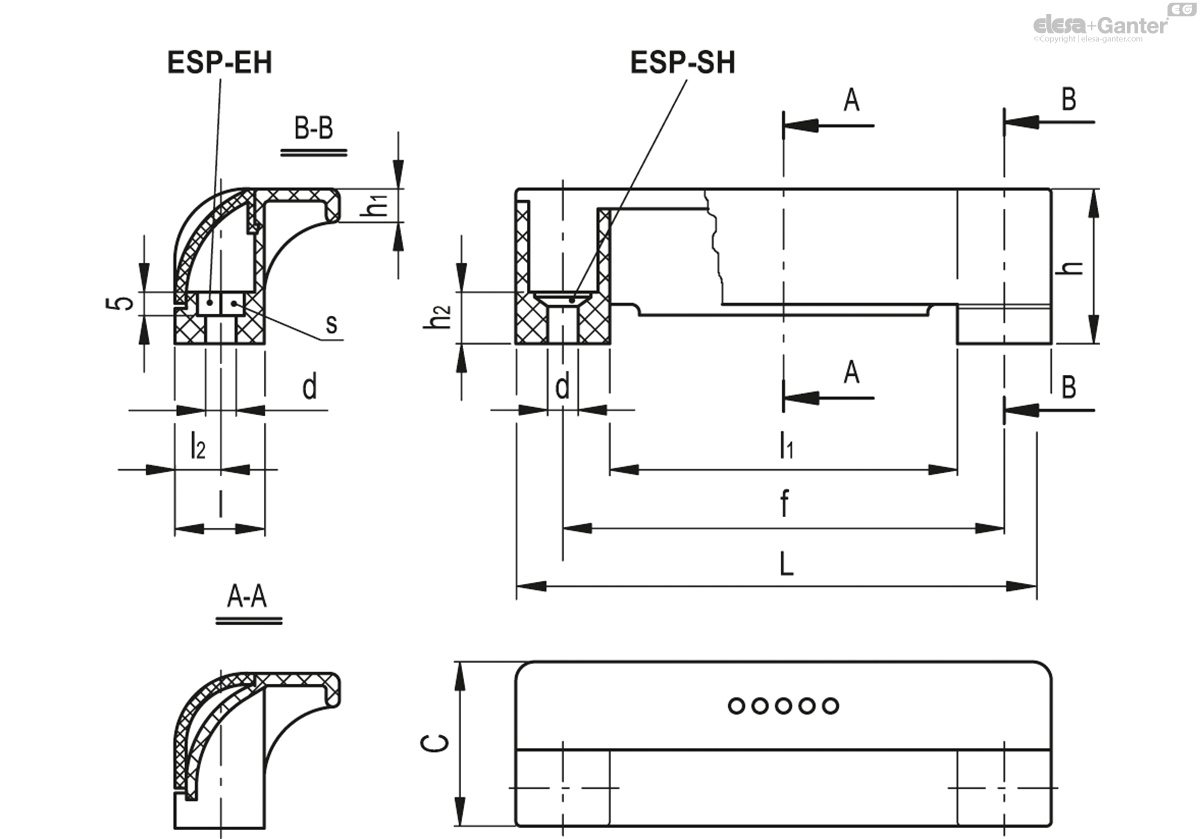

Fiche technique
Caractéristiques techniques
- Code
- 265111-C3
- L
- 114
- f±0.5
- 93.5
- d
- 6.5
- s
- 10
- h
- 33
- h1
- 7
- h2
- 11
- C
- 35
- l
- 19
- l1
- 74
- l2
- 9.5
- F1
[N] - 900
- 30
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.
Screw cover
- ECO.S: polyester based technopolymer (PBT) in Elecolors colours, glossy finish, press-fit assembly. Supplied.
Available also as accessories sold separately (see table).
Standard executions
- ESP-EH: pass-through holes for cylindrical-head screws with hexagon socket, hexagonal-head screws or standard lock nuts.
- ESP-SH: pass-through holes for countersunk head screws.
Features and applications
ESP handles have been especially designed to fit machine guards or automation systems with double-leaf door. The special closed design of the handle represents a safety element for the operator's fingers. Moreover, the coloured cover improves the visibility of the handle and offers the possibility of product customisation.
Technical data
Tensile stress: F1 value reported in the table is the result of breaking tests carried out with an appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
Maximum tightening torque for screw assembly 3 Nm.
Accessories on request
- ECO.S: polyester based technopolymer (PBT) cover, in Elecolors colours, glossy finish, press-fit assembly (see table).
