ELCR.118 A-12-C1
ELCR. Contrôler le foie
Délai: 1-2 semaines Toutes les tailles et variantes de ELCR.
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

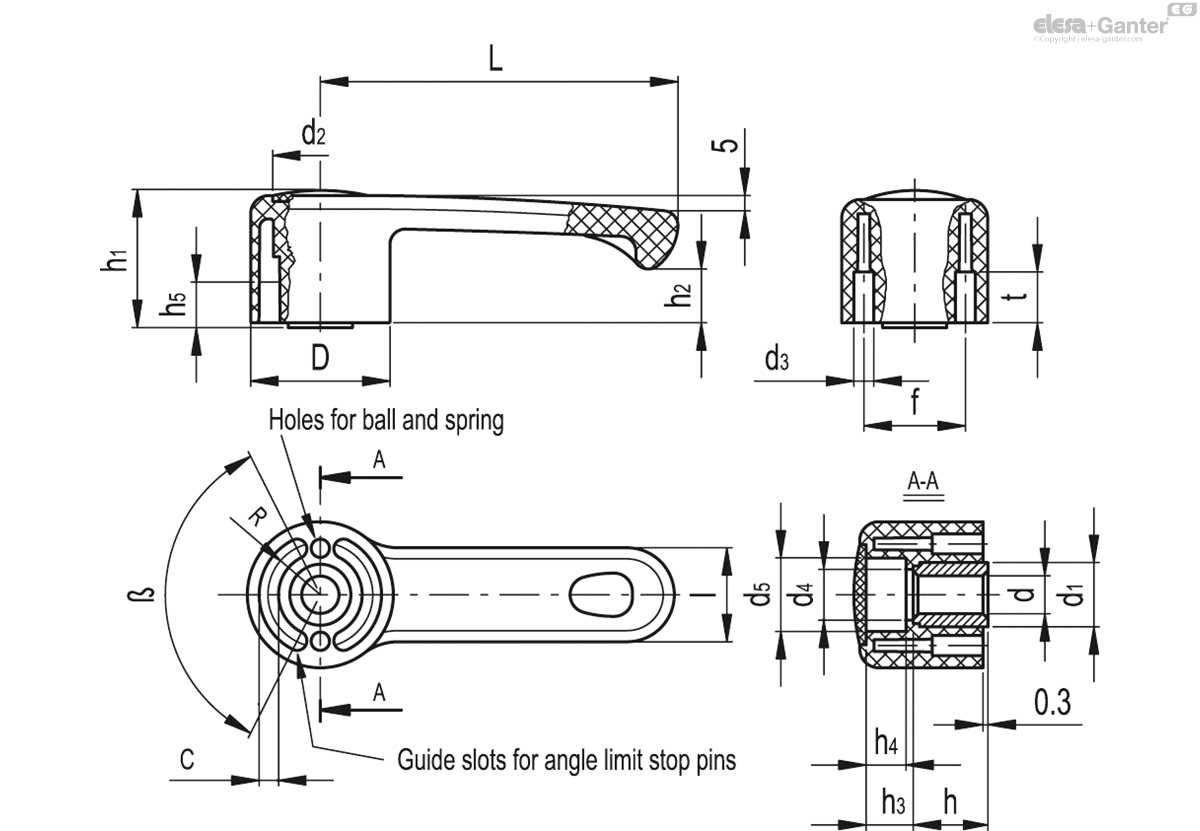

Caractéristiques techniques
- Code
- 212241-C1
- D
- 46
- dH7
- 12
- L
- 118
- h
- 22
- h1
- 44
- h2
- 18.5
- h3
- 19
- h4
- 17
- h5
- 10
- d1
- 22
- d2
- 31.5
- d3
- 6
- d3*
- 6
- d4
- 17
- d5
- 25.5
- l
- 29
- R
- 17.5
- t
- 15.5
- c
- 6.5
- β
- 125±1°
- f
- 32
- 135
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.
Boss cap
- ECB.T: glass-fibre reinforced polyamide based (PA) technopolymer, in Elecolors colour, matte finish, press-fit assembly. Supplied, removable by a screwdriver.
Available also as accessory sold separately (see table).
Standard execution
Black-oxide steel boss, H7 reamed hole
Features and applications
Control levers ELCR. have a straight lever, parallel to the clamping surface. Particularly suitable when the lever turning angle is limited owing to lack of space.
Ergonomy
Rotations are performed smoothly and powerfully thanks to the heavy-duty arm of the lever, while the enlarged end offers an effective grip.
Manoeuvre angle limitation

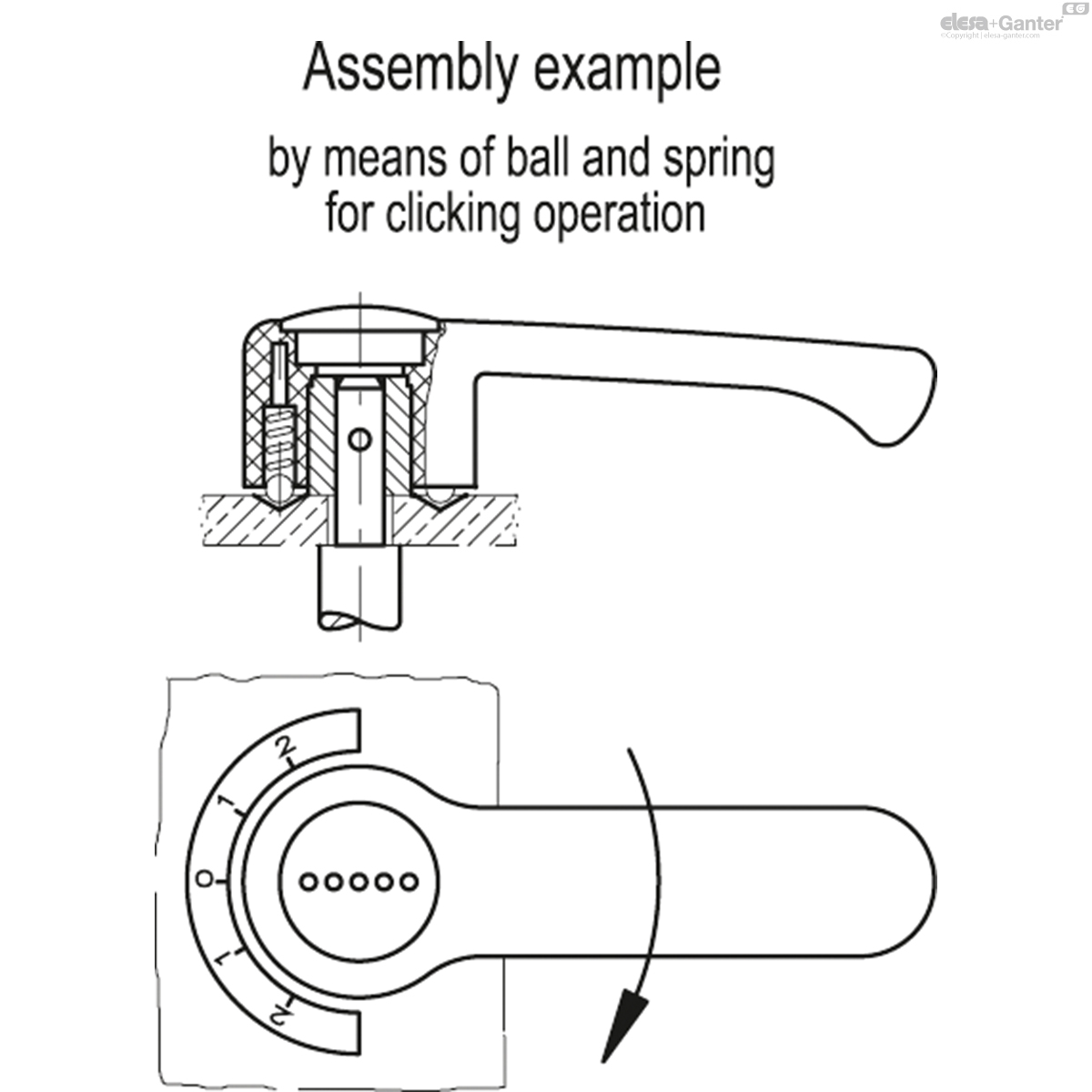

A limited manoeuvre angle is possible by fitting stop pins in the rear guide slot.
Accessories on request
- GN 184: axial retaining washer in black-oxide steel.
- MS.: ball and spring for clicking operation to be fitted into the two holes d3 drilled at 180° (see ball and spring).
- ECB.T: glass-fibre reinforced polyamide based (PA) technopolymer boss cap, in Elecolors colour, matte finish, press-fit assembly (see table).
Special executions on request
Levers with cross holes according to GN 110.
