GN 608.1 Doigts d'indexation
Délai: 1-2 semaines Toutes les tailles et variantes de GN 608.1
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 608.1-6-14
- d1 Pin -0.02/-0.05 Bore H7
- 6
- l1
- 14
- b1
- 40
- b2
- 18
- d2 -0.02/-0.1
- 10
- d3
- 25
- d4
- 4.3
- d5
- 8.3
- k
- 30
- l2
- 45
- l3 -0.15
- 2.5
- l4
- 4.5
- l5
- 6
- Spring load in N ≈
initial - 9
- Spring load in N ≈
end - 25
- Axial load in N
- 400
- 38
Guide
Zinc die casting
zinc plated, blue passivated
Knob
Plastic (Polyamide PA)
- black, matt
- not removable
Pin
Steel, hardened
Single components Steel / Brass

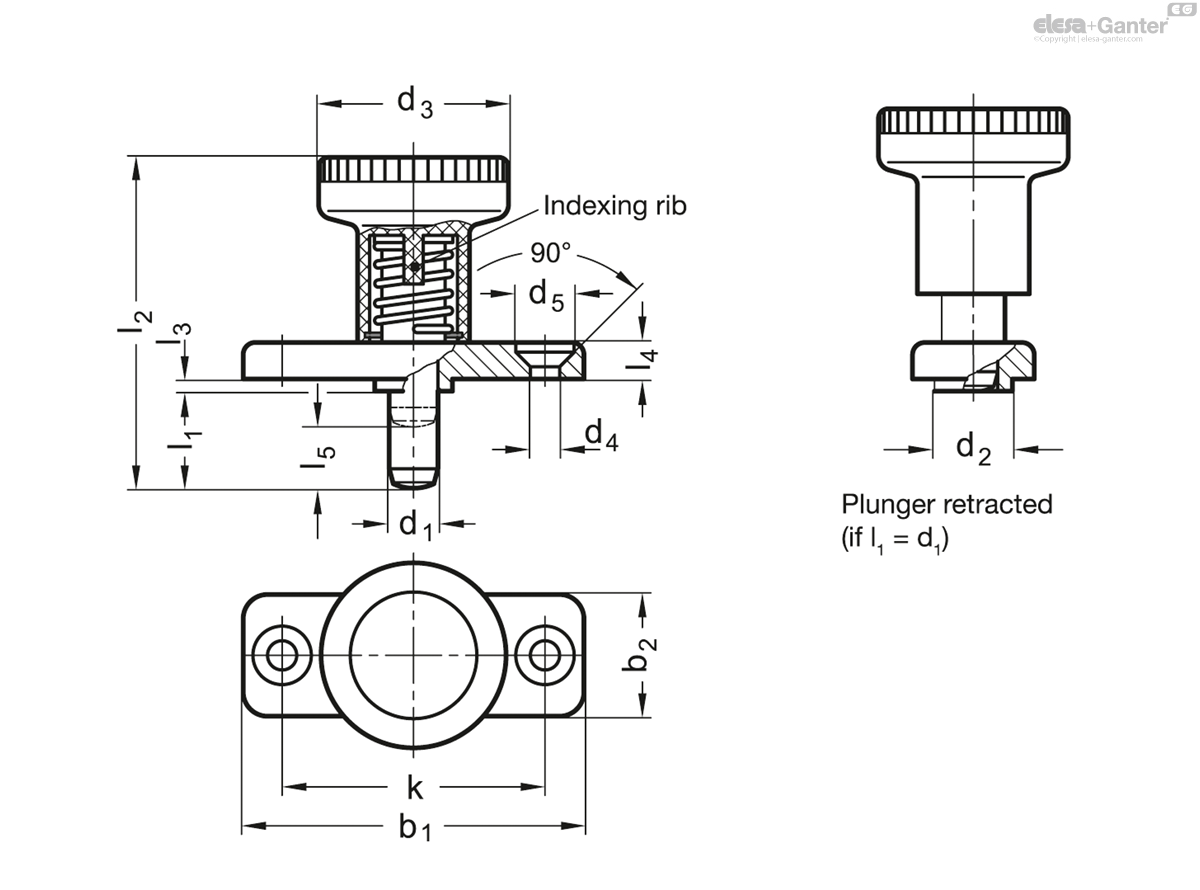

Indexing plungers GN 608.1 with rest position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
Indexing plungers GN 608.1 are distinguished for their small dimensions. The locking tab is integrated into the knob thus giving reliable operation at all times.
