LV.A-125-APS-M20x95 LV.A-APS Sans disque antidérapant

LV.A-125-APS-M20x95 LV.A-APS Sans disque antidérapant

Base en technopolymère , tige en acier
Toutes les tailles et variantes
  • PA
  • g10030
  • RoHS
  • NBR
  • ELE OD

Délai: 1-2 semaines

Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
306961
D
125
d
M20
L
150
l
95
l1
55
s
24
Max. limit static load*
[N]
40000
weight
573

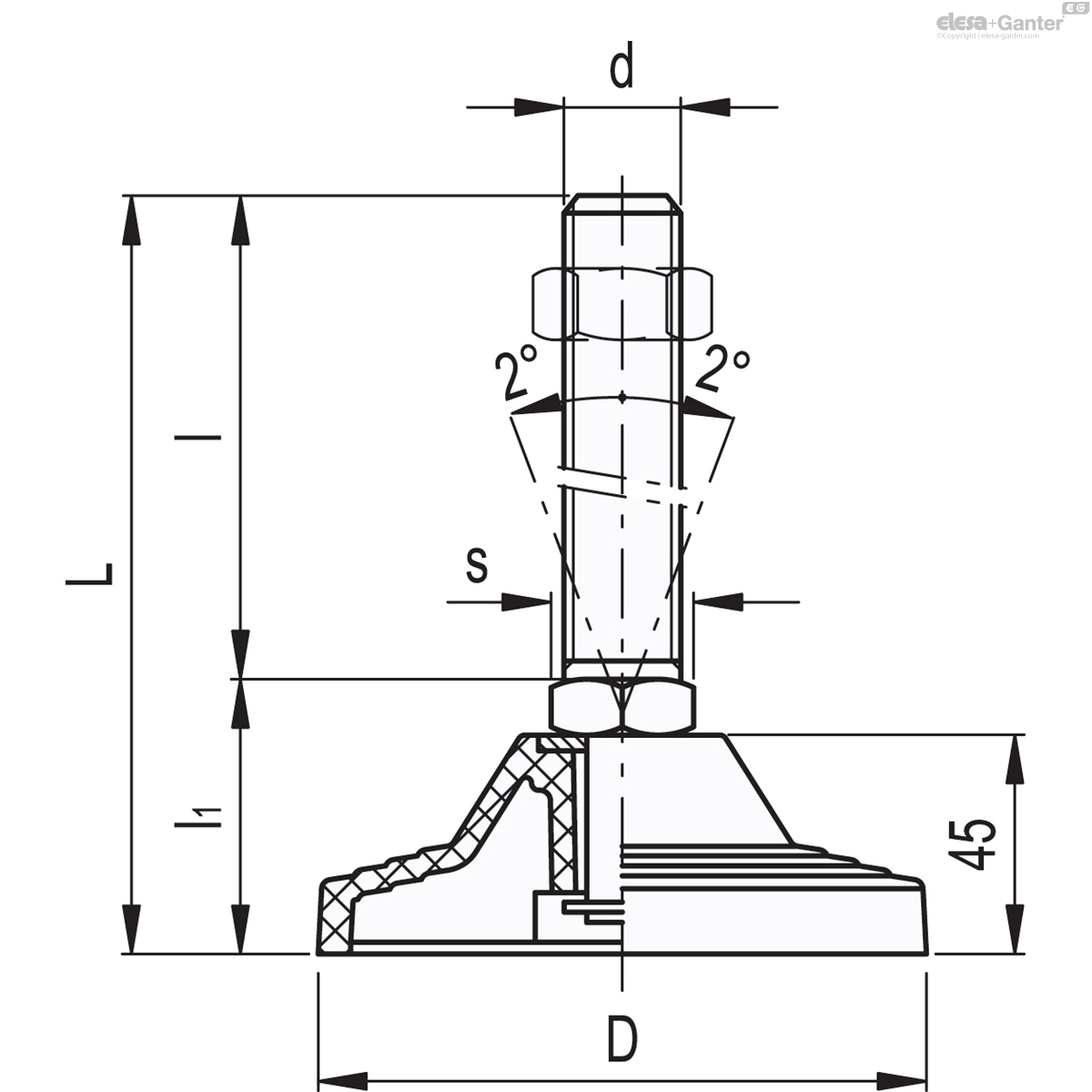

LV.A-125-APS-M20x95 drawing
* The max static load is the value above which the load applied to the element may cause some plastic material breakage, in particular conditions of use. Obviously, a factor that takes into consideration the importance and the safety level o

Base

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Through stem

Threaded zinc-plated steel with regulation hexagon, black-oxide steel retaining ring and zinc-plated steel plain washer.

Standard executions

  • LV.A-APS: without no-slip disk.
  • LV.A-APS-AS: with NBR rubber no-slip disk, hardness 90 Shore A, supplied assembled, reinforced with zinc-plated steel plate, fixed by means of two screws.

Features

The special knurling under the lower lip of the base provides excellent stability and grip when using the levelling element without no-slip disk even on surfaces that are not perfectly flat.

The components of the levelling elements (base and stem) are supplied already assembled.

Accessories on request

Zinc-plated steel nut (see Nuts NT.-).

Special executions on request

AISI 304 stainless steel stems.
