SQT.40-18-A-8
SQT. Angles pour structures profilées
Délai: 1-2 semaines Toutes les tailles et variantes de SQT
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte

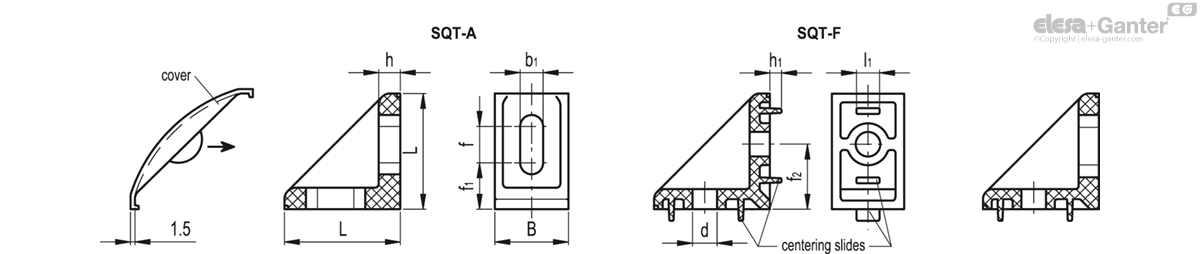

Fiche technique
Caractéristiques techniques
- Code
- 156111
- L
- 40
- B
- 18.5
- h
- 7
- b1
- 8.5
- f
- 13
- f1
- 14.5
- C#
[Nm] - 5
- 15
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, grey colour similar to RAL 7046, matte finish.
Standard executions
- SQT-A: with two slots for M8 screws.
- SQT-F: with two holes for M8 screws and centering slides.
- SQT-AF: with slot and hole for M8 screws and centering slides. In case of assembly with the screws in the slots, we suggest you use screws type UNI 9327.
In case of assembly with the screws in the slots, we suggest you use screws type UNI 9327.
Features and applications

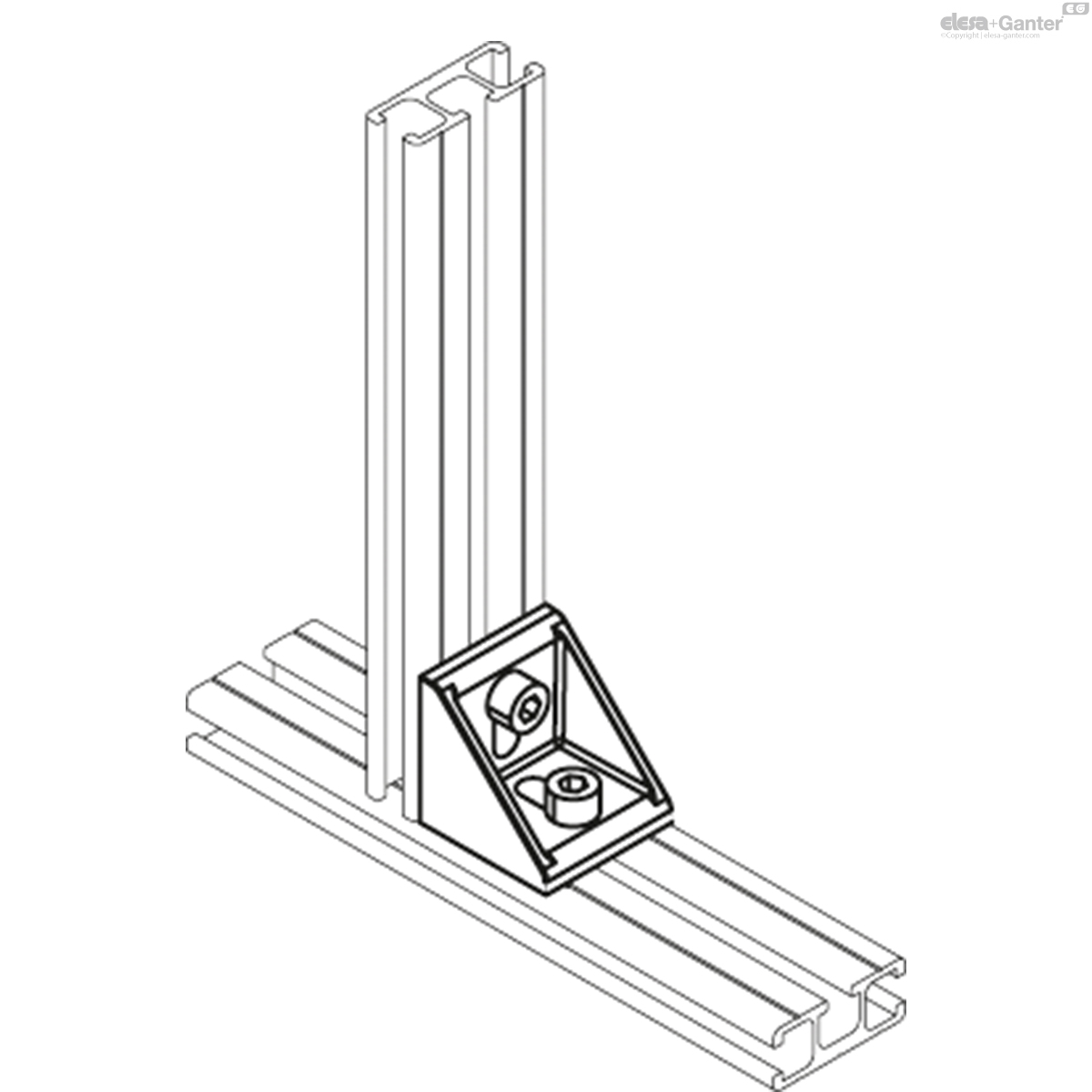

SQT. connecting angles are particularly suitable for the assembly, in a very easy way, of structures made out of aluminium profiles for safety protections of machines and equipment.
The shape, the sections and the material used guarantee high mechanical characteristics of rigidity, dimensional stability and high resistance to temperature.
Technical data

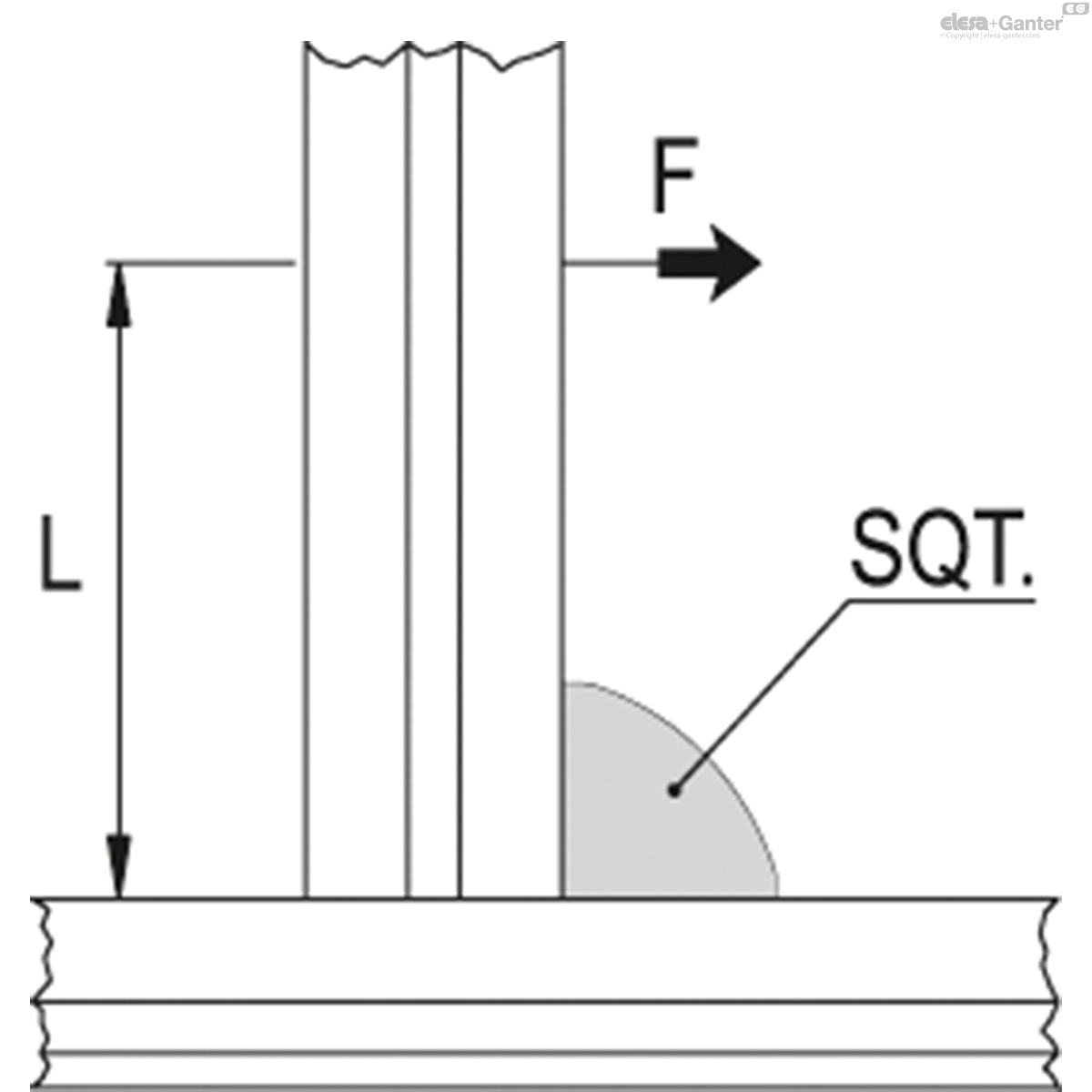

For the correct use, the stresses applied to the angles must satisfy the conditions indicated hereunder.
| Description | F [N] | F·L [Nm] |
| SQT.40-18 | < 600 | < 25 |
| SQT.40-25 | < 700 | < 30 |
| SQT.43-43 | < 750 | < 35 |
Accessories on request
Polyester based (PBT) technopolymer covers series CO.SQT, grey colour similar to RAL 7046, semi-glossy finish, in order to avoid any deposit of dirt and dust inside the angles.
